Bluesound
Bluessound HUB Wireless Audio Source Adaptor
Choose options
Streaming audio is more flexible than ever with the HUB. Turn any wired audio device into a multi-room player by adding a HUB to transmit music to one or many Bluesound players around the home, wirelessly.
This means you can now stream virtually any audio source, anywhere.
FEATURES
-
Connect Wired Audio Sources to Bluesound Ecosystem:Connect any wired audio source to the HUB to bring it into your Bluesound ecosystem.
-
Stream CD and Vinyl Collections Wirelessly:Stream your CD and vinyl collections anywhere in the house without being limited by wires or proximity.
-
High-Quality Phono Stage for Vinyl Playback:Low noise, wide-band moving magnet phono stage acts as a network turntable preamp for hi-res playback of vinyl.
-
Enhance TV Sound with Bluesound Pulse Speakers:Use the HUB with a pair of Bluesound Pulse speakers to upgrade your TV sound
-
Five Input Options:Enjoy five input options: HDMI eARC, Coaxial, Digital Optical, Stereo Analog and a moving magnet Phono stage to support your music devices.
-
Simultaneous Playback of Analog and Digital Streams:Play one analog and one digital stream simultaneously to different Bluesound or BluOS players.
-
Convenient Source Selection with BluOS App:Easily choose any HUB input as the audio source for your Bluesound player with the BluOS app.
-
Dual-Band Wi-Fi or Gigabit Ethernet Connectivity:Connect to the network with dual-band Wi-Fi or Gigabit ethernet.
- Universal USB-C Power for Easy Setup:Universal USB-C plug and play power
AUDIO & OPERATING SYSTEM
- Operating System: BluOS
- BluOS Controller Operating System: iOS, Android, Windows, MacOS
- *Control System Integrations: Control4, Crestron, URC, RTI, ELAN, Lutron
- Simutaneous Audio Streams: 2 per HUB, 1 x analog audio input, 1 x digital audio input
- Maximum Number Units: 4x HUB on single network (8 simultaneous streams)
- Native Sampling Rates: up to 192 kHz
- Bit Depth: 16-24
- Signal-to-Noise Ratio: >100 dB (Line input), >80 dB (Phono MM input)
- Distortion: <0.03% 20-20 kHz -1dBFS output
- Frequency Response: 20-20 kHz +/-0.3dB; 50 kHz -3dB
*via software update

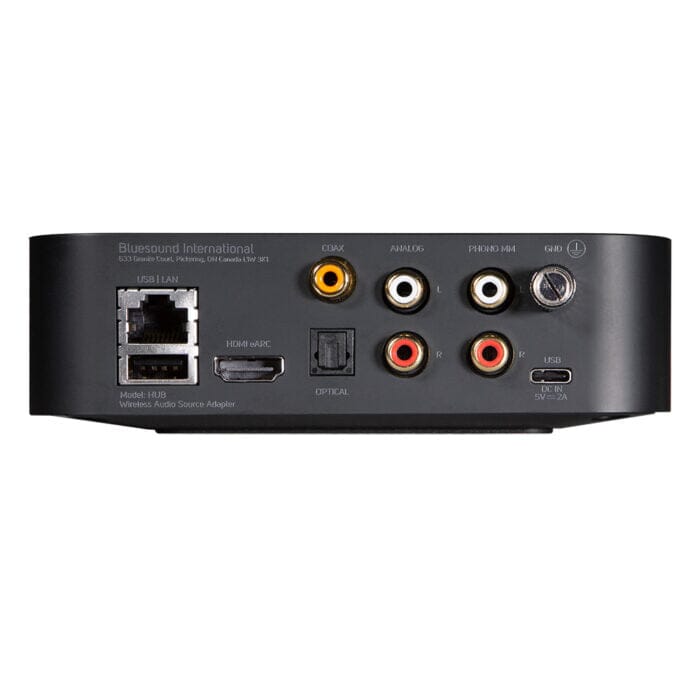

CONNECTIONS
- Power Supply: Universal USB-C Power adapter, (Input:100-240V AC/0.3A Output:5V/2A)
- Ethernet/LAN: Ethernet RJ45, GigE 1000 Mbps
- Wi-Fi Built In: Wi-Fi 5 (802.11ac), 2.4/5GHz
- Analog Line Input: 1 x Stereo RCA
- Phono Input: 1 x Stereo RCA (Moving Magnet)
- Optical Input: 1 x TOSLINK digital optical
- Coaxial Input: 1 x RCA (75 ohms)
- HDMI Input: HDMI eARC with CEC
- USB Input: Type A (for BluOS firmware upgrade only)
- Audio Output: Network
FEATURES
- Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
- Status Indicator: Front Panel LED
- Function Button: Front Panel Function Button
- Power Consumption: 0.5W Network Standby
- Finish: Black; Matte Satin Paint
- Version: CB130
- Product Dimensions: 143 x 153 x 45mm (W x D x H) 5.6 x 6 x 1.8 in (W x D x H)
- Weight: 0.63kg
- 1 x Bluesound HUB
- 1 x 5V Power Adapter
- 1 x 3 x International Plug Adapters
- 1 x USB-C Power Cable
- 1 x Ethernet Cable
- 1 x Mounting Template
- 1 x Safety/Warranty Guide
- 1 x Quick Setup Guide
