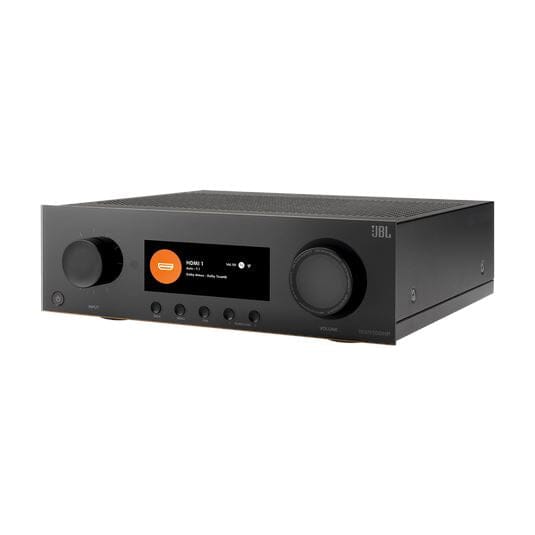

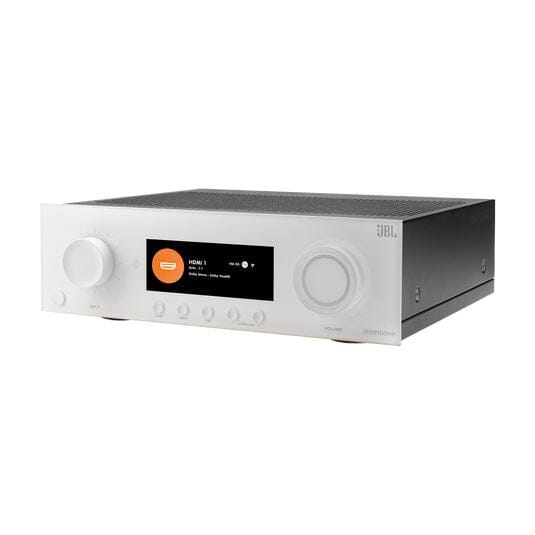

JBL MA9100HP 9.2 Channel 8K High Performance AV Receiver

The JBL MA series AV receivers consist of five models based on a platform of fundamental connectivity with the latest features for video and music, with additional premium features as you move up in the line.

All models feature similar technologies to focus on high performance sound including Class D amplification to power all channels, Dolby and DTS decoding and high resolution 192kHz 24-bit DACs.

With premium audio quality and a focus on ease-of-use, the MA Series models offer the flexibility of a wide range of input sources and listening modes so you can enjoy your content easily and quickly with the fewest number of steps, all from a product with a unique and modern appearance.

Don’t let poor acoustics destroy a great sound experience. The free EZ Set EQ app provides easy-to-use room equalisation for optimised sound quality for all AVR models across the line.

The calibration collects room acoustics data for each speaker group in under 2 minutes and can be done by anyone using an iOS or Android mobile device.

Taking performance to the next level, the MA7100HP and MA9100HP models additionally come “Dirac Live Ready” for automatic room correction assuring audiophile-quality sonics, allowing integrators and power-users to use advanced tools to optimise the system to their personal room acoustics.

FEATURES

• Stunning audio and video performance.
• Intutive setup with a minimalist modern design.
• High-performance immersive surround sound.
• Bring both music and movies to life with true high fidelity.
• Bluetooth and network streaming.
• On-screen setup and operation.
• Powerful amplification.
• Ready for Dirac Live® room correction*.
• EZ Set EQ.

Video Features

• HDMI eARC: Yes
• HDMI Audio Return Channel: Yes
• 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 3 HDR 10+, Dolby Vision: Yes, Yes

Audio Features

• File format: MP3 / MPEG-4 AAC: up to 48 kHz / 320kbps WMA: up to 48 kHz / 192kbps ALAC: up to 192 kHz / 24-bit FLAC: up to 192 kHz / 24-bit PCM / WAV / AIFF: up to192 kHz / 24-bit
• Pure Direct: Yes
• EZ Set EQ: Yes
• DA converter: 192kHz/24-bit
• Channels: 9.2
• Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 140 W RMS
• Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 240 W RMS
• HDMI Input/Output: 6/ 2
• Wi-Fi: Yes (2.4/5GHz)
• Bluetooth receive: Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
• Bluetooth transmit: Yes
• Digital Audio Input: 1 Coax, 1 Optical
• Stereo analog input: 2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground
• Pre-Out (single ended RCA): Stereo Zone 2, Subwoofer 1, Subwoofer 2

Dimension and Weight

• Dimensions incl. feet and speaker terminals (H x W x D): 5.3” x 17.0” x 15.6” (135mm x 432mm x 396mm)
• Weight: 7.6kg

• 1 x IR Remote
• 2 x AAA Batteries
• 1 x Bluetooth Antenna
• 2 x Wi-Fi antenna
• 1 x Power Cord
