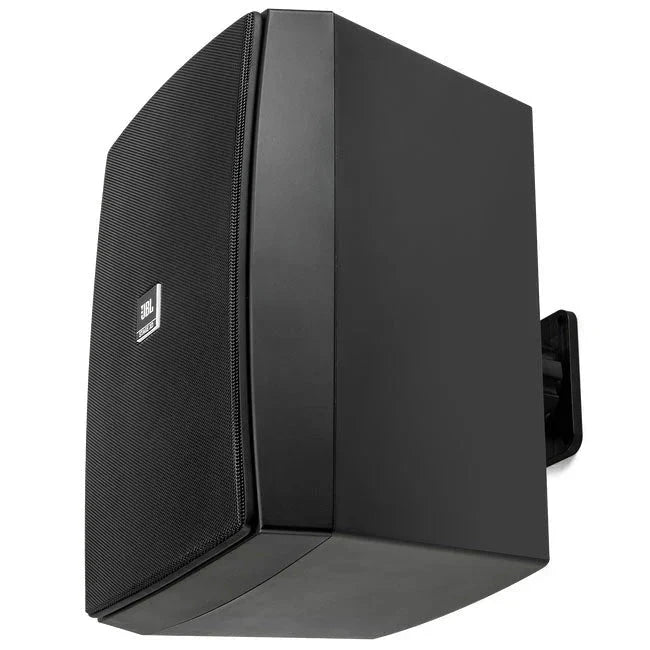

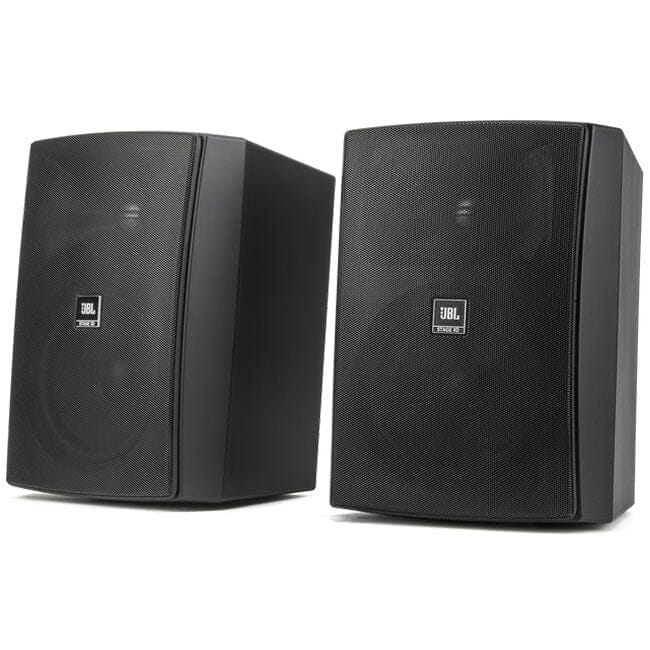

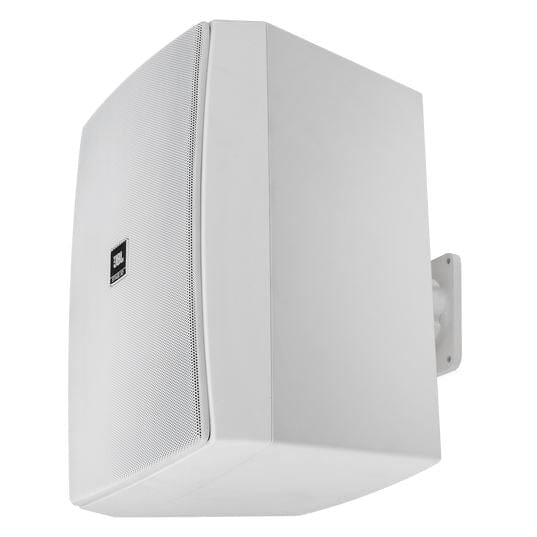

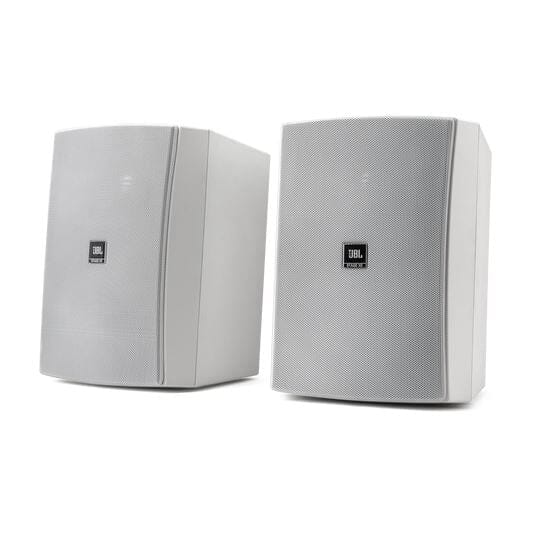

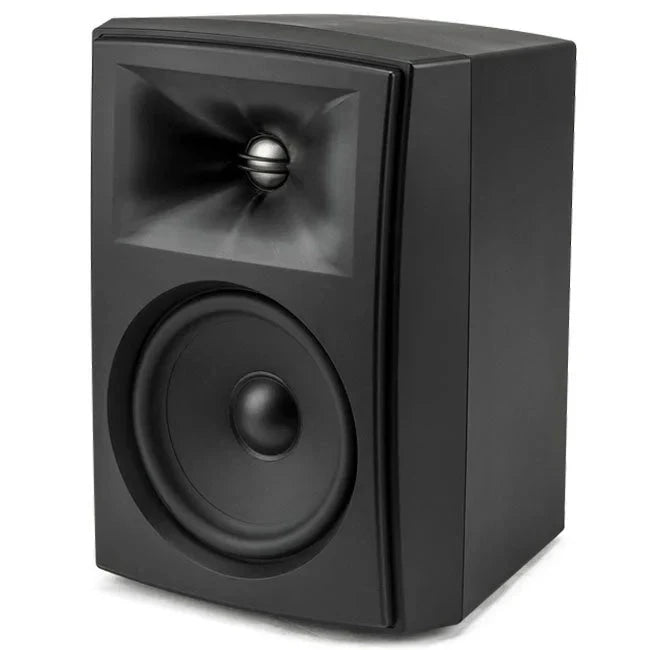

Featuring a 165mm Polypropylene Graphite Filled Cone Woofer and a 1” (25mm) Aluminium tweeter with an acoustic lens and HDI™ waveguide, the Stage XD-5 all-weather speaker is perfect for an outdoor location when protection from the weather is a requirement.
Stylish design and mounting flexibility make it equally at home indoors in a variety of applications.
Elements including acoustic lens tweeters, and patented High-Definition Imaging (HDI) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
FEATURES
- 6.5" Main Driver
- 1" Aluminium Tweeter With HDI Waveguide
- IP67 Waterproof Rating
- Zero Bezel Magnetic Grilles
- Rotatable Logo For Horizontal or Vertical Install
- High Frequency Transducer: 25mm Aluminium dome with High-Definition Imaging (HDITM) waveguide
- Low Frequency Transducer: 6.165mm Polycellulose cone woofer
- Nominal Impedance: 4 ohms
- Sensitivity (2.83V@1m): 88dB
- Recommended Amplifier Power: 20-100W RMS
- Frequency Response (-6dB On-Axis): 55Hz-25kHz
- Crossover Frequency: 2500K
- Dimensions HxWxD: H: 8.7 (222mm) x W: 11.8 (299mm) x D: 7.6 (194mm)
- Wall Mount Length: H: 2.8 (71mm)
- 2 x 6.5" Outdoor Speakers
- 2 x Zero Bezel Grille
- 4 x Rubber Feet
- 1 x Grille Removal Tool
- 2 x Wall Installation Kit (Mounting Bracket)
- 1 x Quick Start Guide
