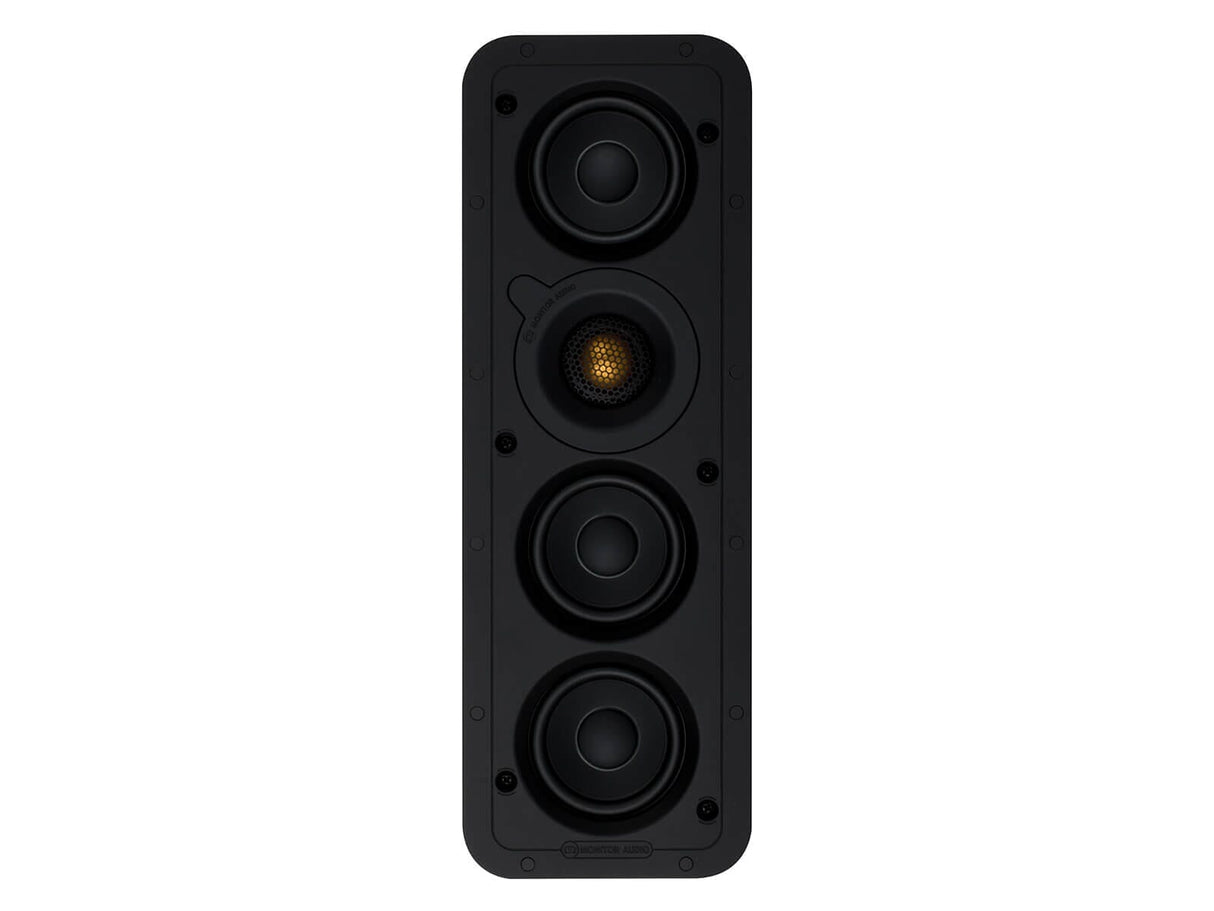

Monitor Audio WSS230 Super Slim In Wall Speaker (Each)
This product is available, but cannot be bought directly online. Please contact us to place an order.
Choose options
This product is available, but cannot be bought directly online. Please contact us to place an order.
This product is available, but cannot be bought directly online. Please contact us to place an order.
The Monitor Audio WSS230 design brings with it our renowned C-CAM metal cone drivers, resulting in added sonic precision and detail.
Offering a step-up from the WSS130, this Super Slim in-wall model is one for projects where (even) more critical music reproduction is required.
FEATURES
- Super-slim depth 50mm (2") – designed to fit in 2" stud walls or where space is restricted
- Designed for portrait or landscape installation – fits between standard 14" stud bays
- Elegant, slim profile only 385 x 140mm wide

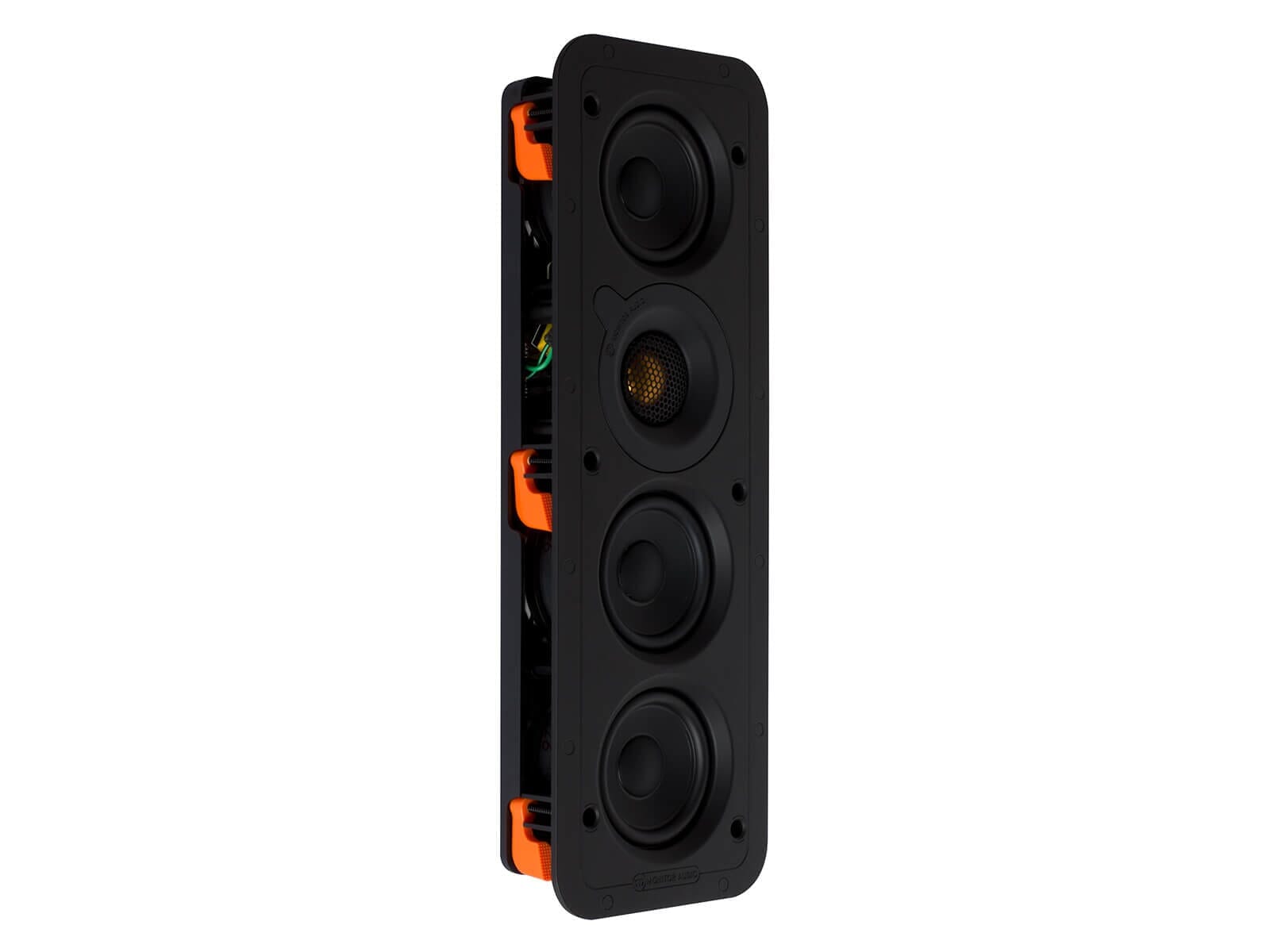

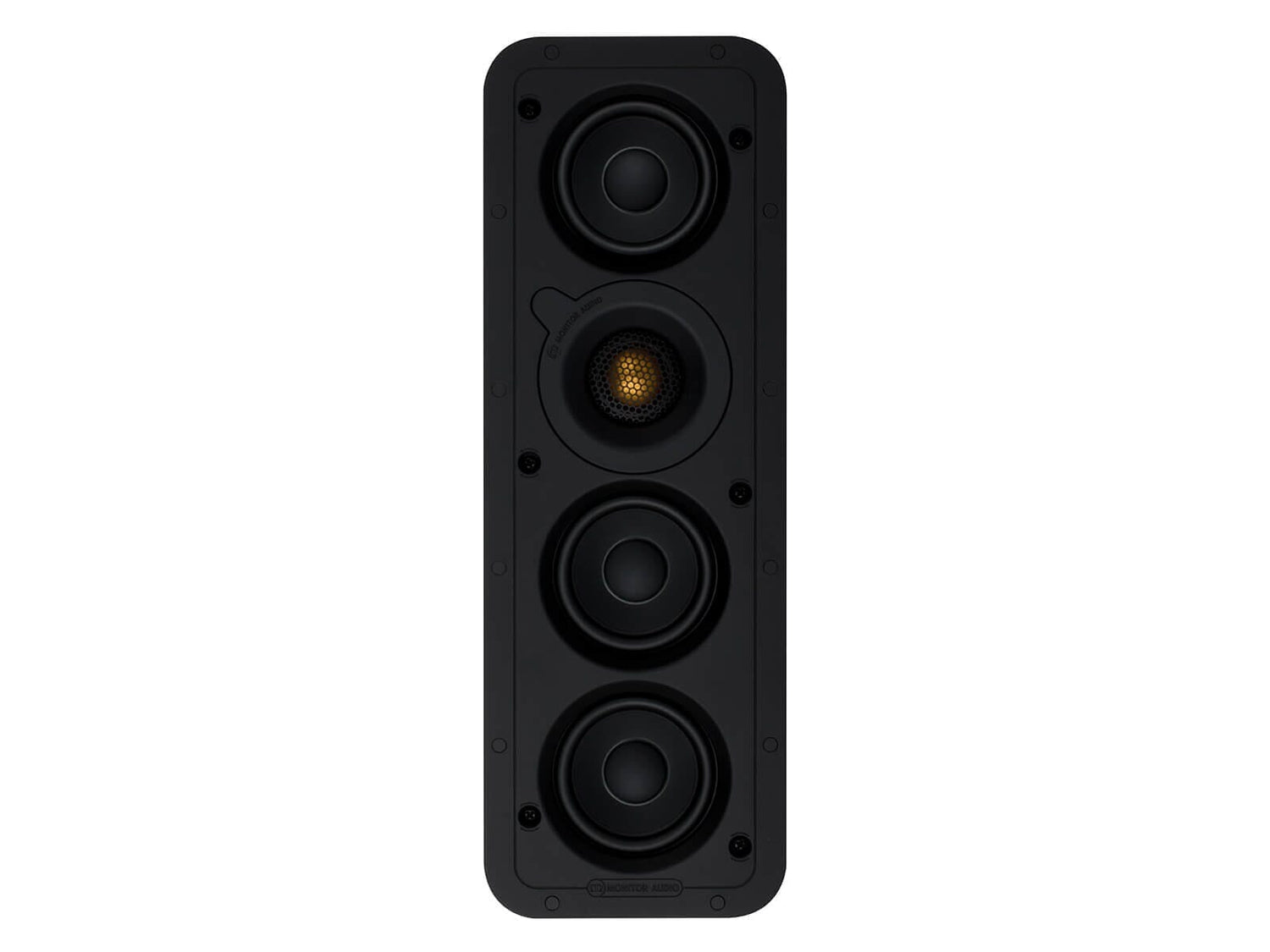

- Three, 3" bass/mid-range drivers featuring incremental technology and performance benefits –MMP II,C-CAMand dished C-CAM cones
- 25mm C-CAM Gold Dome tweeter used on WSS130 and WSS230 models. WSS430 utilisesMPDhigh frequency transducer from Platinum IC model and flagshipPlatinum IIspeaker range
- High quality crossover components – Selected and voiced for amazing sonic performance

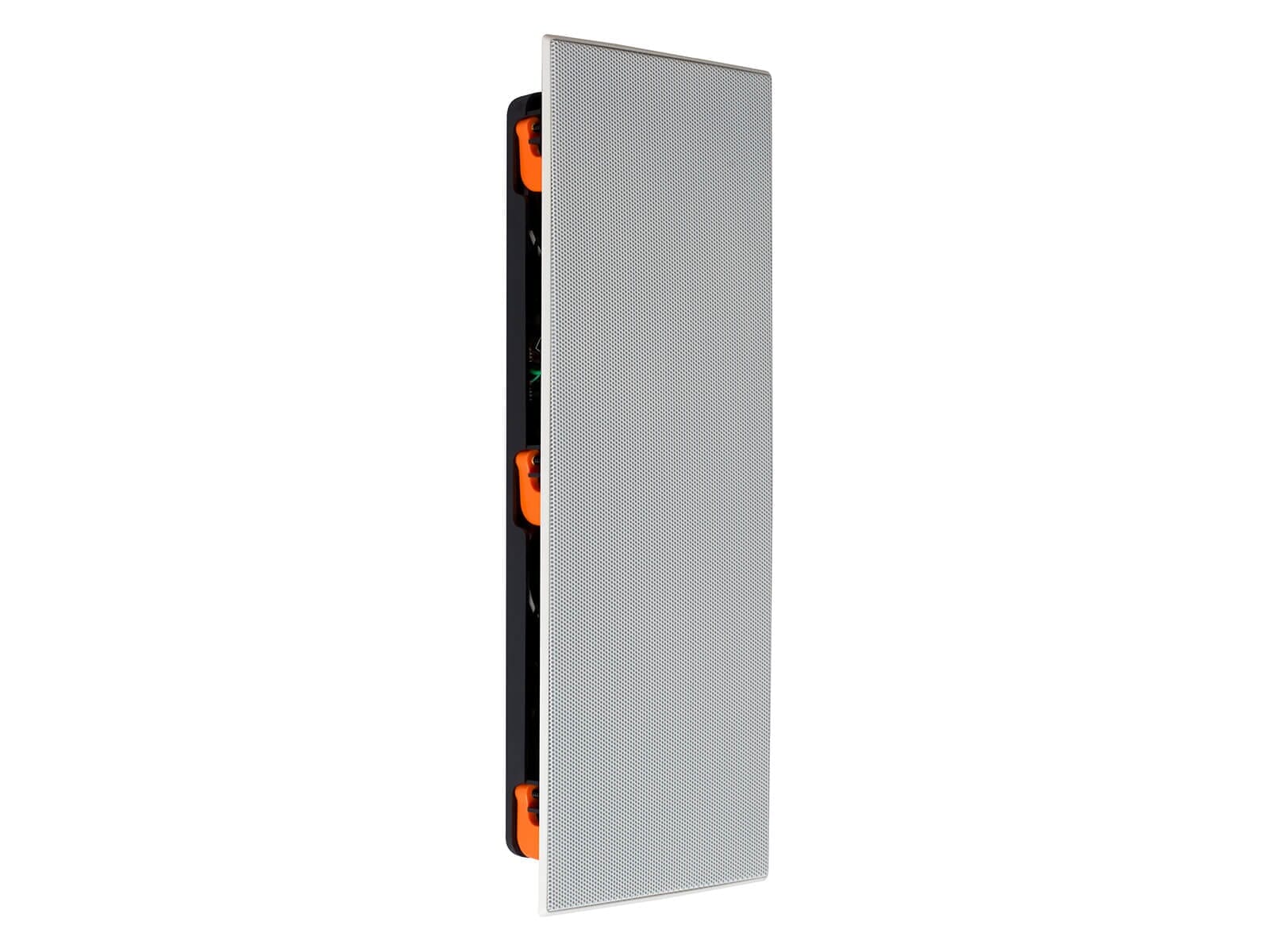

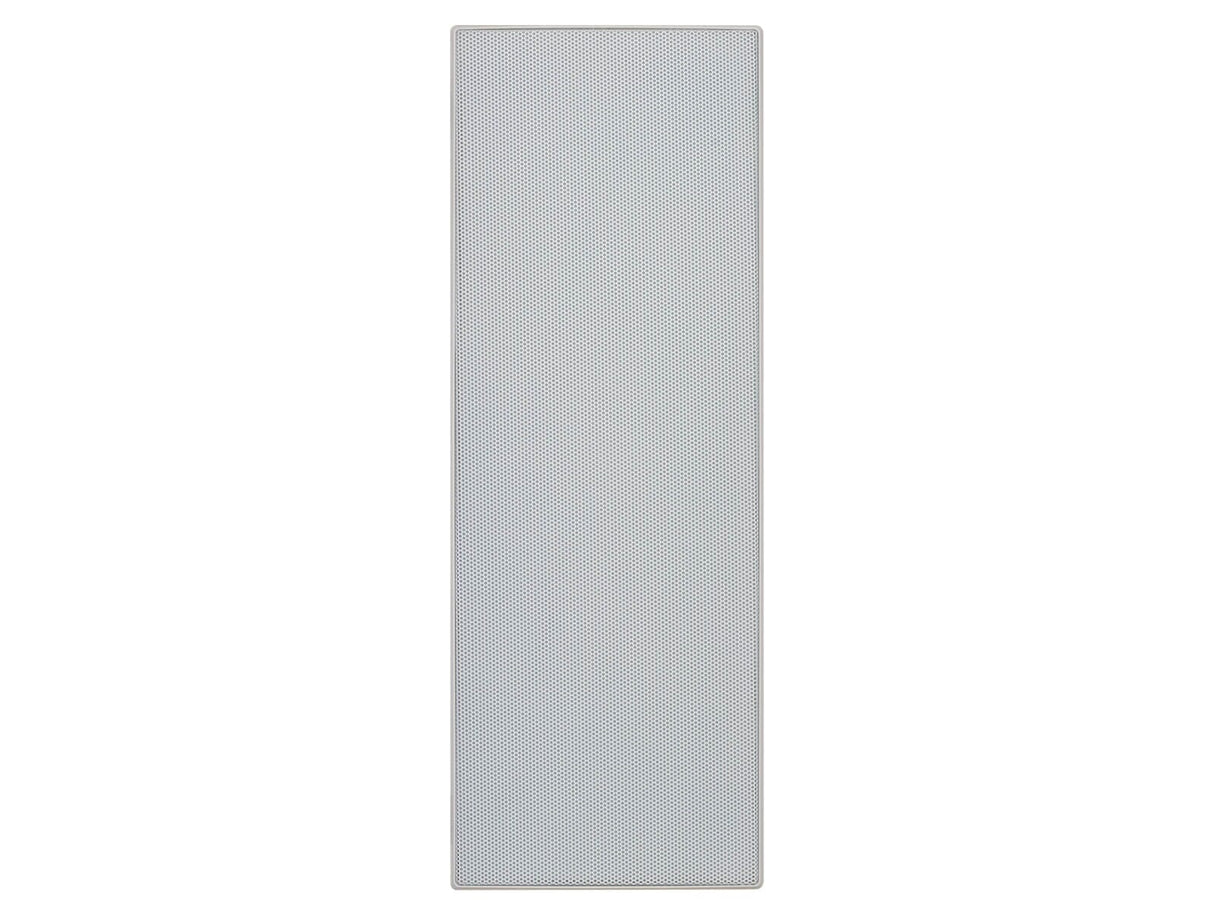

- Magnetically attached ‘trim-less’ grille – discreet, reliable, and easy servicing

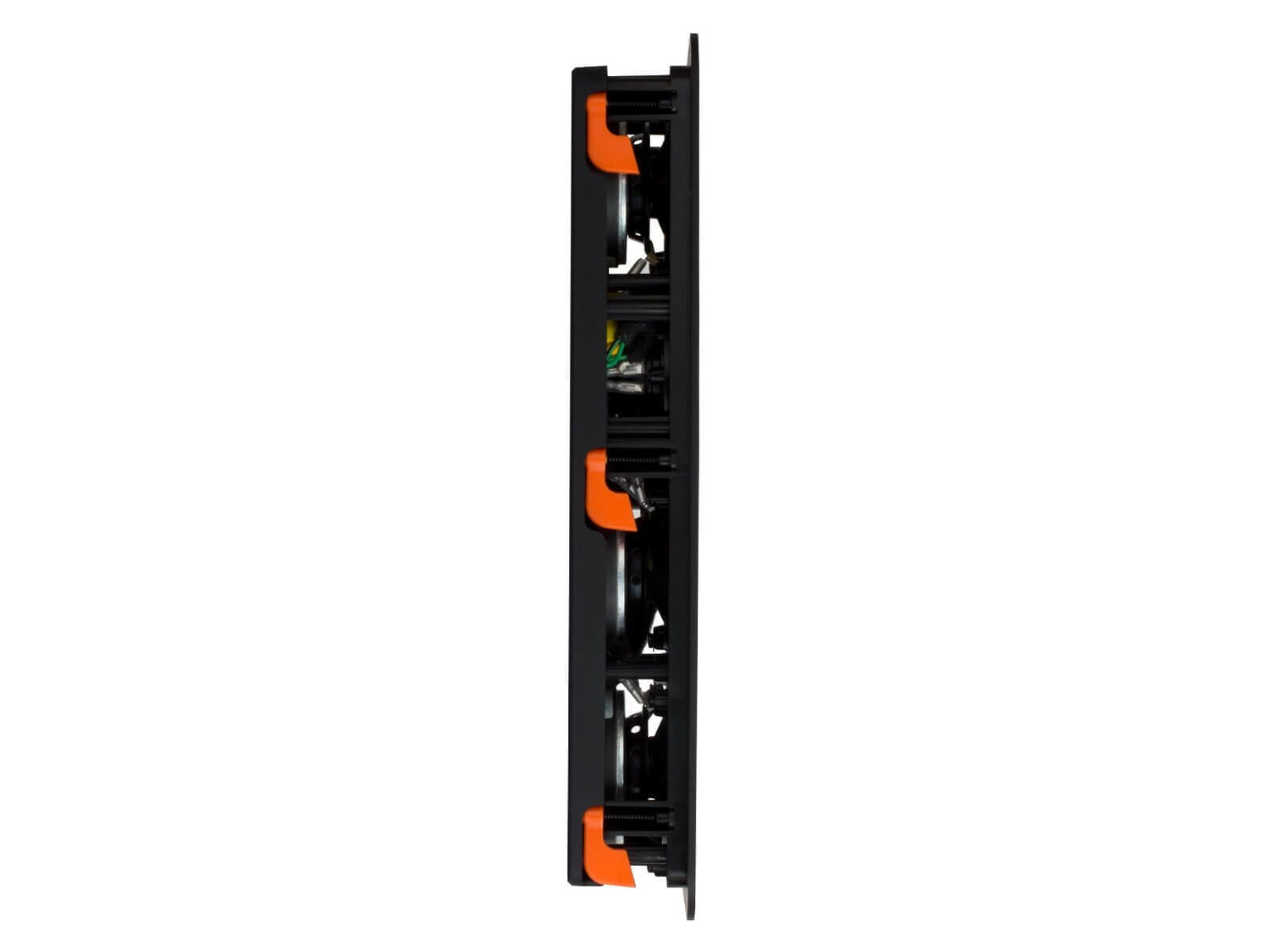

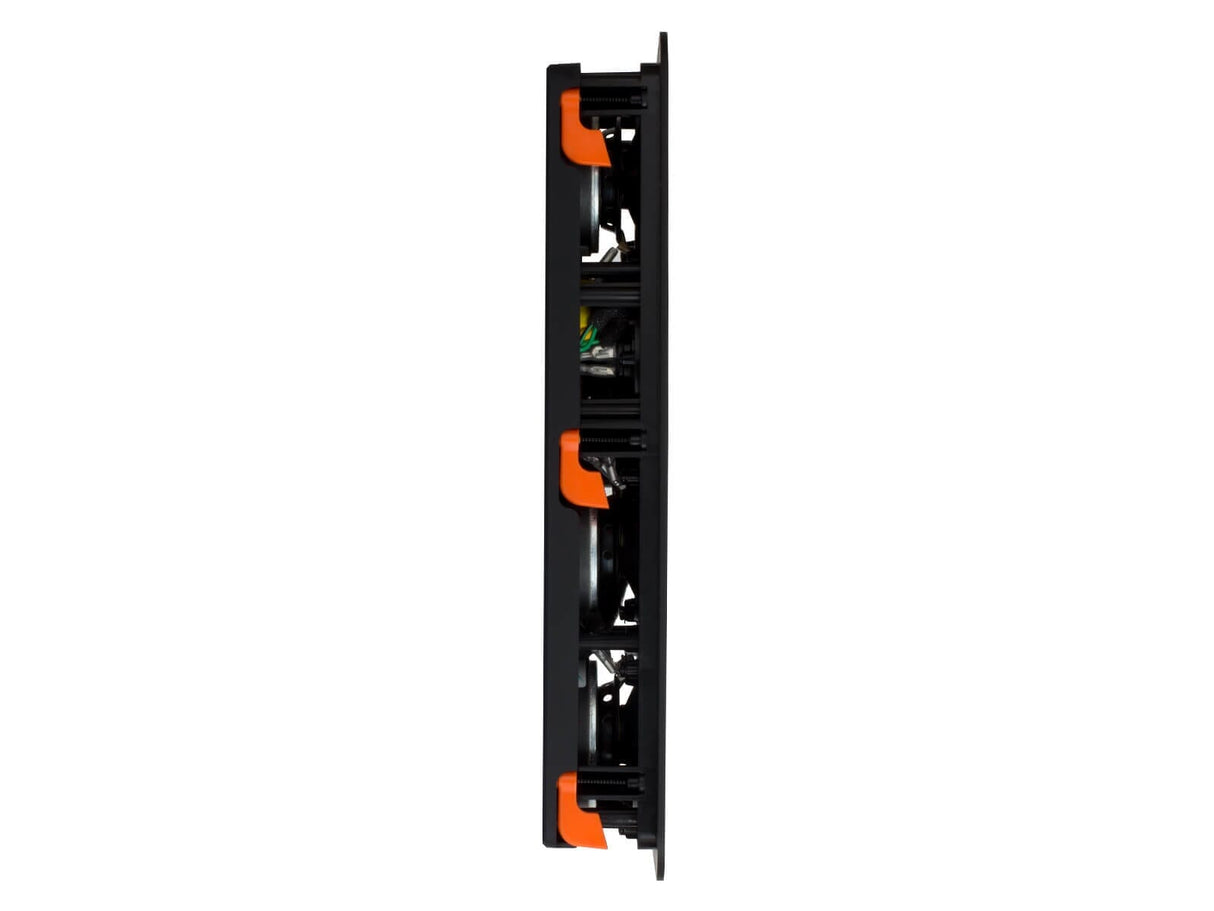

- Tri-GripDog leg fixings – reliable, robust, and quick to install
- Gold plated sprung push terminals – easy to connect and reliable

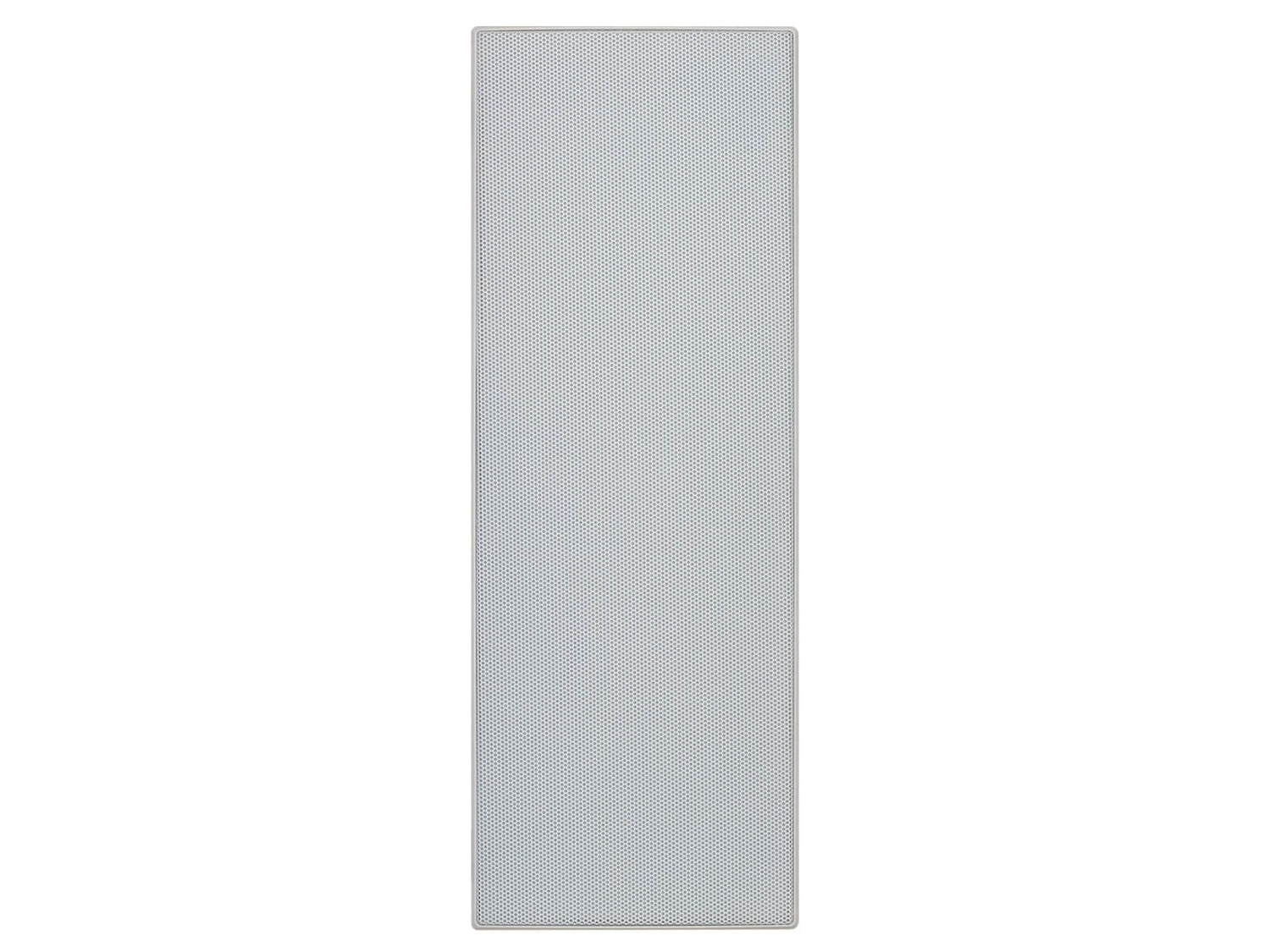

- Paintable grille – to complement and blend with décor
- WSS430 has rotating tweeter for optimum dispersion when used in landscape configuration
- Frequency Response (-6 dB): 75 Hz – 30 kHz
- Sensitivity (1W@1M): 87 dB
- Nominal Impedance: 8 ohms
- Maximum SPL: 105.6 dBA
- Power Handling: 60 W Full Range, 100 W with crossover set to 100 Hz @ 12 dB/Octave
- Recommended Amplifier Requirements: 10 – 100 W
- Drive Unit Complement: 3 x 3" C-CAM cone bass-mid drivers, 1 x 25mm C-CAM Gold Dome tweeter
- Crossover Recommendation (using AVR/Processor): 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
- Overall Dimensions: 385 x 140.5mm
- Overall Depth (Including Grille): 54.25mm
- Cut-Out Dimensions: 346 x 101mm
- Mounting Depth: 50mm
- Connection: Gold-plated sprung push terminals for bare wire connection up to 3 mm²
- Fixing Type: 6-position Tri-Grip dog-leg fixings
- Construction Material: Mineral-filled ABS plastic, RoHS2 compliant; painted steel grille
- Weight: 1.4 kg
- Pre-Construction Bracket: WB3 Pre-Construction Bracket (Dark Blue)
- Sold As: Single unit
- 1 x WSS230 In Wall Speaker
- 1 x White Grille
- 1 x Cut Out Template
- 1 x Instruction Manual
