Q Acoustics E60 4.5" Bluetooth Outdoor Speaker System

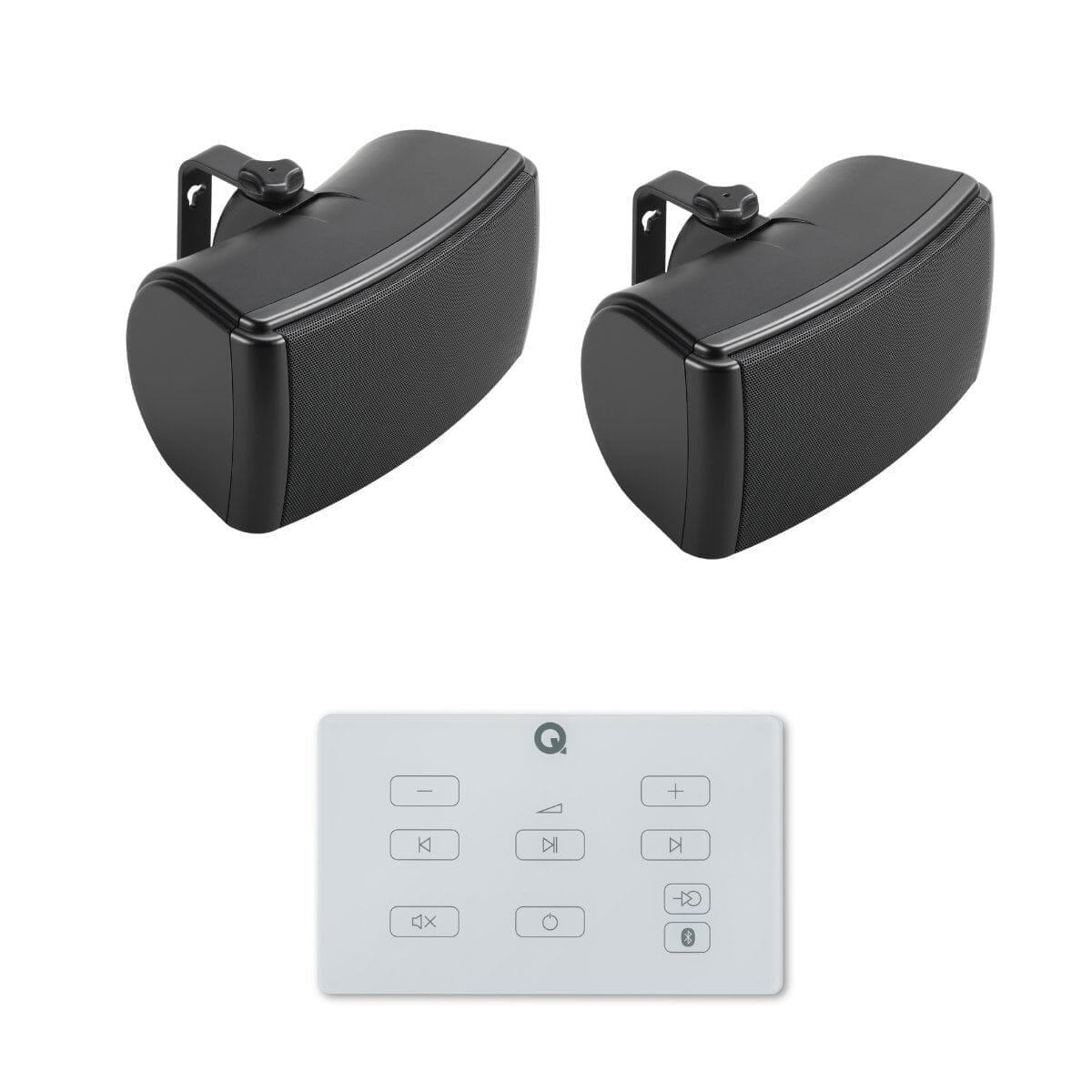

The Q Acoustics E60 4.5" Bluetooth Outdoor Speaker System pairs the discreet E60 in-wall amplifier with a set of Qi45EW weatherproof outdoor speakers.

Designed for patios, garden rooms, terraces and summer houses, this system delivers clear, balanced sound outdoors while keeping the electronics neatly installed inside.

Stream music wirelessly via Bluetooth or connect a TV or external source through the optical input.

With 2 x 25 watts of Class D power and the ability to run in stereo or dual mono, the E60 ensures consistent coverage across outdoor seating and entertaining areas.

FEATURES

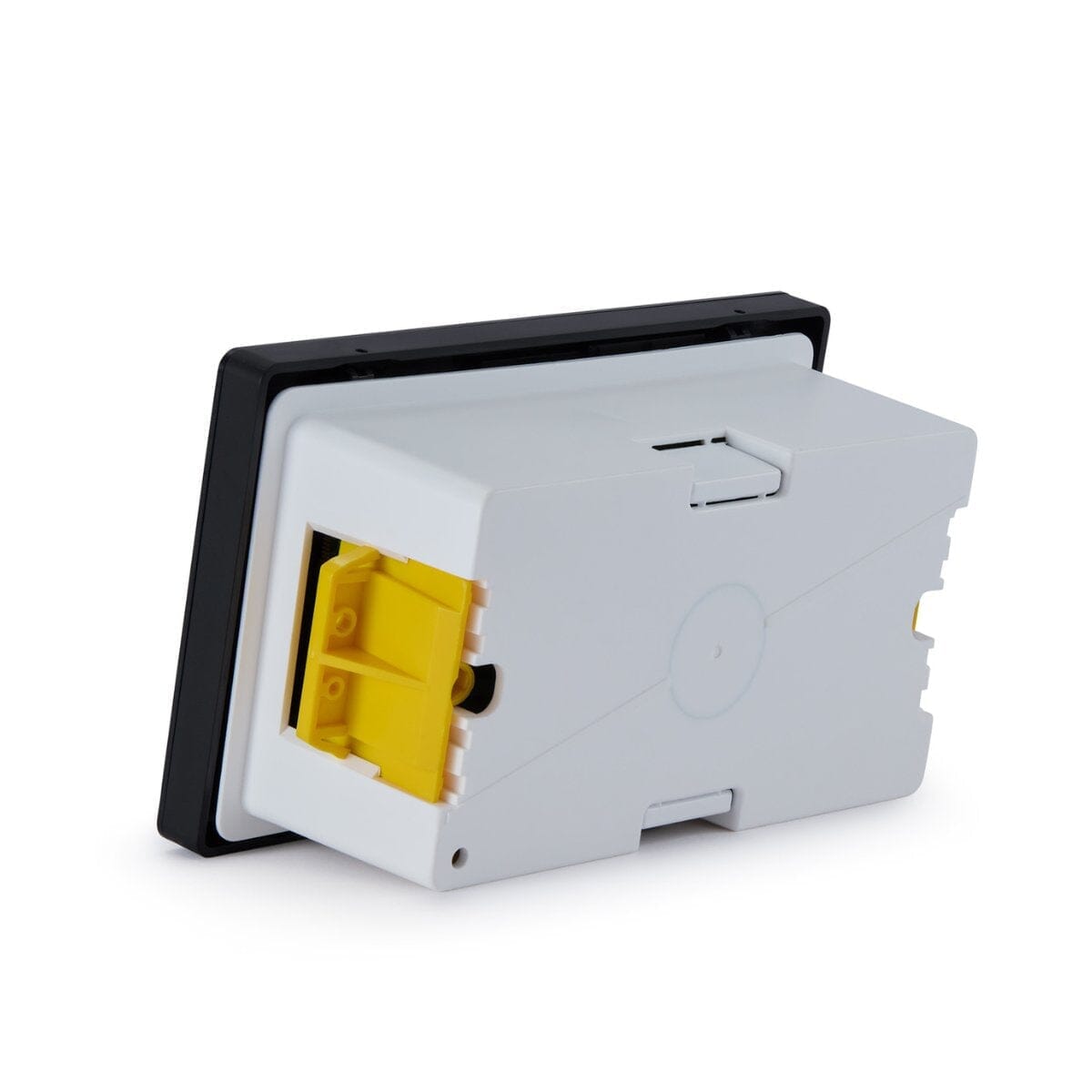

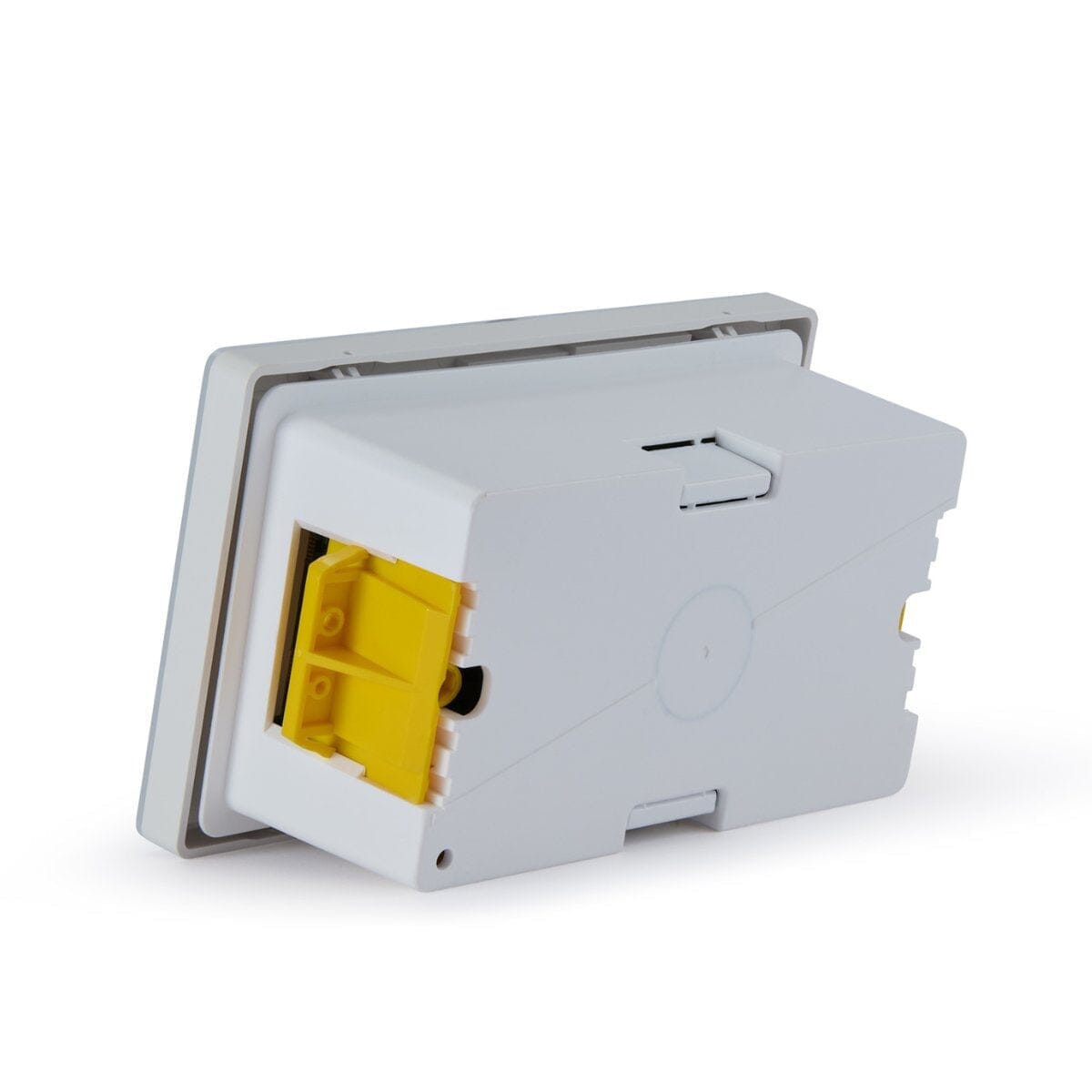

• In-Wall Bluetooth Amplifier: Built-in 2 x 25W Class D amplifier with Bluetooth 5.0 streaming and optical input. Keeps the main electronics indoors while powering your outdoor speakers reliably.
• Qi45EW 4.5" Weatherproof Outdoor Speakers: Compact, durable cabinet speakers designed for exterior use. Built to handle changing weather conditions while delivering clear vocals and controlled bass for outdoor listening.
• Optical Input For TV Or External Sources: Connect to a television, media player or external device via TOSLINK to expand the system beyond Bluetooth streaming.
• Stereo Or Dual Mono Mode: Switchable mono mode allows both speakers to play the same full-range signal. Ideal for even sound distribution across wider patio or garden spaces.
• Analogue Line Output For Expansion: Add a subwoofer or secondary amplifier using the 3mm output if you want to enhance bass or extend coverage further.
• Flexible Mounting Design: Supplied with adjustable brackets for secure wall mounting and easy positioning towards seating or dining areas.

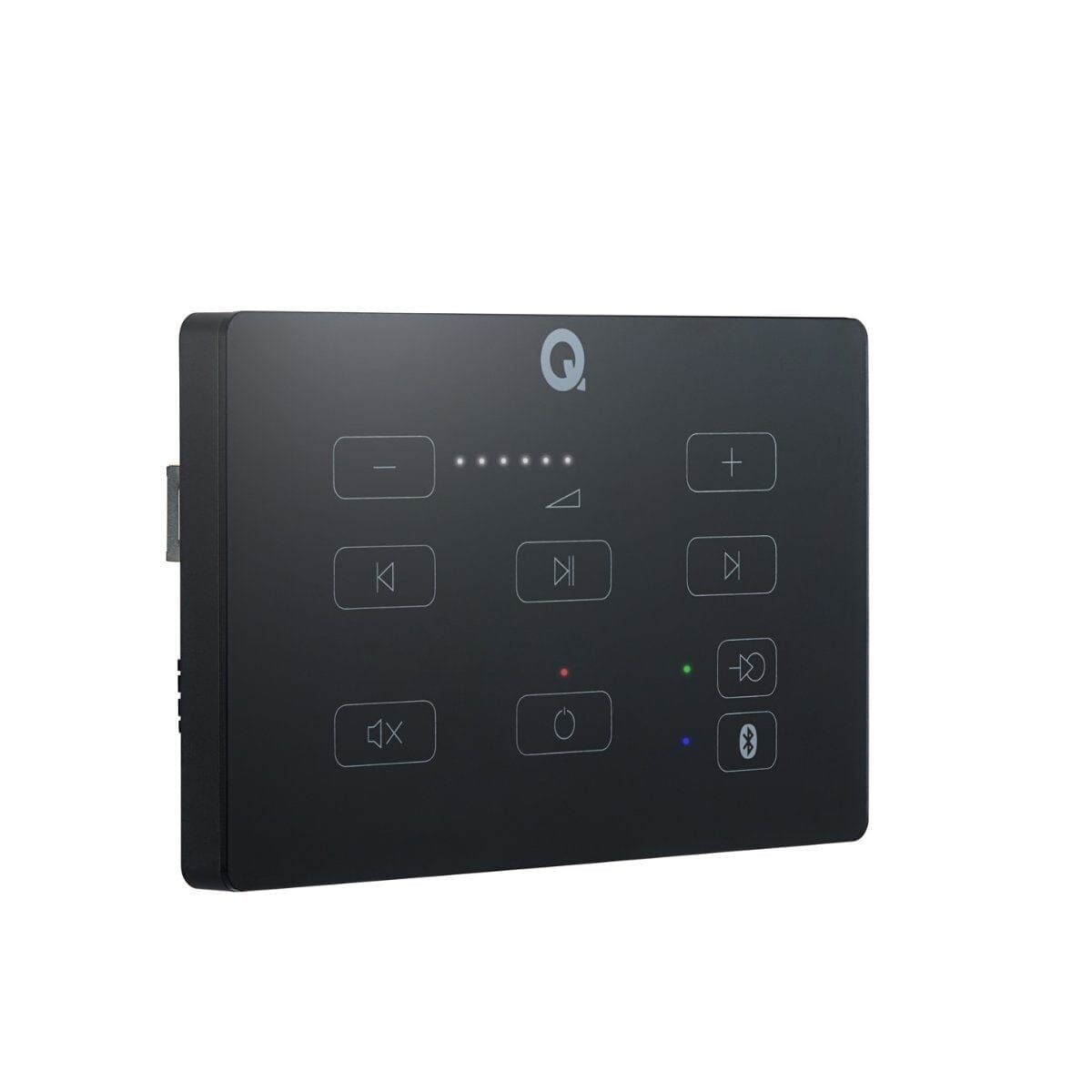

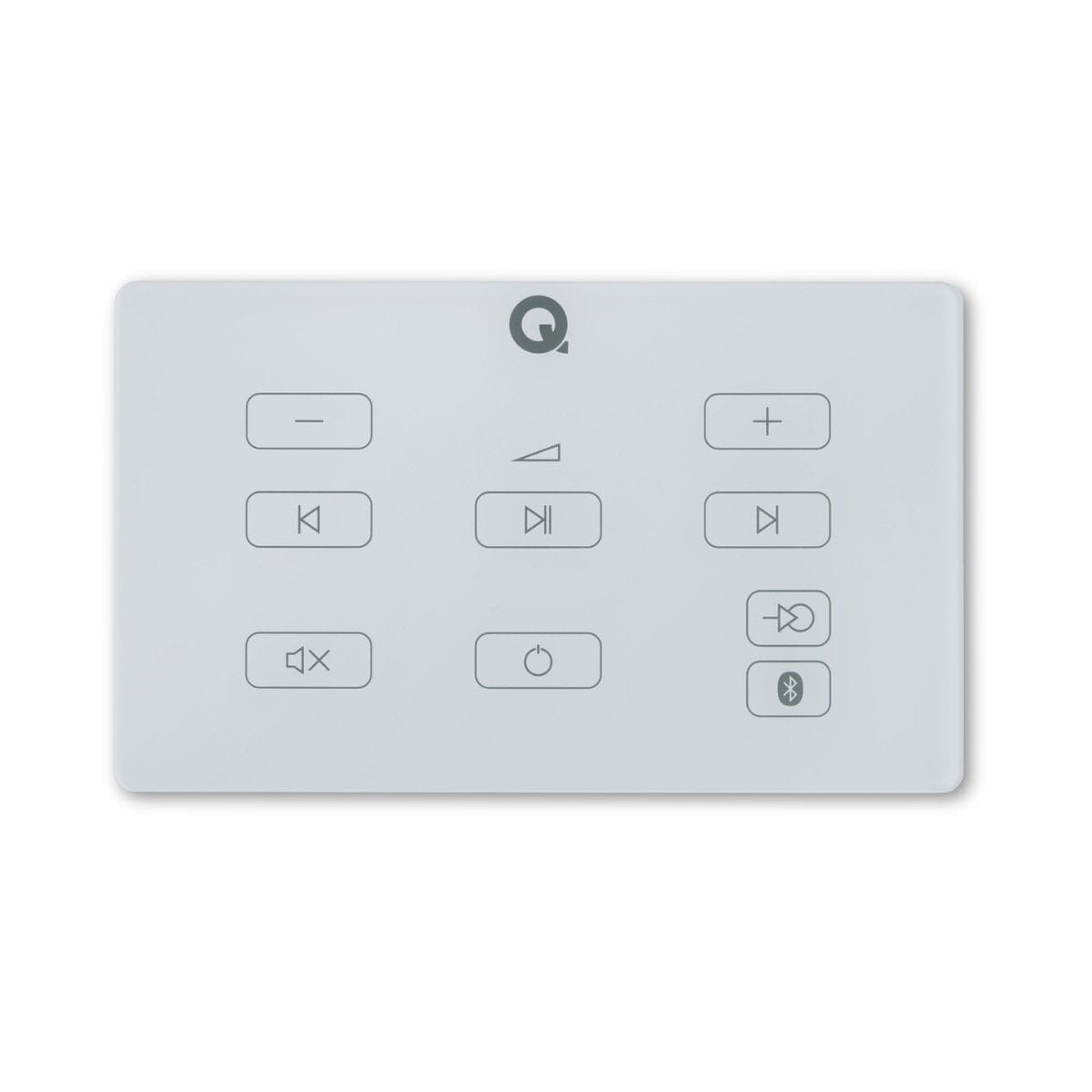

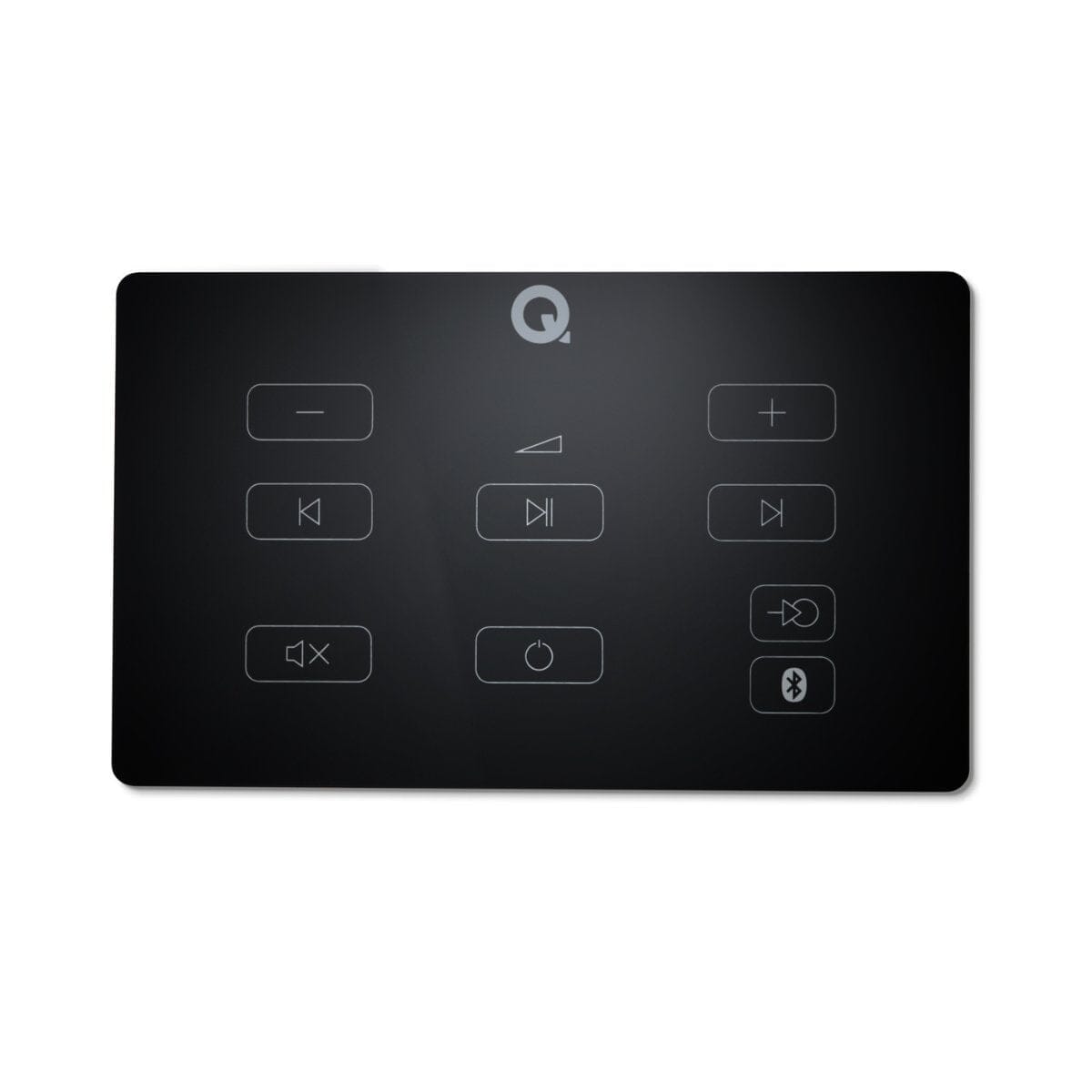

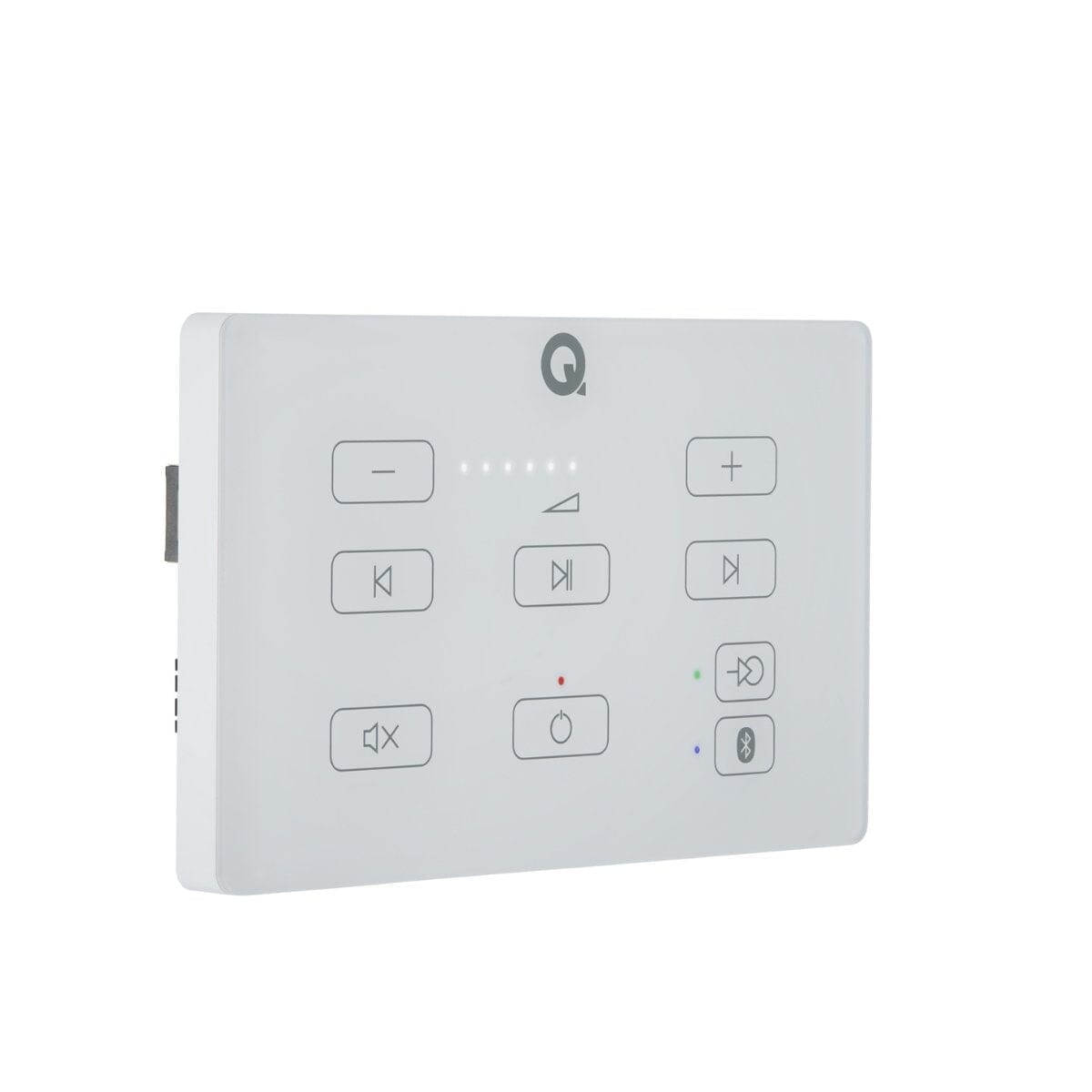

• Touch-Sensitive Glass Controls: Sleek wall panel with responsive touch controls and subtle LED indicators that brighten during use and dim afterwards.

This system offers a practical and reliable way to bring Bluetooth music and TV audio outdoors, combining weatherproof speakers with a clean, professionally installed amplifier solution.

Note that the in wall panel must be installed indoors.

AMPLIFIER

• Audio Sources: Wireless: Bluetooth (BT 5.0, A2DP)
• AUX: Optical TOSLINK, Resolution: 16bit 48kHz
• Speaker Outputs: Left & Right, Stereo or dual mono
• Analogue Line: 3mm stereo, Modes: Fixed or variable, Max level: 670mV
• Amplifier Type: Class D, Continuous power: 2 x 25W @ 6Ω, THD: 0.07% @ 1W, 0.2% @ rated power, SNR: >75dB @ rated power, Frequency response: 20Hz - 20kHz +/- 1dB
• Ratings: E60 wall panel: IP54
• Control: Touch sensitive buttons: x9, BT AVRCP v1.6 (play, pause, skip, track)
• Power Supply: Input: 100 - 240V AC 50/60Hz, Output: 22V DC 1.5A, Dimensions (HxWxD): 30mm x 50mm x 115mm
• Power Consumption: Typical: 10W, Standby: <2W
• Wall Panel: Net weight: 1.3kg, Dimensions (HxWxD): 91mm x 151mm x 33mm, Operating ambient temperature: Max. 40ºC
• Speaker Cable: Gauge: 19 AWG, Lengths: 2 x 7m
• DC Extension: Gauge: 16 AWG, Length: 5m, Connectors: 6mm x 2mm DC male, 6mm x 2mm DC female

SPEAKERS

• Tweeter: 0.5" PEI dome
• Sensitivity: 86 dB/1W
• Impedance (nominal) ohms: 8ohm
• Dimensions (w x h x d): 135mm x 245mm x 170mm (inc. bracket)
• Bracket hole spacing: 70mm
• Woofer: 4.5" Polypropylene
• Power handling: 10 W to 50 W
• Frequency response: 85 Hz to 20 kHz
• Warranty: 5 Years

AMPLIFER

• 1 x Amplifier Wall Panel
• 1 x Mounting Frame
• 1 x 5M DC Extension Cable
• 1 x Power Supply

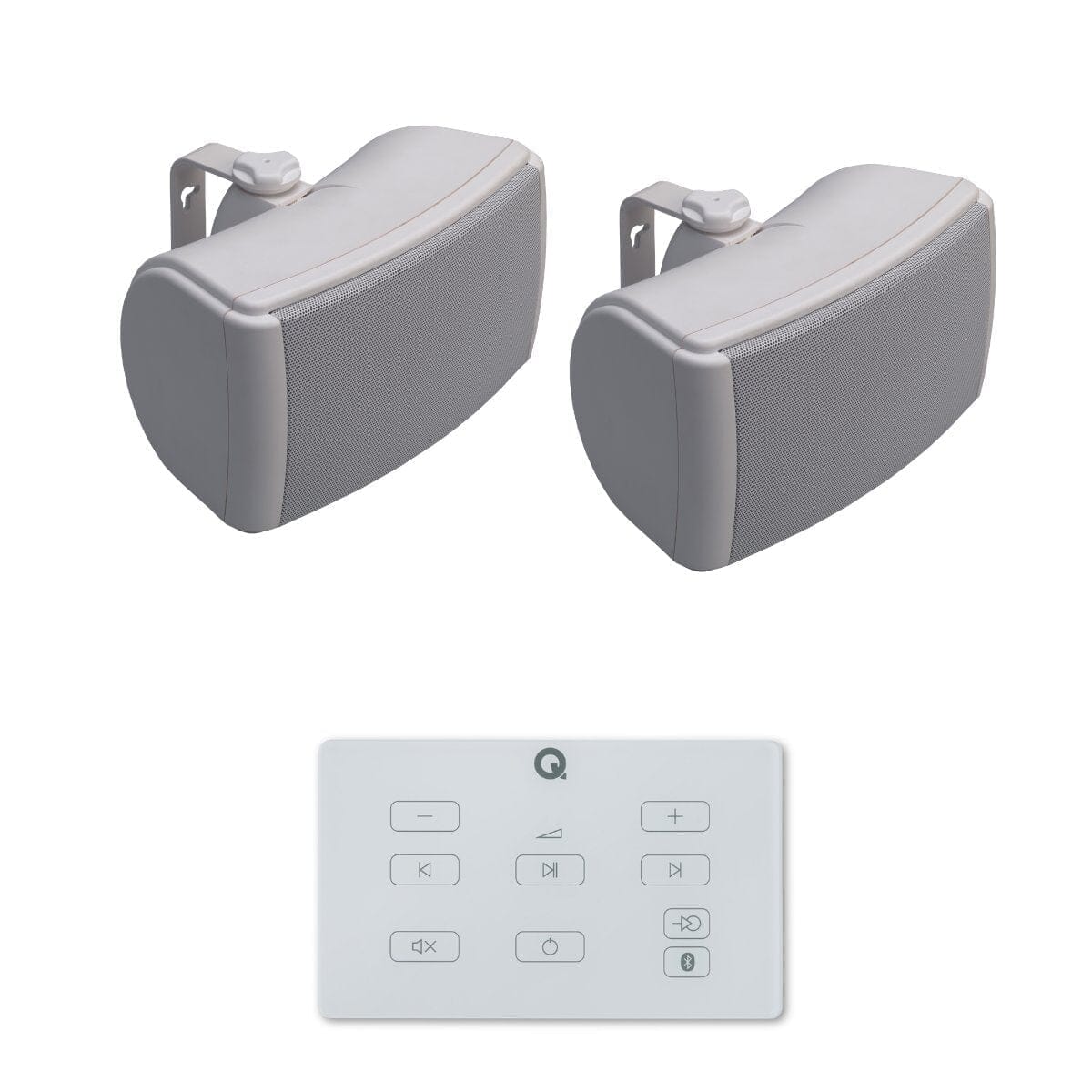

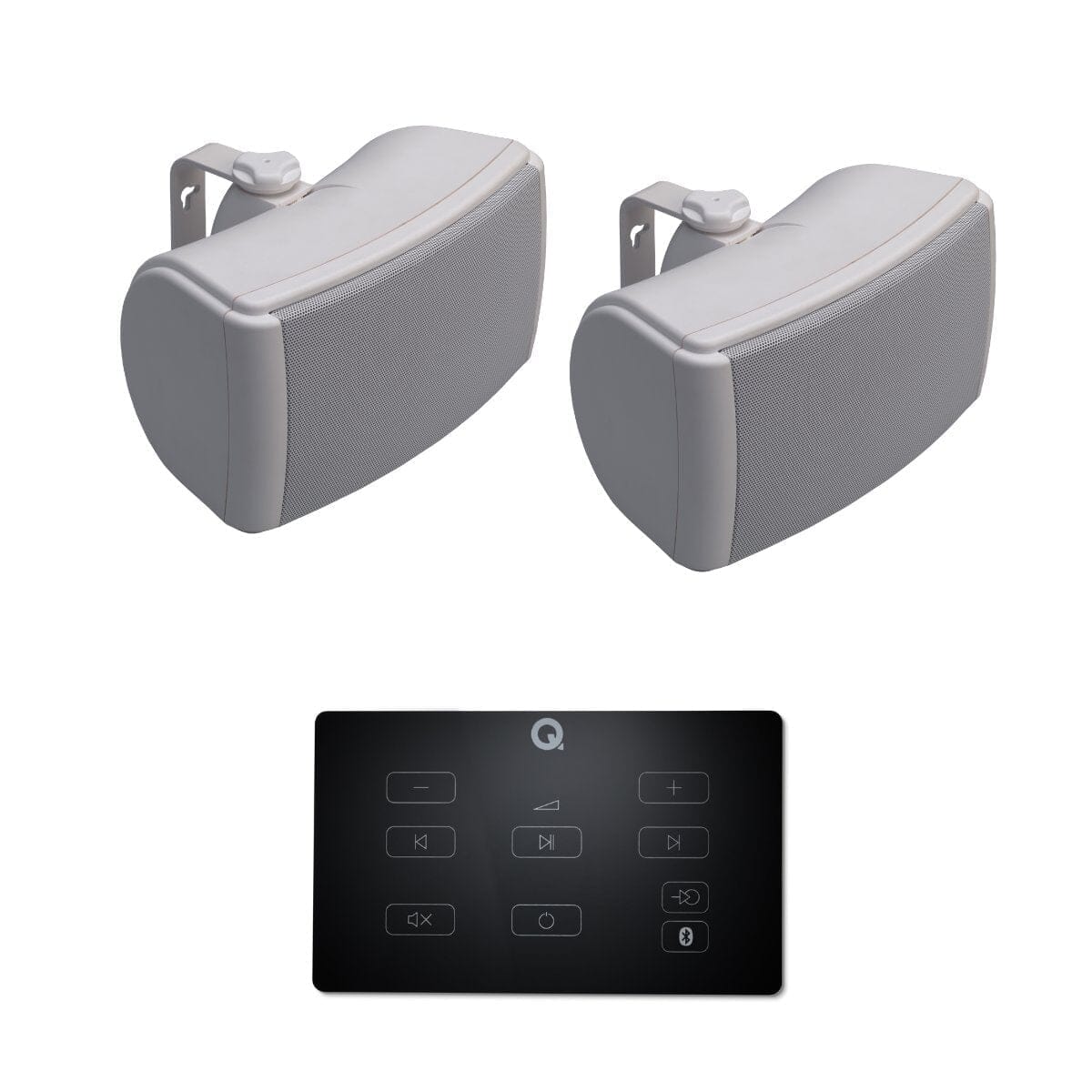

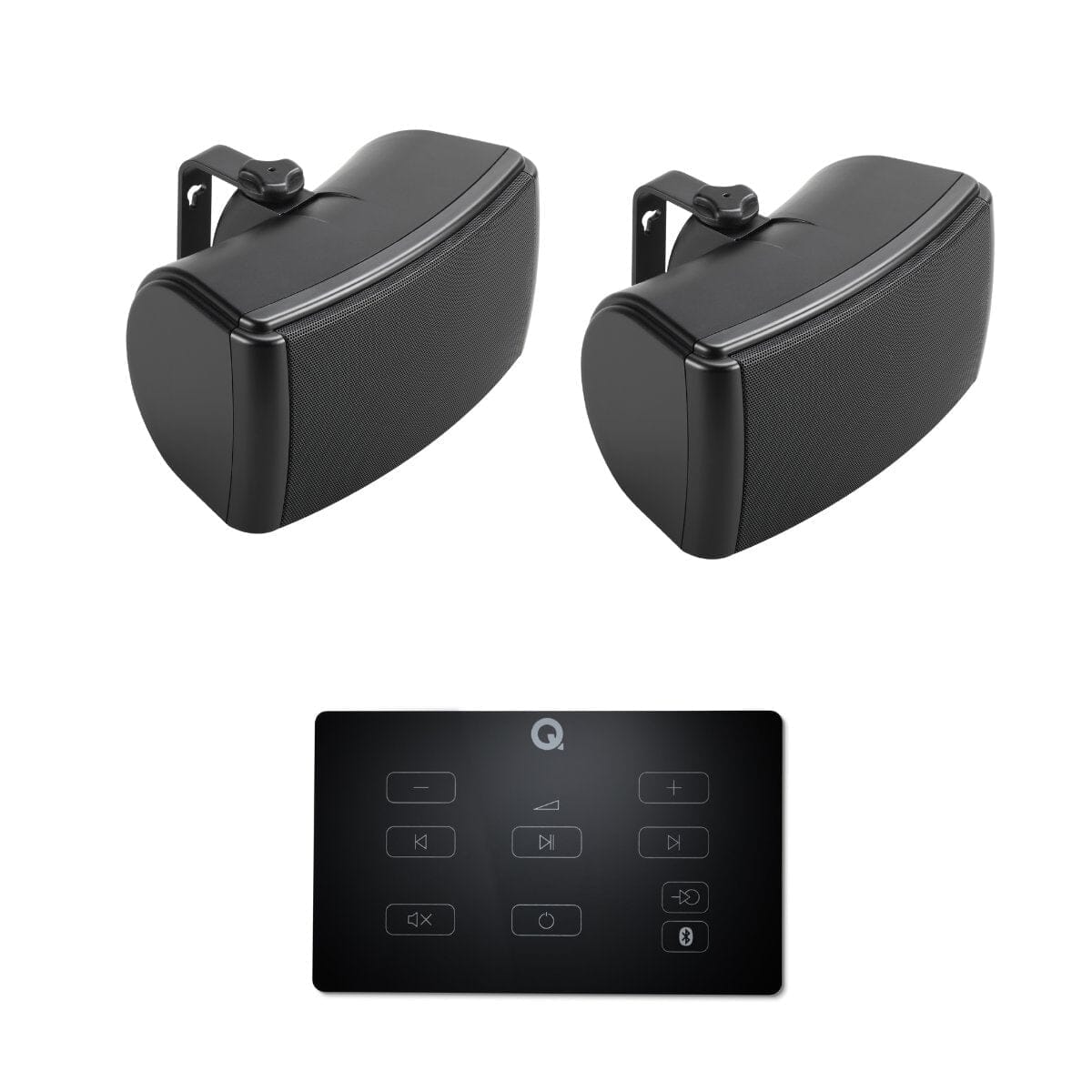

SPEAKERS (ONE PAIR)

• 2 x QI45EW On Wall Speakers
• 2 x Mounting Brackets
• 2 x User Manuals
• 20m x 2 Core Outdoor Speaker Cable

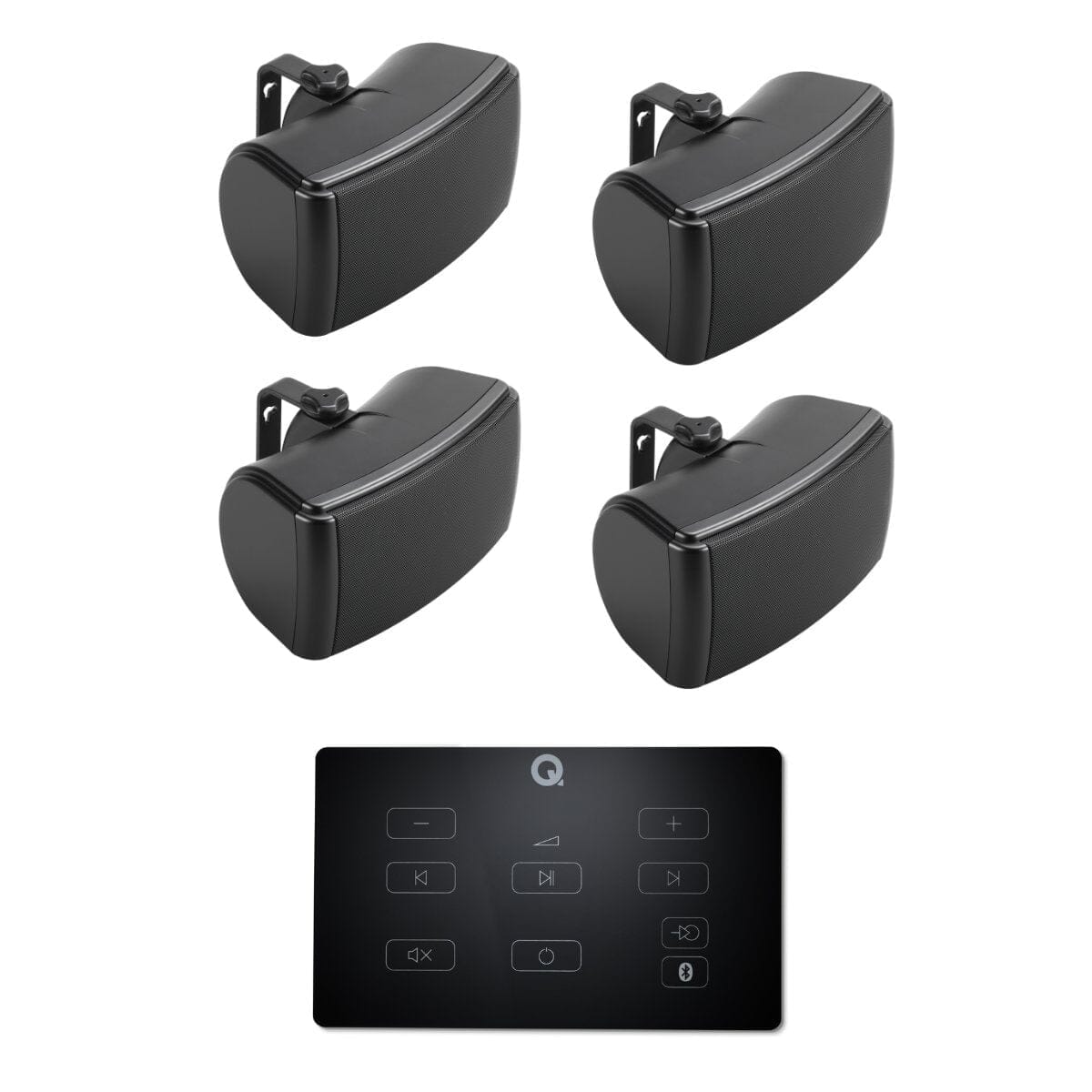

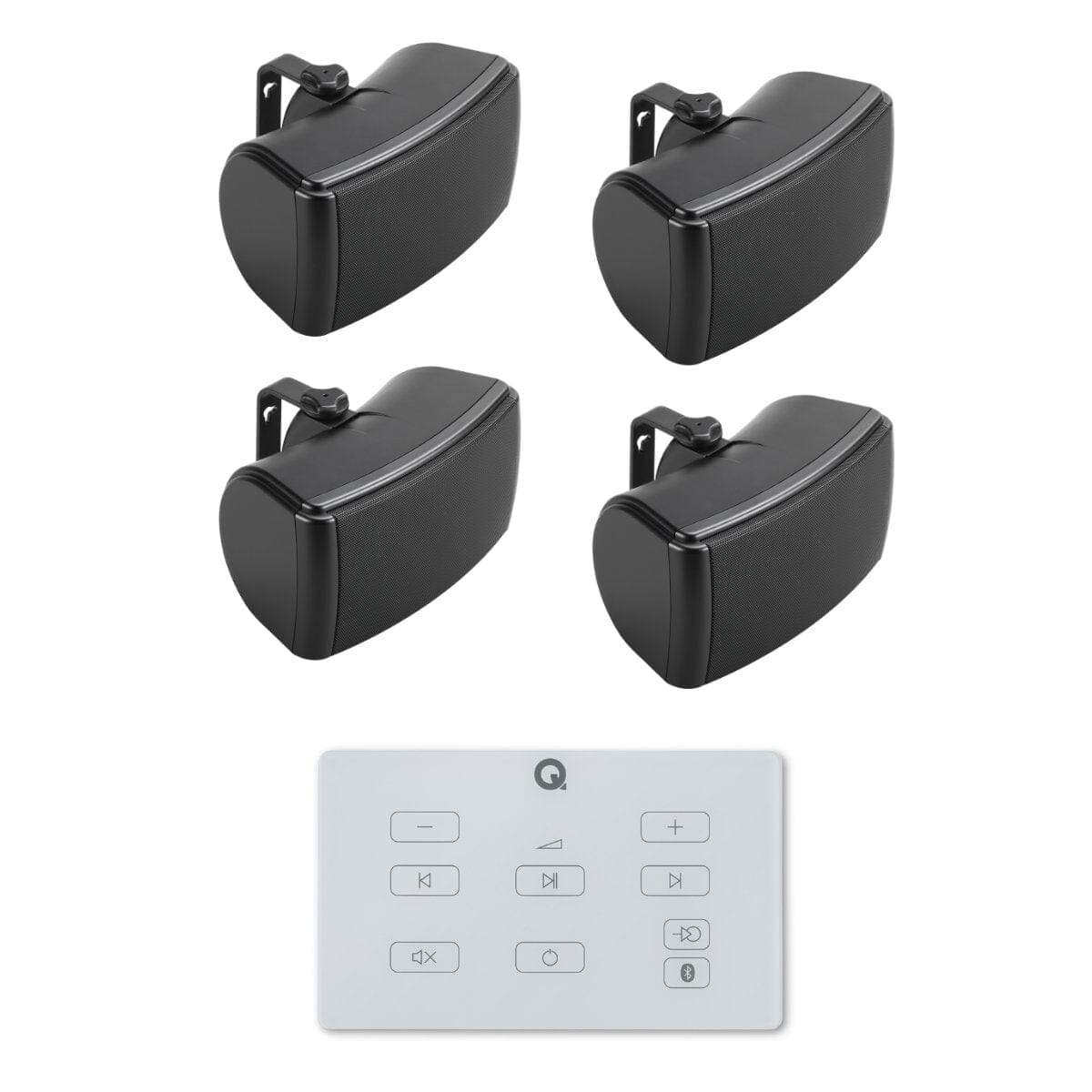

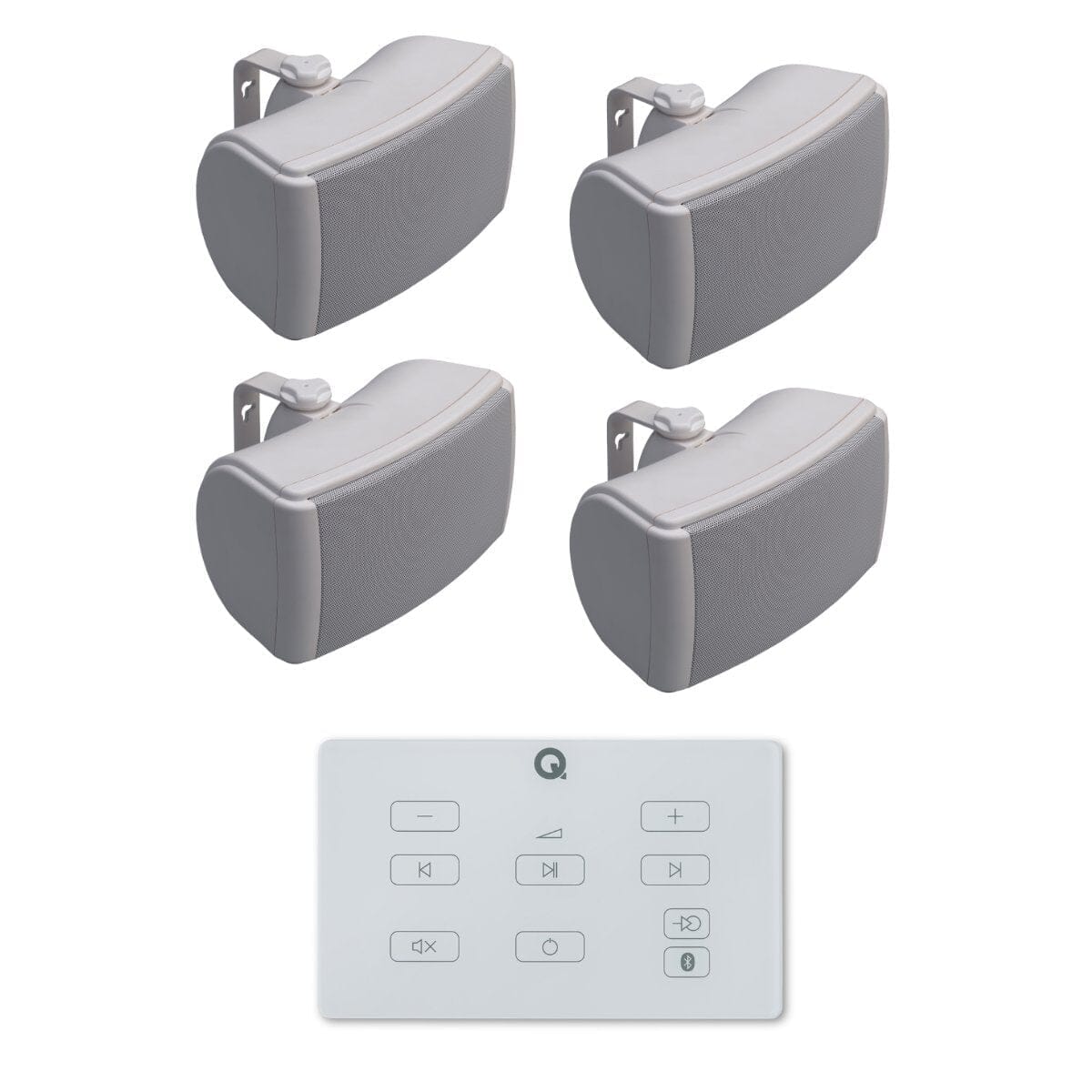

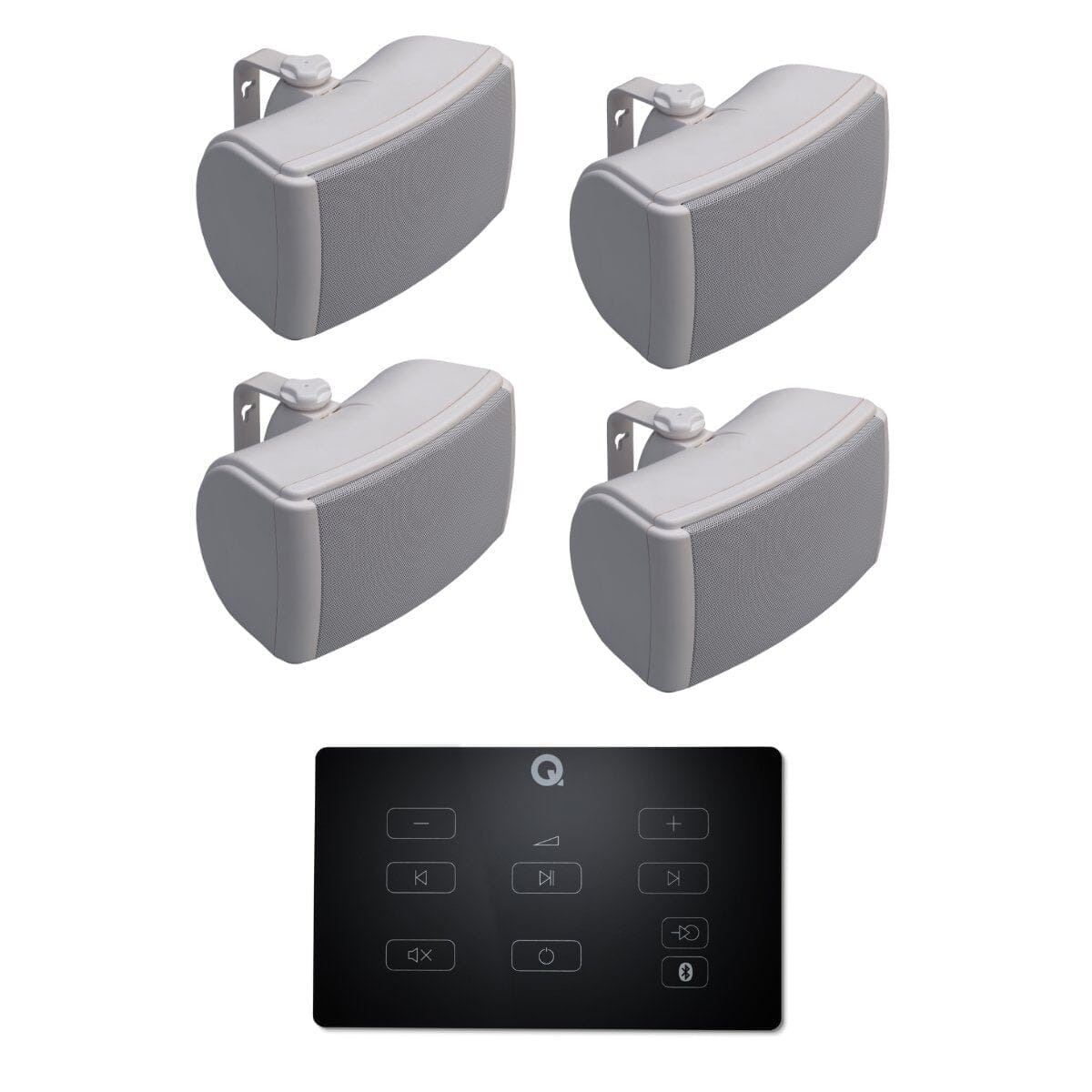

SPEAKERS (TWO PAIRS)

• 4 x QI45EW On Wall Speakers
• 24 x Mounting Brackets
• 4 x User Manuals
• 30m x 2 Core Outdoor Speaker Cable
