Q Acoustics E60 8" Bluetooth Ceiling Speaker System (Two Pairs)
Q Acoustics E60 8" Bluetooth Ceiling Speaker System (Two Pairs)
Black
Lee-On-The-Solent, Hampshire
Unit P1, Pegasus Building
Daedalus Drive
Lee-On-The-Solent PO13 9GX
United Kingdom
Choose options
The Q Acoustics E60 8" Bluetooth Ceiling Speaker System combines the discreet E60 in-wall amplifier with a pair of powerful 8" Qi80C in-ceiling speakers.
Designed for larger rooms and open-plan spaces, this system delivers deeper bass, greater scale and room-filling sound while keeping all equipment neatly integrated into your walls and ceiling.
Stream music wirelessly via Bluetooth or connect your TV through the optical input for enhanced audio performance.
With 2 x 25 watts of Class D power and flexible stereo or dual mono operation, this setup provides consistent, balanced coverage across living rooms, kitchens, extensions and garden rooms.
FEATURES
- In-Wall Bluetooth Amplifier: Built-in 2 x 25W Class D amplifier with Bluetooth 5.0 streaming and optical input. Delivers clean, controlled sound without the need for external hi-fi components.
- Qi80C 8" In-Ceiling Speakers: Larger 8" drivers deliver stronger low-frequency performance and higher output levels compared to smaller ceiling speakers. Ideal for bigger rooms where more scale and presence are required.
- Optical Input For TV Audio: Connect directly to a television via TOSLINK to improve TV sound without adding a soundbar or separate AV system.
- IP54 Splash-Proof Wall Panel: Suitable for bathrooms and kitchens, the touch control panel is resistant to splashes and humidity, offering installation flexibility across multiple rooms.
- Stereo Or Dual Mono Mode: Switchable mono mode allows both speakers to play the same full-range signal. Ideal for open-plan areas where even coverage is more important than stereo separation.
- Analogue Line Output For Expansion: Add a subwoofer or additional amplifier using the 3mm output if you want to increase bass depth or extend the system further.
- Discreet Flush-Fit Ceiling Design: Slim magnetic grilles sit close to the ceiling for a clean, architectural finish that blends seamlessly into modern interiors.

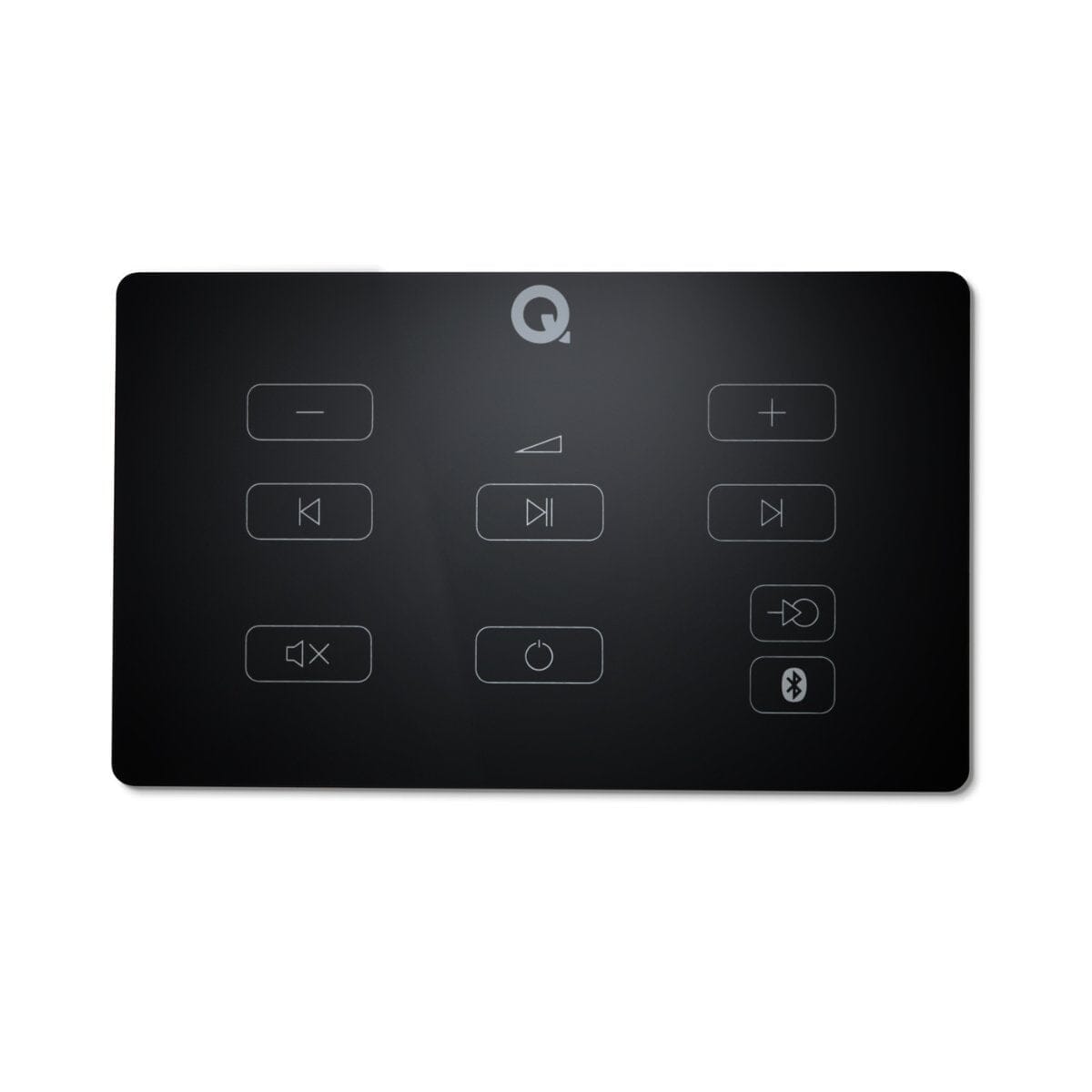

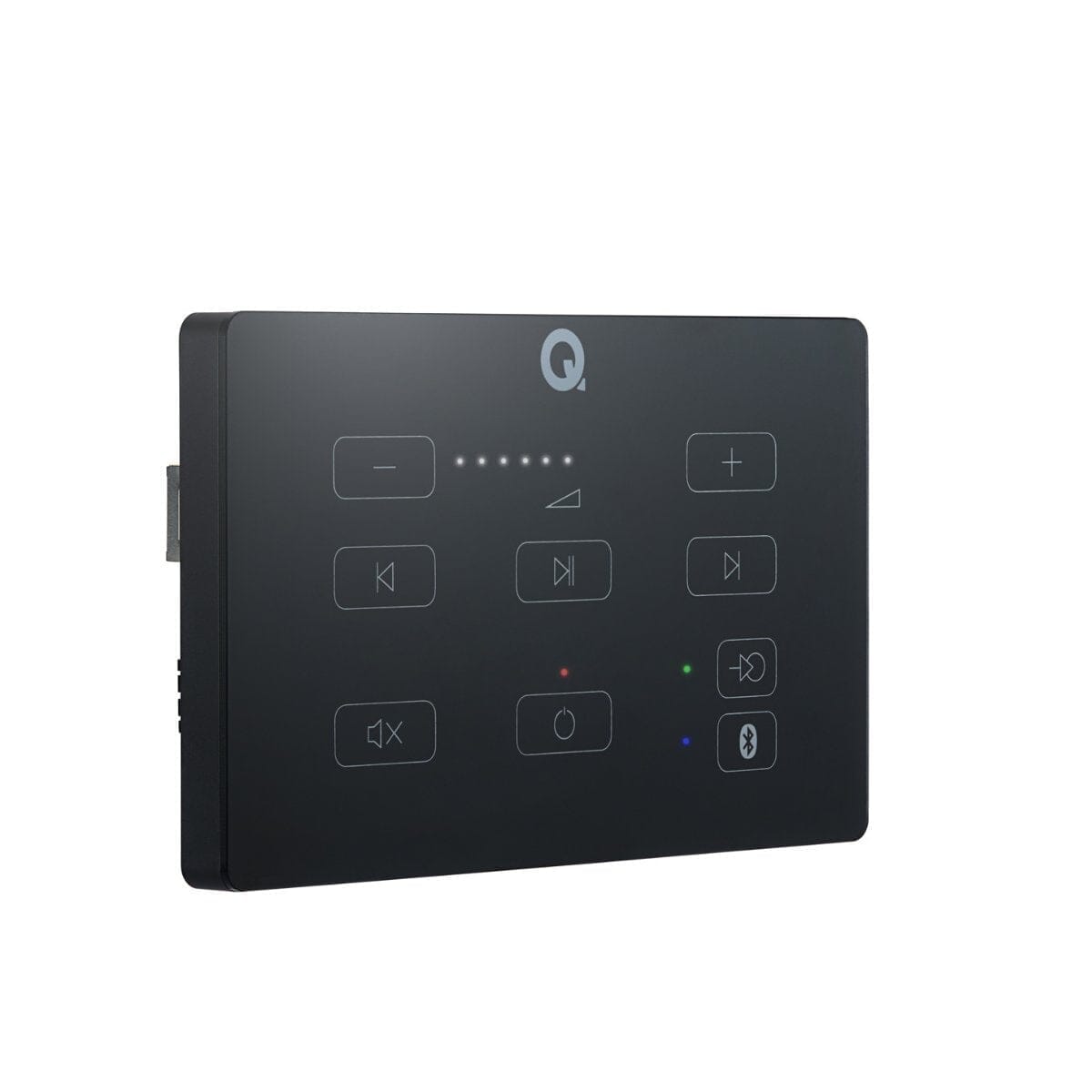

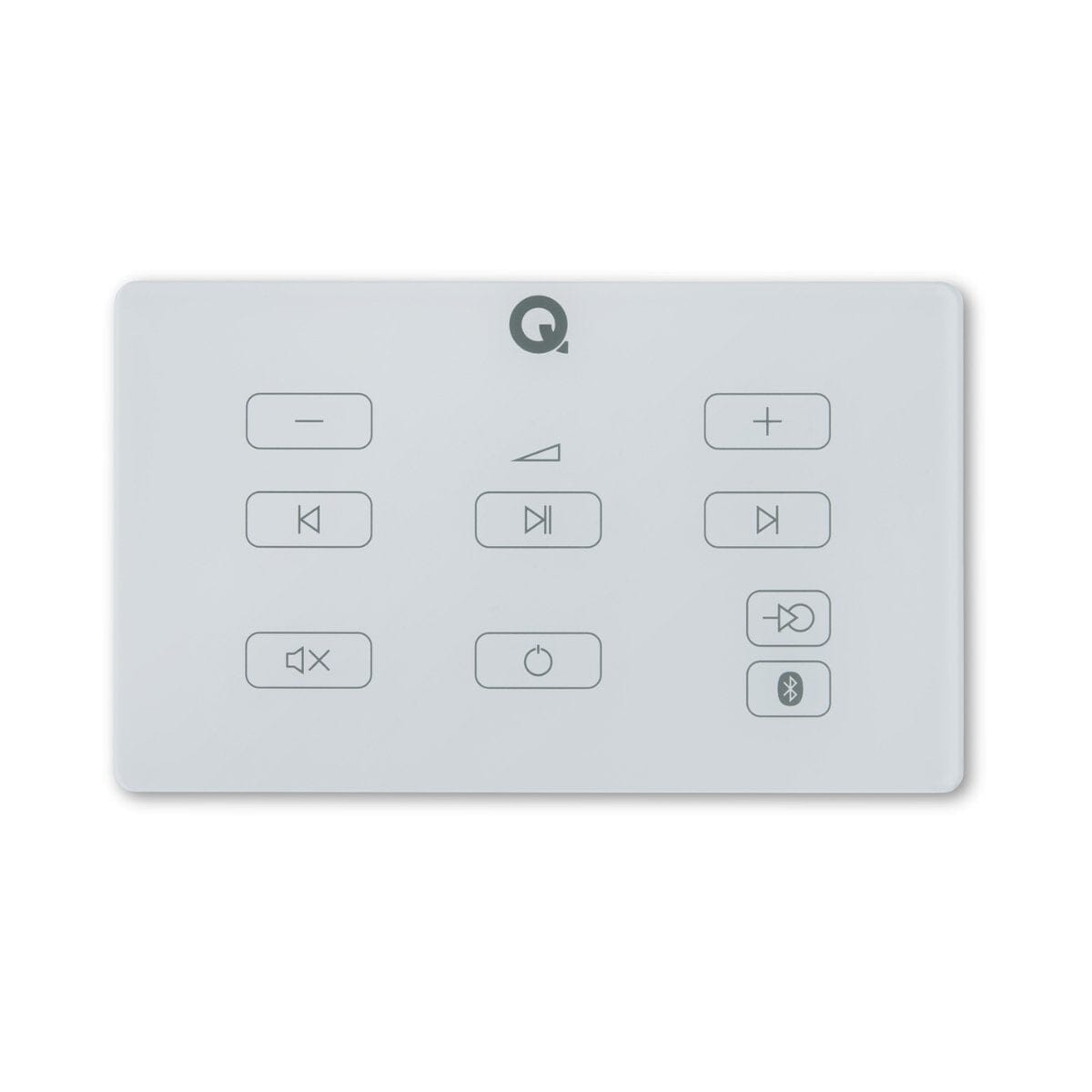

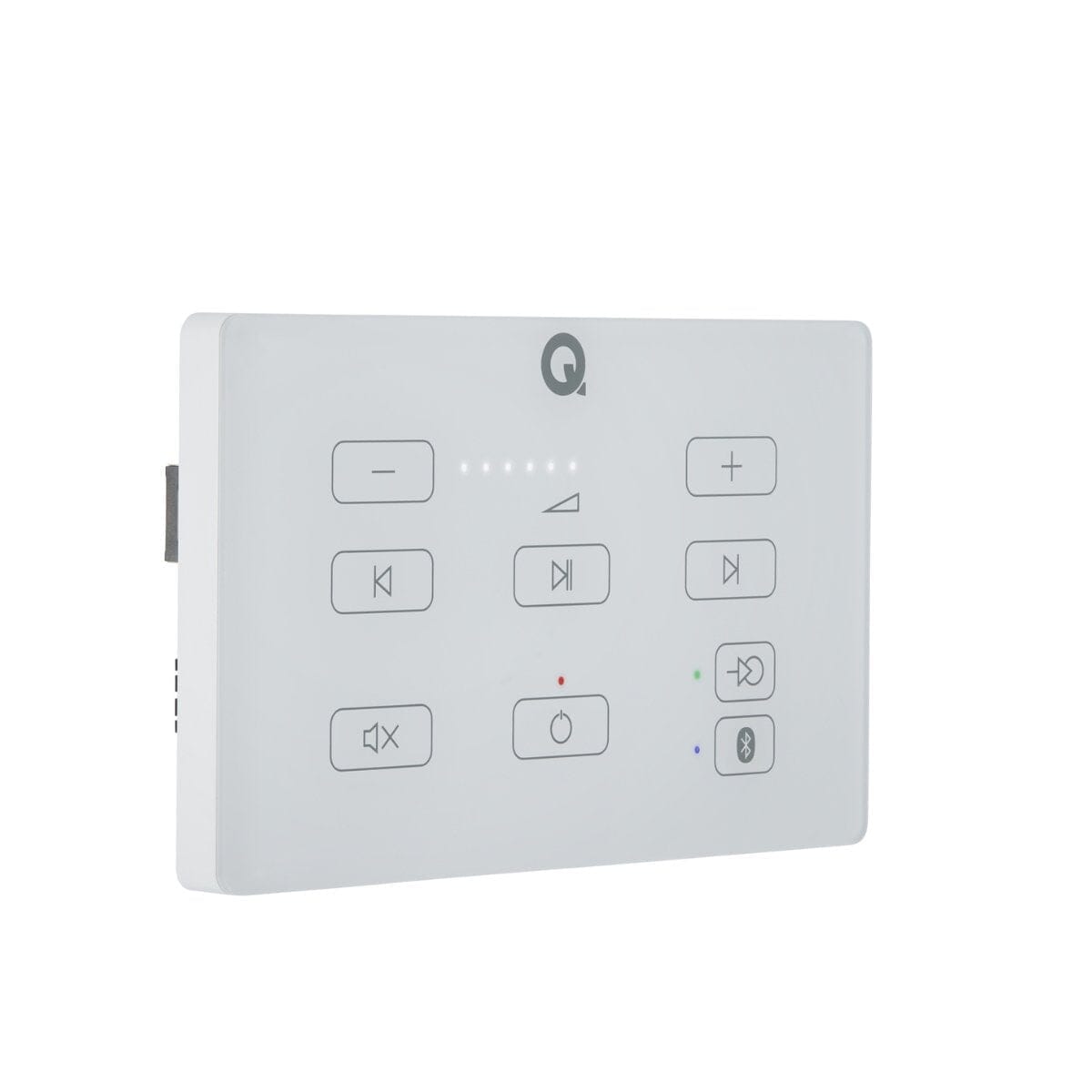

- Touch-Sensitive Glass Controls: Responsive wall panel with LED indicators that brighten during adjustment and dim afterwards, maintaining a subtle appearance.
This system is a strong choice for those wanting powerful ceiling audio with minimal visual impact, combining simplicity of use with impressive room coverage.
AMPLIFIER
- Audio Sources: Wireless: Bluetooth (BT 5.0, A2DP)
- AUX: Optical TOSLINK, Resolution: 16bit 48kHz
- Speaker Outputs: Left & Right, Stereo or dual mono
- Analogue Line: 3mm stereo, Modes: Fixed or variable, Max level: 670mV
- Amplifier Type: Class D, Continuous power: 2 x 25W @ 6Ω, THD: 0.07% @ 1W, 0.2% @ rated power, SNR: >75dB @ rated power, Frequency response: 20Hz - 20kHz +/- 1dB
- Ratings: E60 wall panel: IP54
- Control: Touch sensitive buttons: x9, BT AVRCP v1.6 (play, pause, skip, track)
- Power Supply: Input: 100 - 240V AC 50/60Hz, Output: 22V DC 1.5A, Dimensions (HxWxD): 30mm x 50mm x 115mm
- Power Consumption: Typical: 10W, Standby: <2W
- Wall Panel: Net weight: 1.3kg, Dimensions (HxWxD): 91mm x 151mm x 33mm, Operating ambient temperature: Max. 40ºC
- Speaker Cable: Gauge: 19 AWG, Lengths: 2 x 7m
- DC Extension: Gauge: 16 AWG, Length: 5m, Connectors: 6mm x 2mm DC male, 6mm x 2mm DC female
SPEAKERS
- Tweeter/Tweeter Diameter: Swivel/19mm
- Woofer: 8"
- Power Handling (Program): 15-60W
- Impedance (Nominal) Ohms: 8 Ohm
- Sensitivity dB (2.83V, 1m): 88dB
- Response (Low Frequency): -3dB 63Hz
- Max Rear Depth: 87mm
- Cutout: 248mm
- Size-Round: 281mm
AMPLIFER
- 1 x Amplifier Wall Panel
- 1 x Mounting Frame
- 1 x 5M DC Extension Cable
- 1 x Power Supply
- 2 x 7.5m Speaker Cables
SPEAKERS
- 4 x Speakers
- 4 x Grilles
- 2 x Cut Out Template
- 1 x User Manual
