Q Acoustics E60 6.5" Bathroom Bluetooth Ceiling Speaker System

The Q Acoustics E60 6.5" Bathroom Bluetooth Ceiling Speaker System is a discreet, splash-proof audio solution designed specifically for bathrooms and humid environments.

Combining the IP54-rated E60 in-wall amplifier with a Q Acoustics Qi65CWE-S single stereo ceiling speaker, this system delivers clear, room-filling sound without the need for visible hi-fi equipment.

Ideal for en-suites, main bathrooms and compact spaces, the single stereo speaker reproduces both left and right channels from one ceiling position.

Stream music via Bluetooth or connect your TV through the optical input, all controlled from a sleek touch-sensitive wall panel that blends neatly into modern interiors.

FEATURES

• IP54 Splash-Proof: Designed for bathrooms and kitchens, the wall-mounted control panel resists splashes and humidity straight out of the box. A reliable solution for damp or steamy environments.
• Built-In 2 x 25W Class D Amplifier: Delivers clean, balanced and dynamic sound with low distortion. More than enough power for background music or immersive bathroom listening.
• Bluetooth 5.0 Streaming: Stream music wirelessly from your smartphone or tablet with stable, high-quality Bluetooth connectivity. Simple pairing and intuitive control make everyday use effortless.

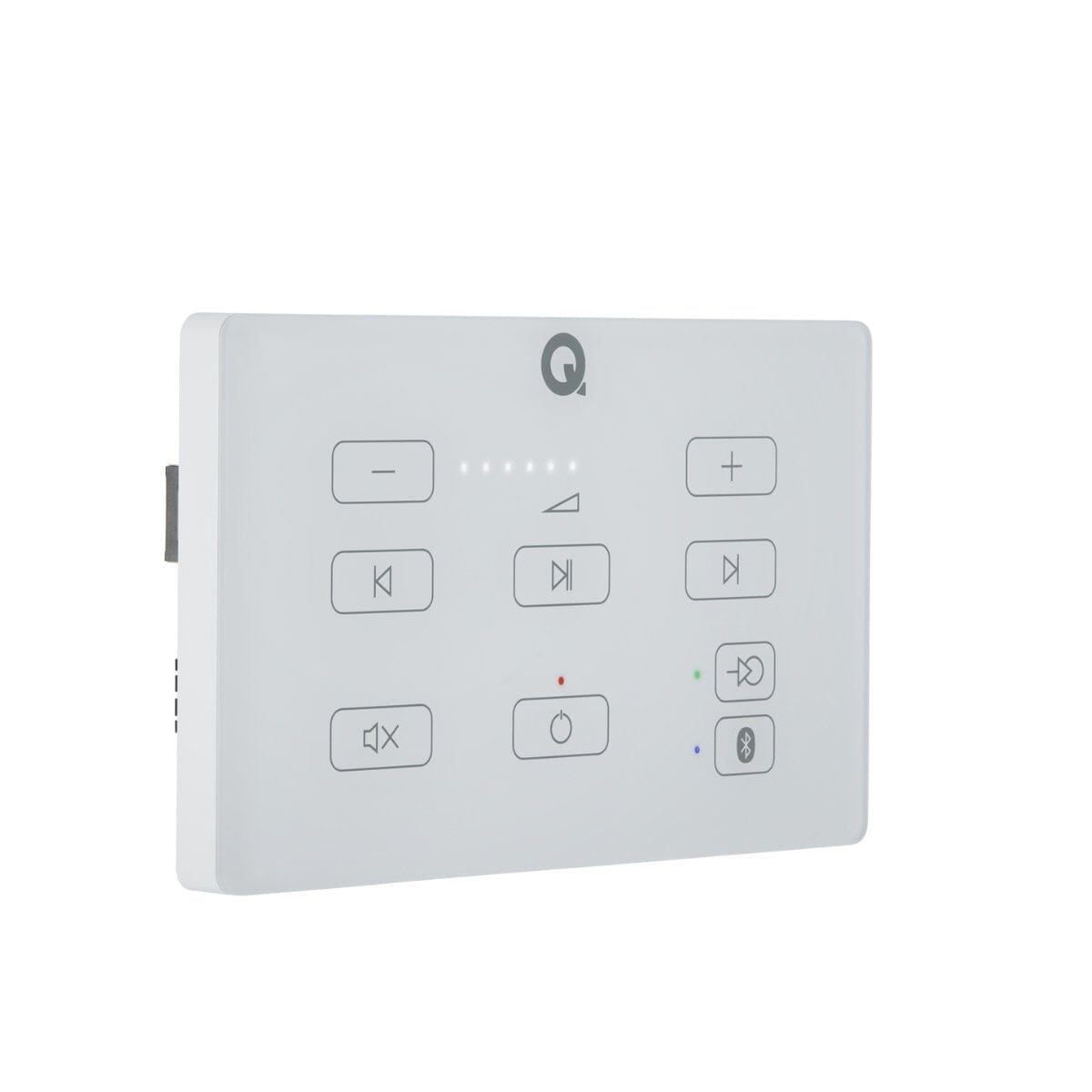

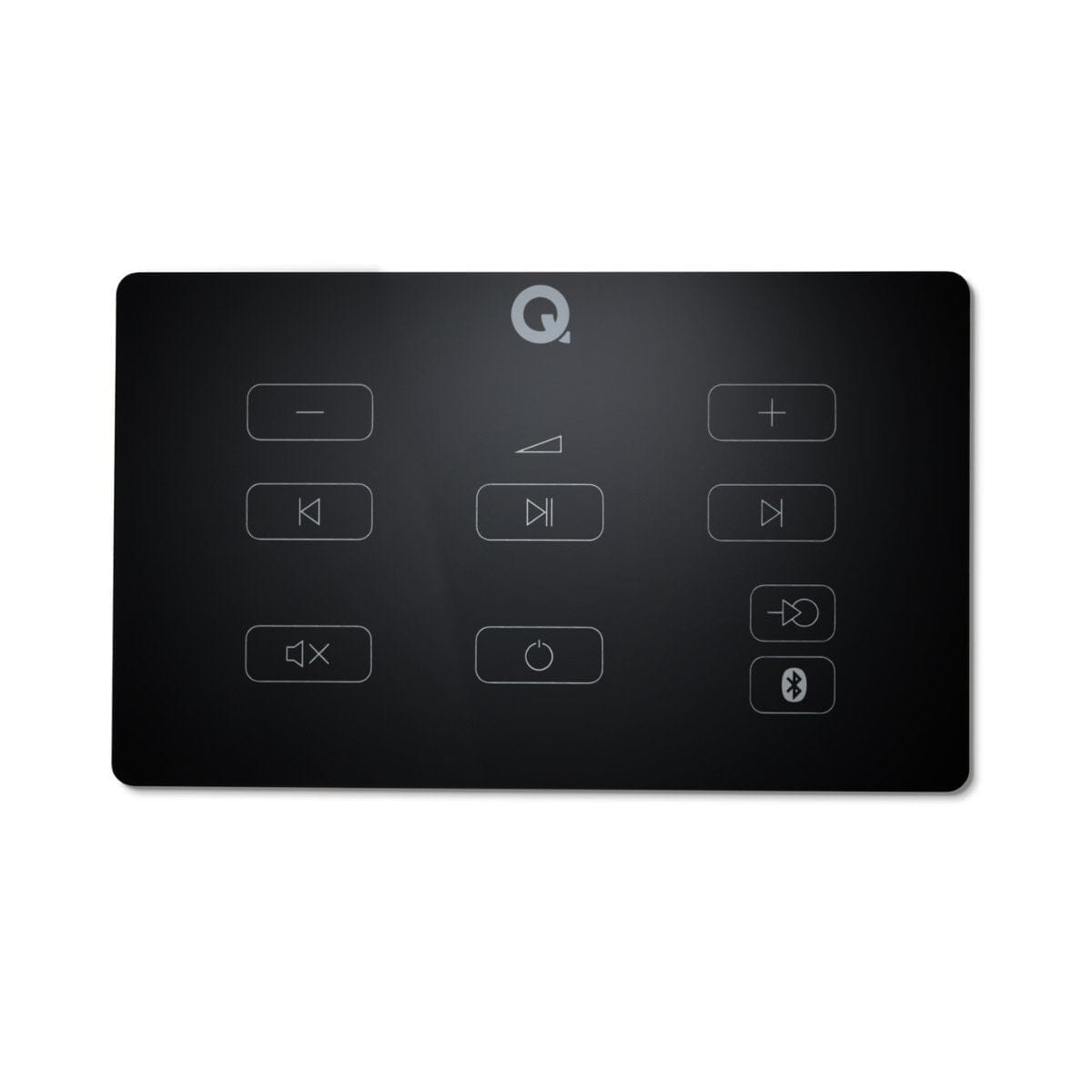

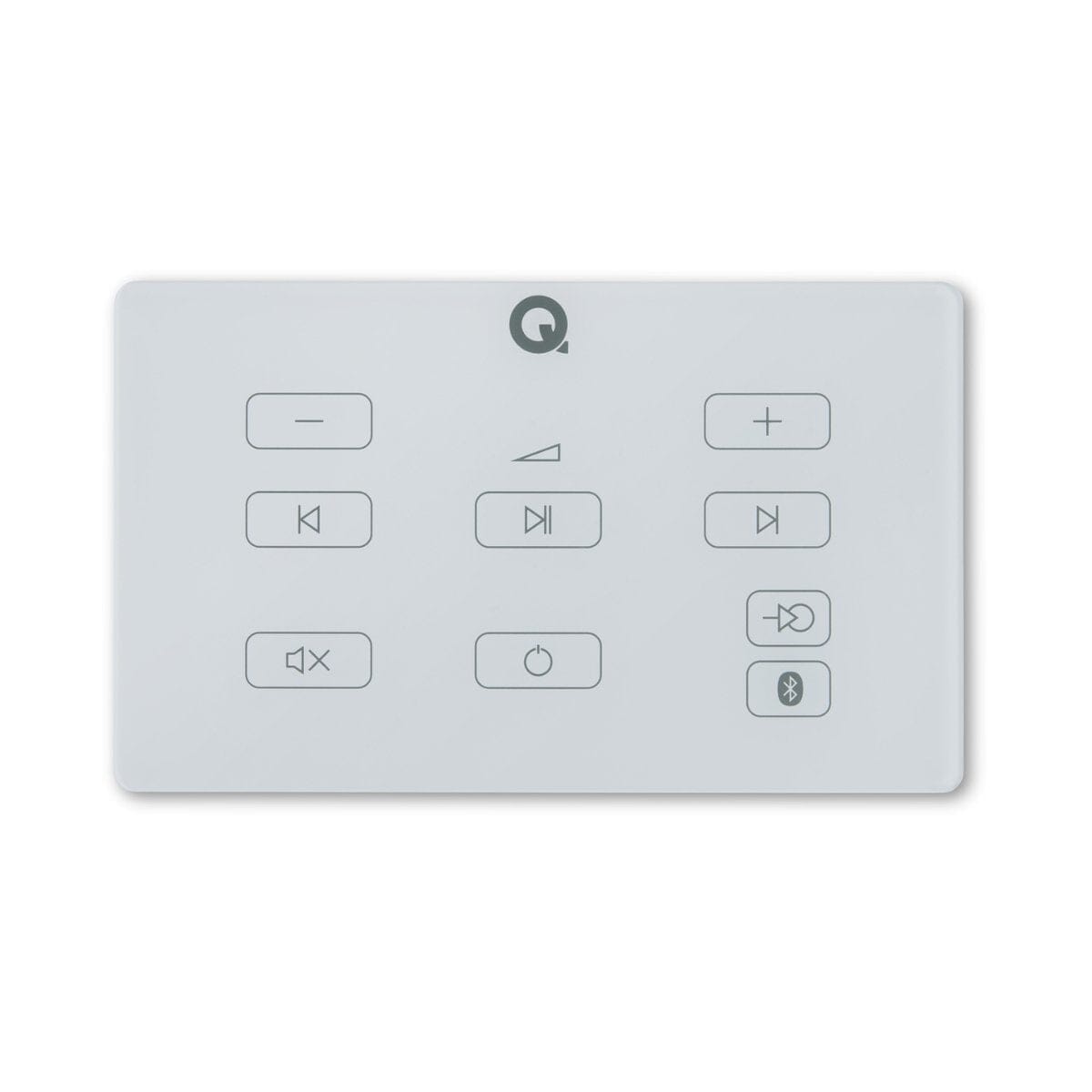

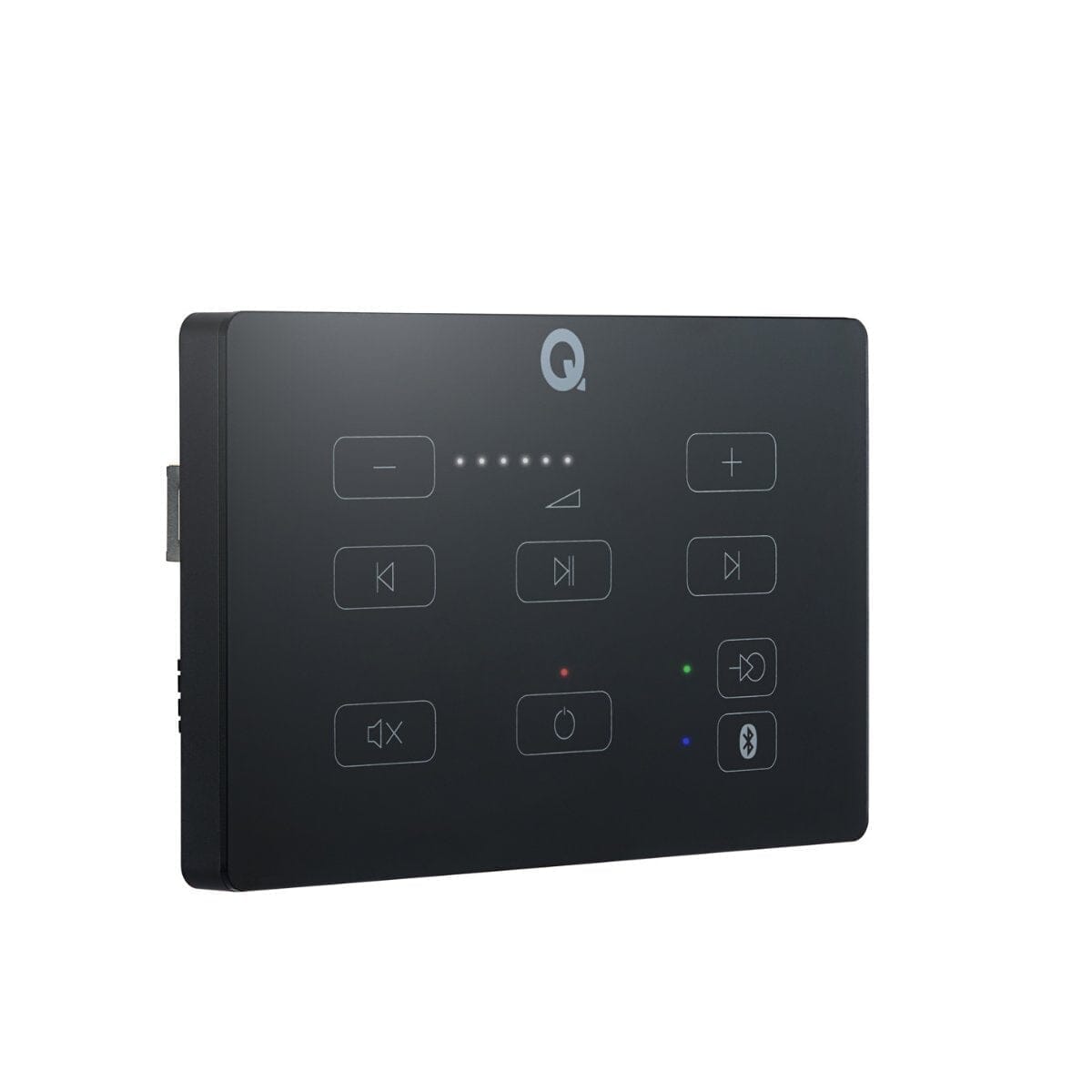

• Touch-Sensitive Glass Controls: Responsive, easy-to-clean surface with LED indicators that brighten during adjustment and dim afterwards for a subtle appearance.
• Optical Input For TV Audio: Connect to a compatible television via TOSLINK to improve TV sound in adjoining bedroom and bathroom layouts.

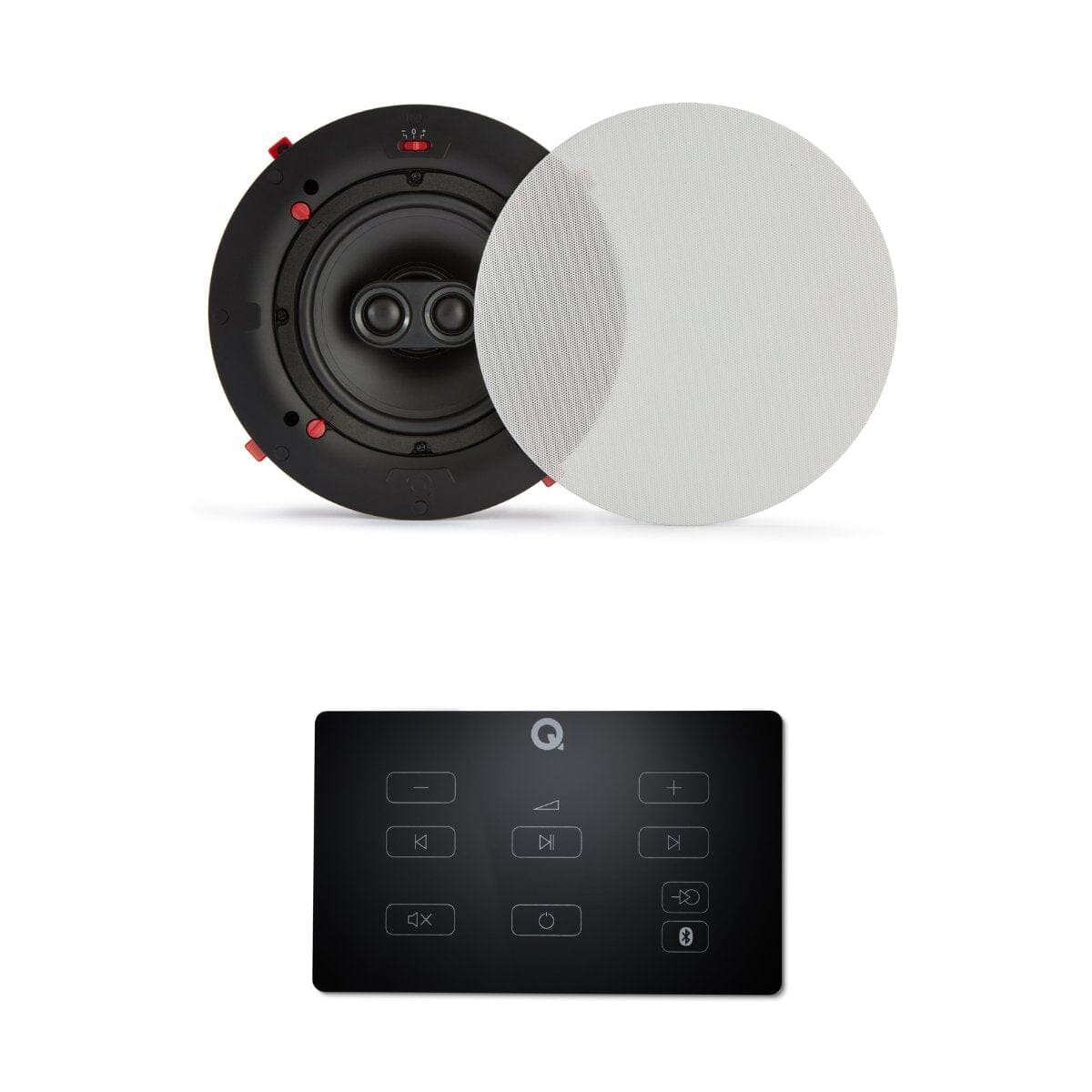

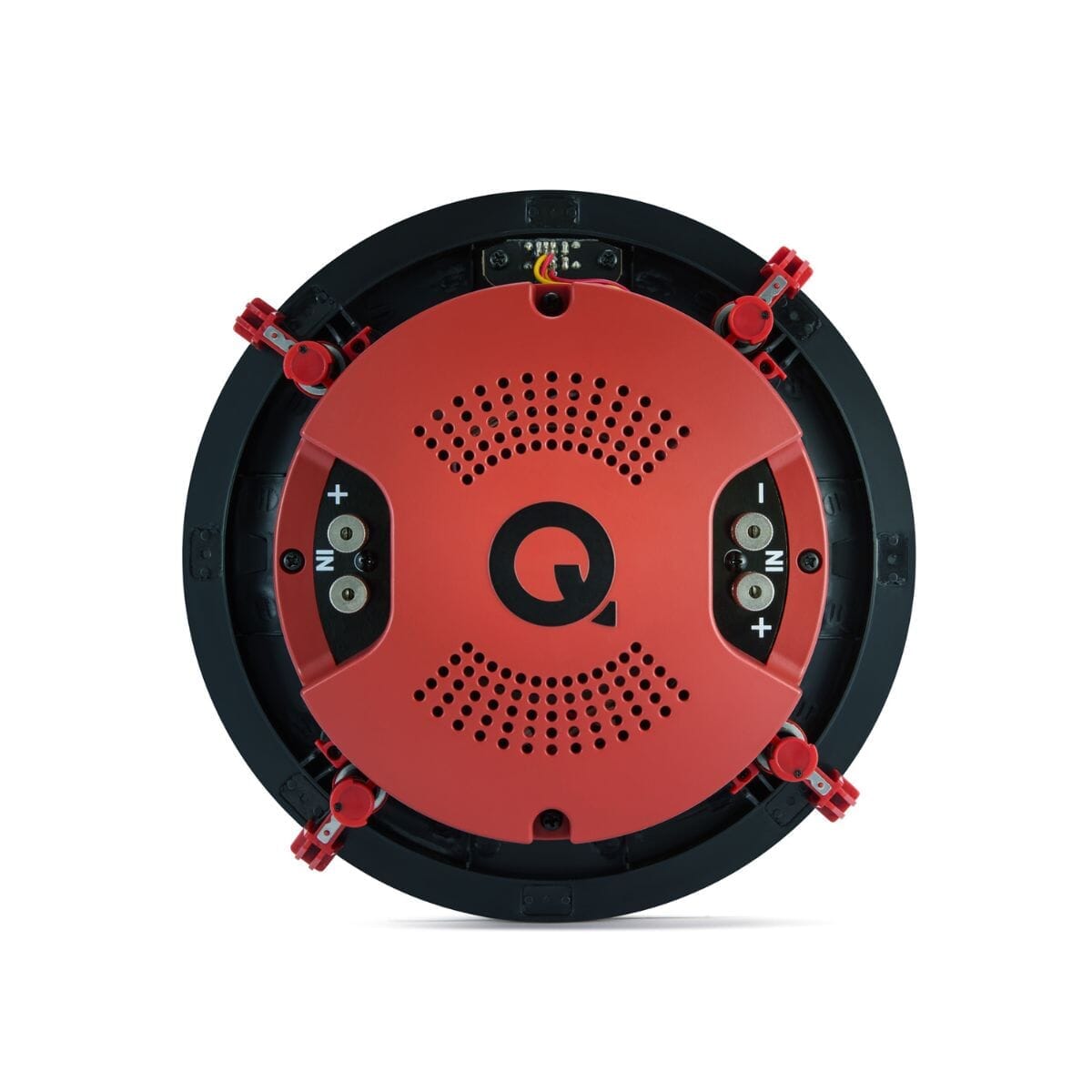

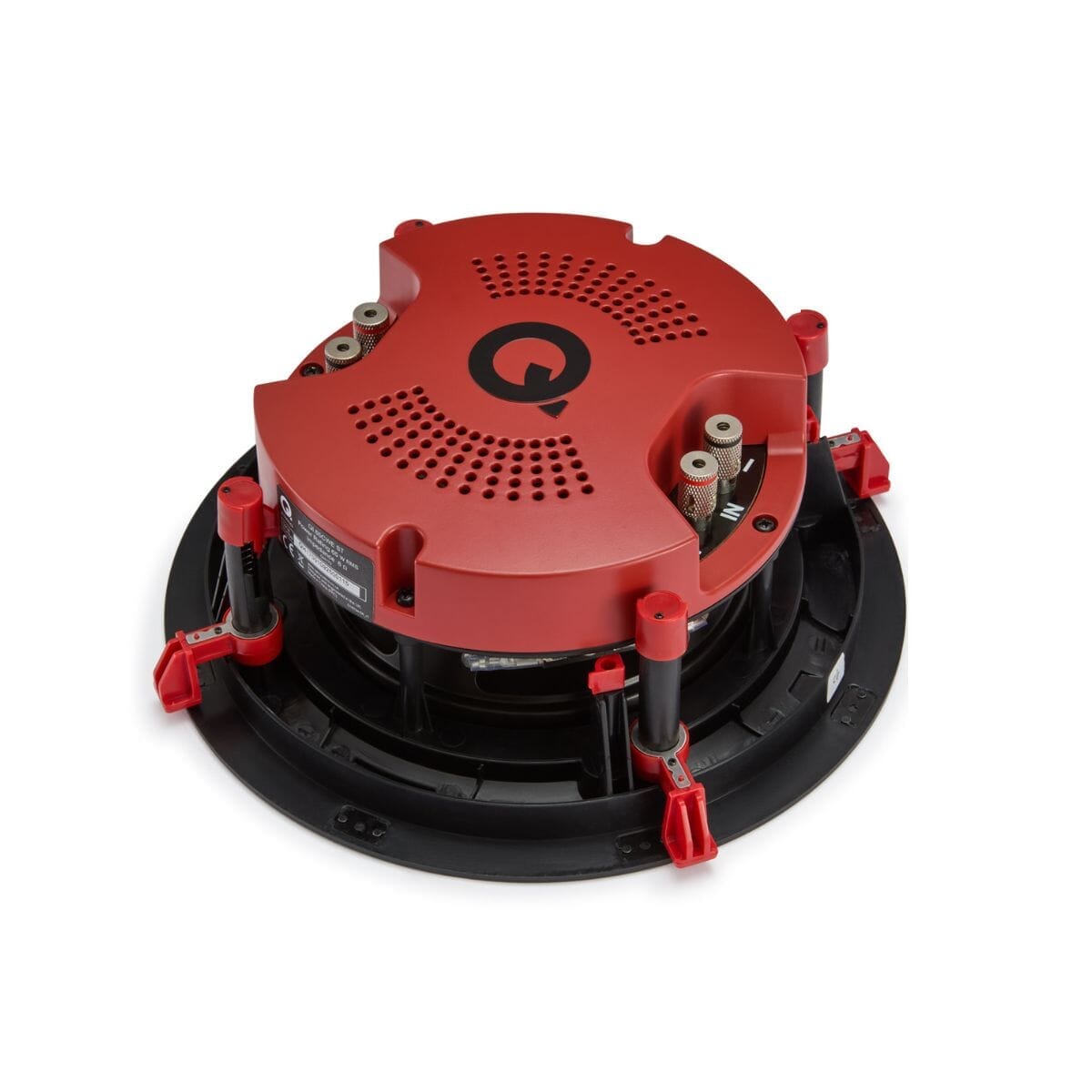

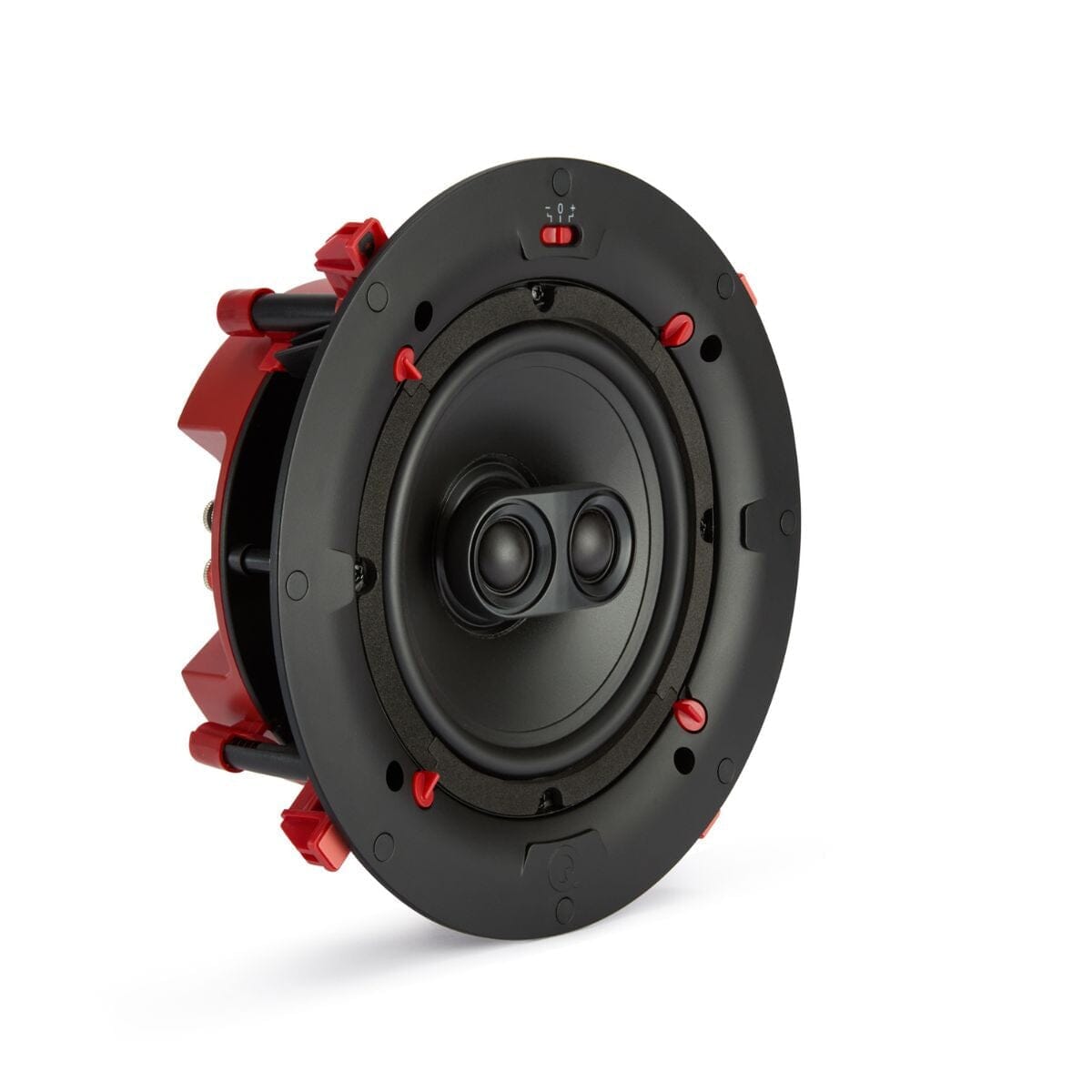

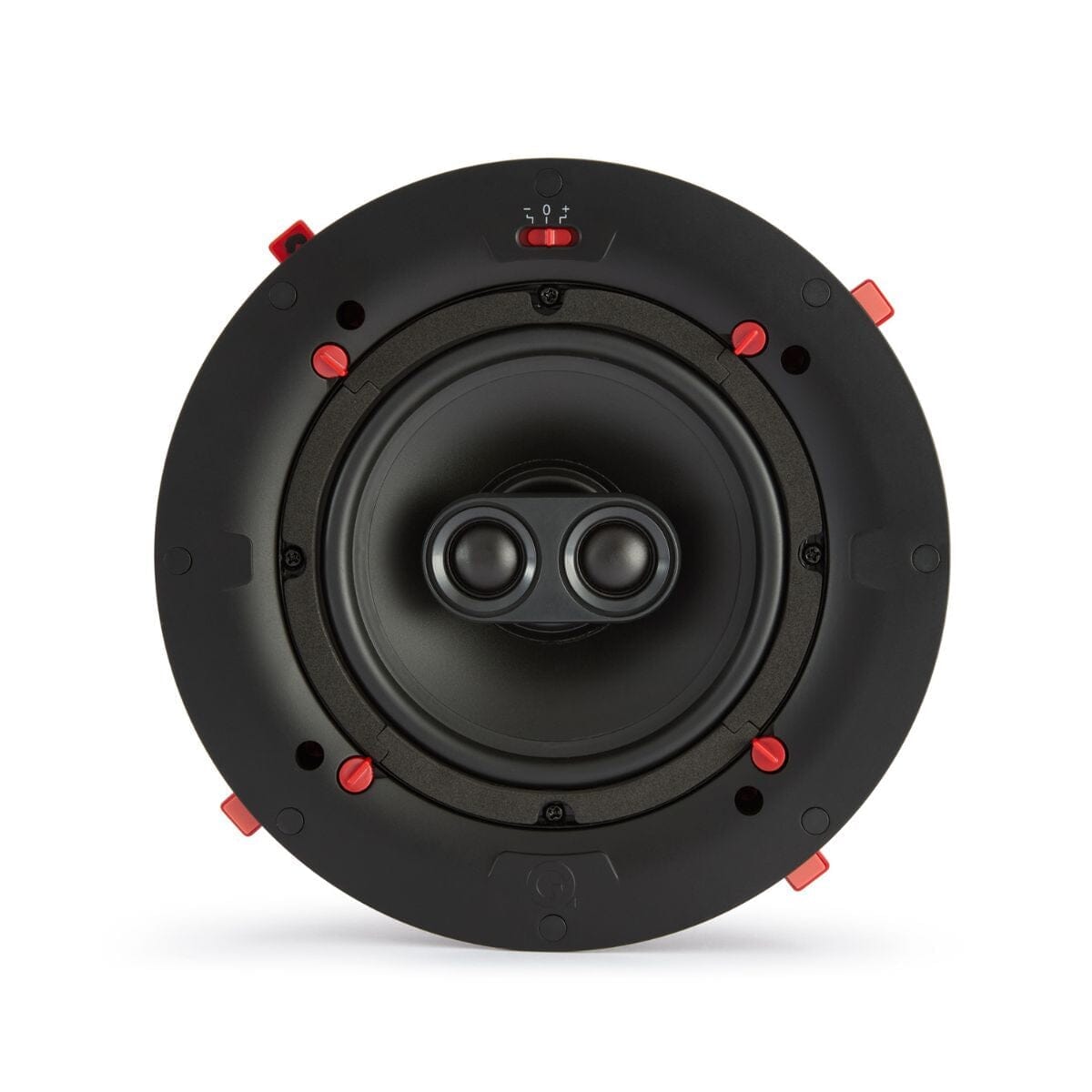

• Qi65CWE-S Single Stereo Ceiling Speaker: A dual voice coil design that plays both left and right channels from one discreet ceiling speaker. Perfect for bathrooms where installing a pair of speakers is impractical. Choose the pair option for larger bathrooms or covered outdoor areas.
• Discreet Flush-Fit Ceiling Design: Low-profile grille blends seamlessly into the ceiling, maintaining a clean and uncluttered finish.

This system provides a professional, space-saving way to add Bluetooth audio to your bathroom, delivering reliable performance, simple control and a refined finish.

AMPLIFIER

• Audio Sources: Wireless: Bluetooth (BT 5.0, A2DP)
• AUX: Optical TOSLINK, Resolution: 16bit 48kHz
• Speaker Outputs: Left & Right, Stereo or dual mono
• Analogue Line: 3mm stereo, Modes: Fixed or variable, Max level: 670mV
• Amplifier Type: Class D, Continuous power: 2 x 25W @ 6Ω, THD: 0.07% @ 1W, 0.2% @ rated power, SNR: >75dB @ rated power, Frequency response: 20Hz - 20kHz +/- 1dB
• Ratings: E60 wall panel: IP54
• Control: Touch sensitive buttons: x9, BT AVRCP v1.6 (play, pause, skip, track)
• Power Supply: Input: 100 - 240V AC 50/60Hz, Output: 22V DC 1.5A, Dimensions (HxWxD): 30mm x 50mm x 115mm
• Power Consumption: Typical: 10W, Standby: <2W

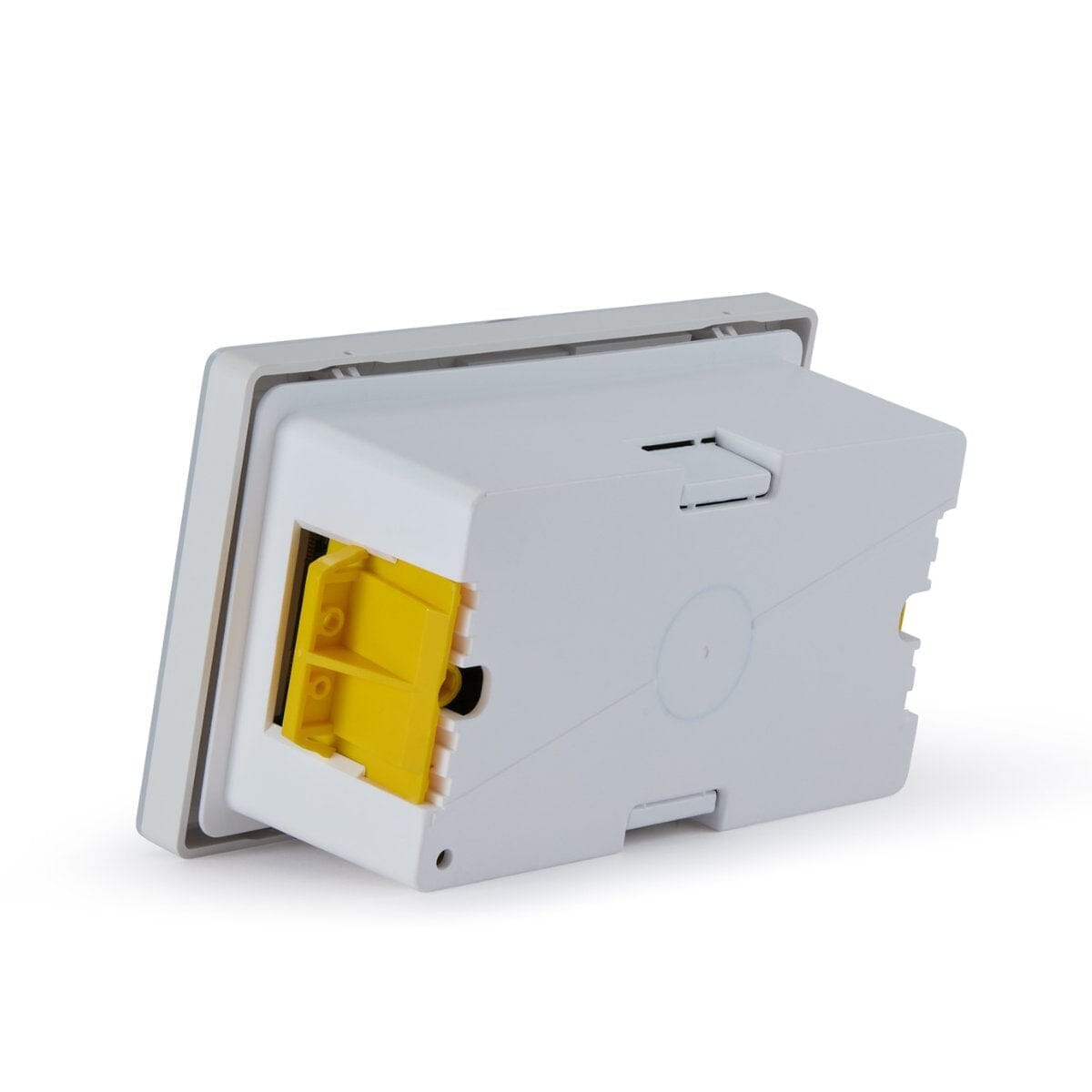

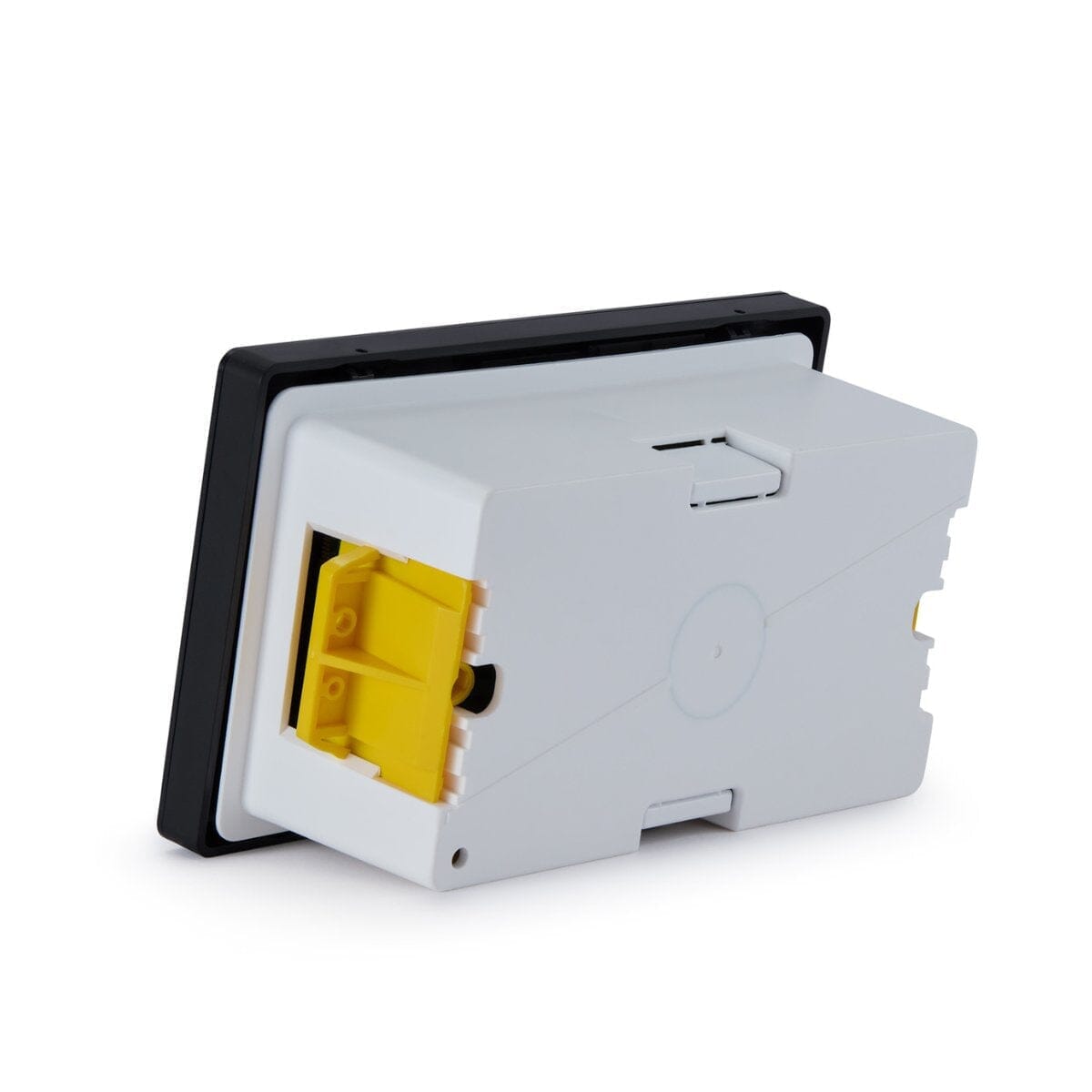

• Wall Panel: Net weight: 1.3kg, Dimensions (HxWxD): 91mm x 151mm x 33mm, Operating ambient temperature: Max. 40ºC
• Speaker Cable: Gauge: 19 AWG, Lengths: 2 x 7m
• DC Extension: Gauge: 16 AWG, Length: 5m, Connectors: 6mm x 2mm DC male, 6mm x 2mm DC female

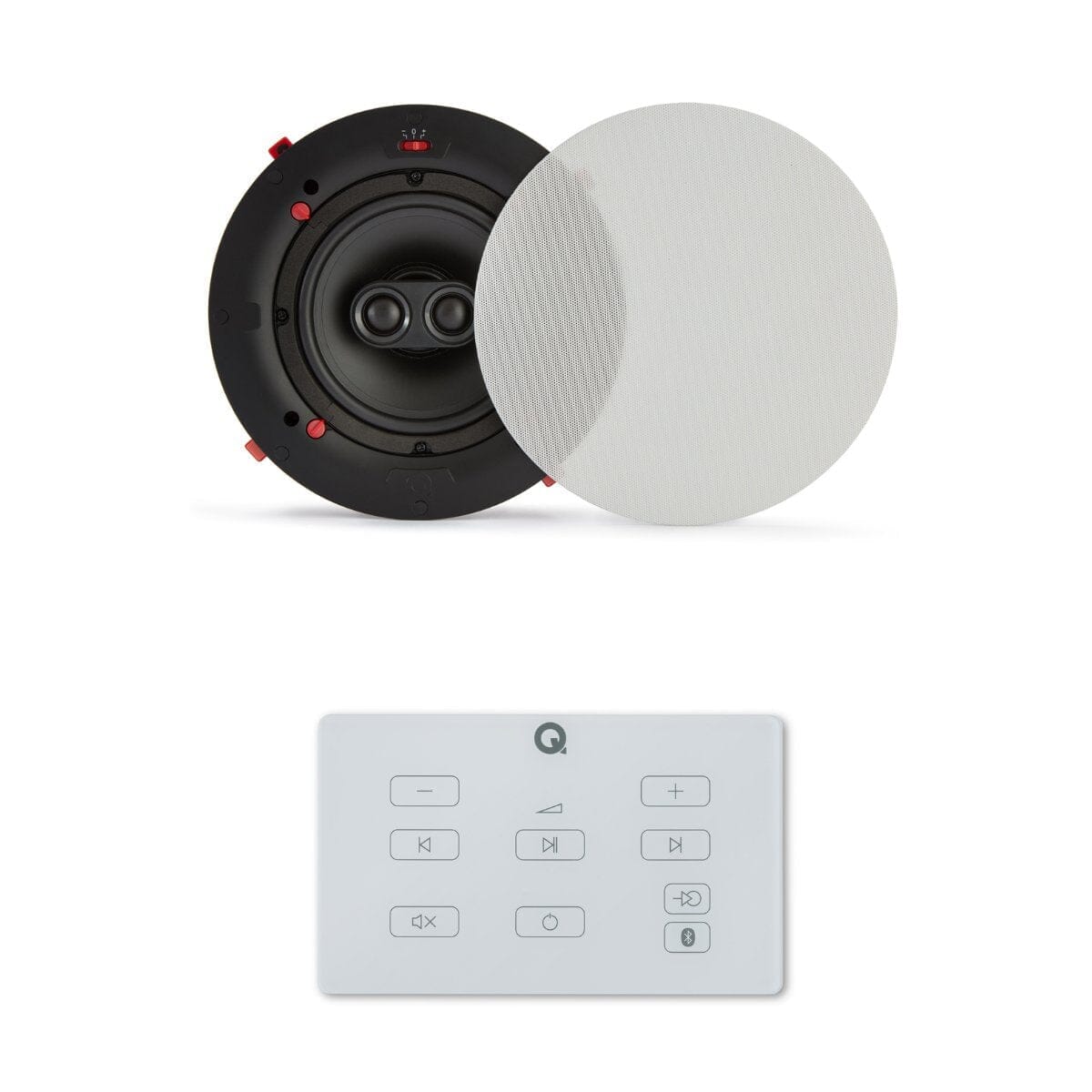

SPEAKERS (SINGLE STEREO)

• Terminal: 4 × 4mm spring loaded
• Power rating: 65 W RMS
• Frequency response (-6 dB): 67 Hz – 40 kHz
• Nominal impedance: 8 Ω
• Minimum impedance: 6.0 Ω
• Sensitivity (1 m, 2.83 Vrms @ 1 kHz): 88 dB
• Crossover frequency: 2.9 kHz
• Weight (per speaker): 1.95 kg
• Dimensions (H × W × D): 242 × 242 × 106mm
• Driver: 165mm (6.5 in)
• Tweeter: 2 × 19mm (0.75 in)
• Cut-out size: 212mm (8.35 in)
• Maximum wall thickness: 30mm (1.18 in)

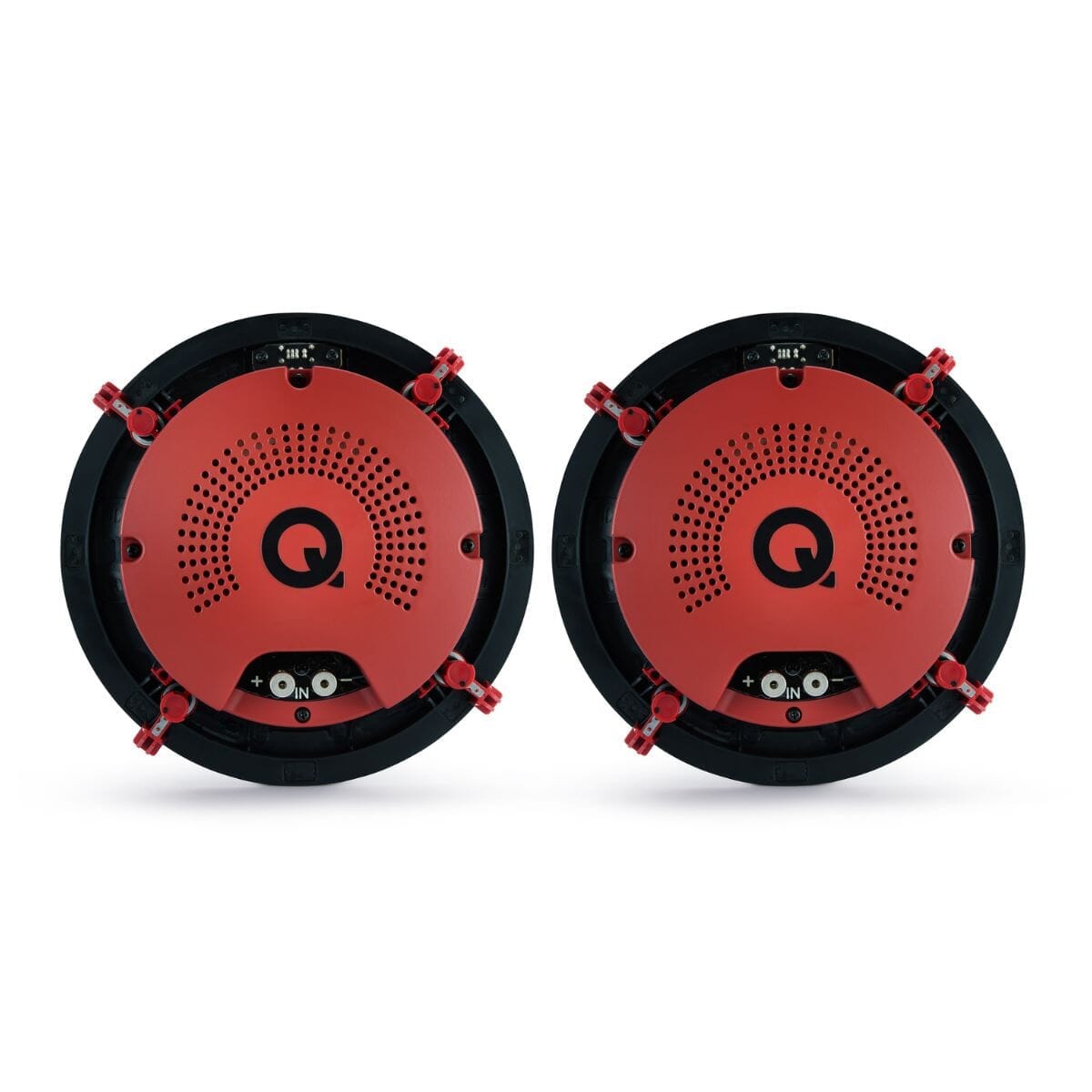

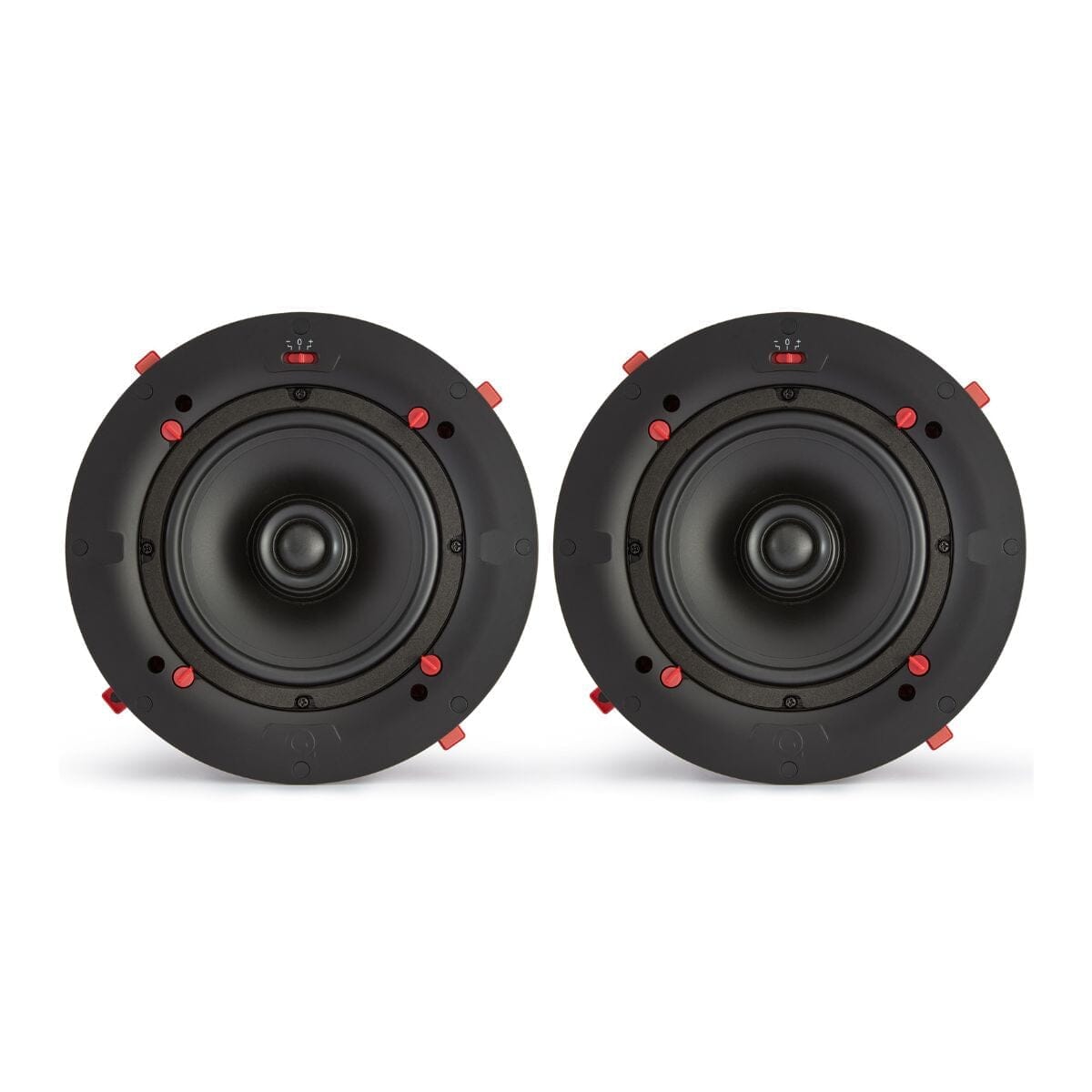

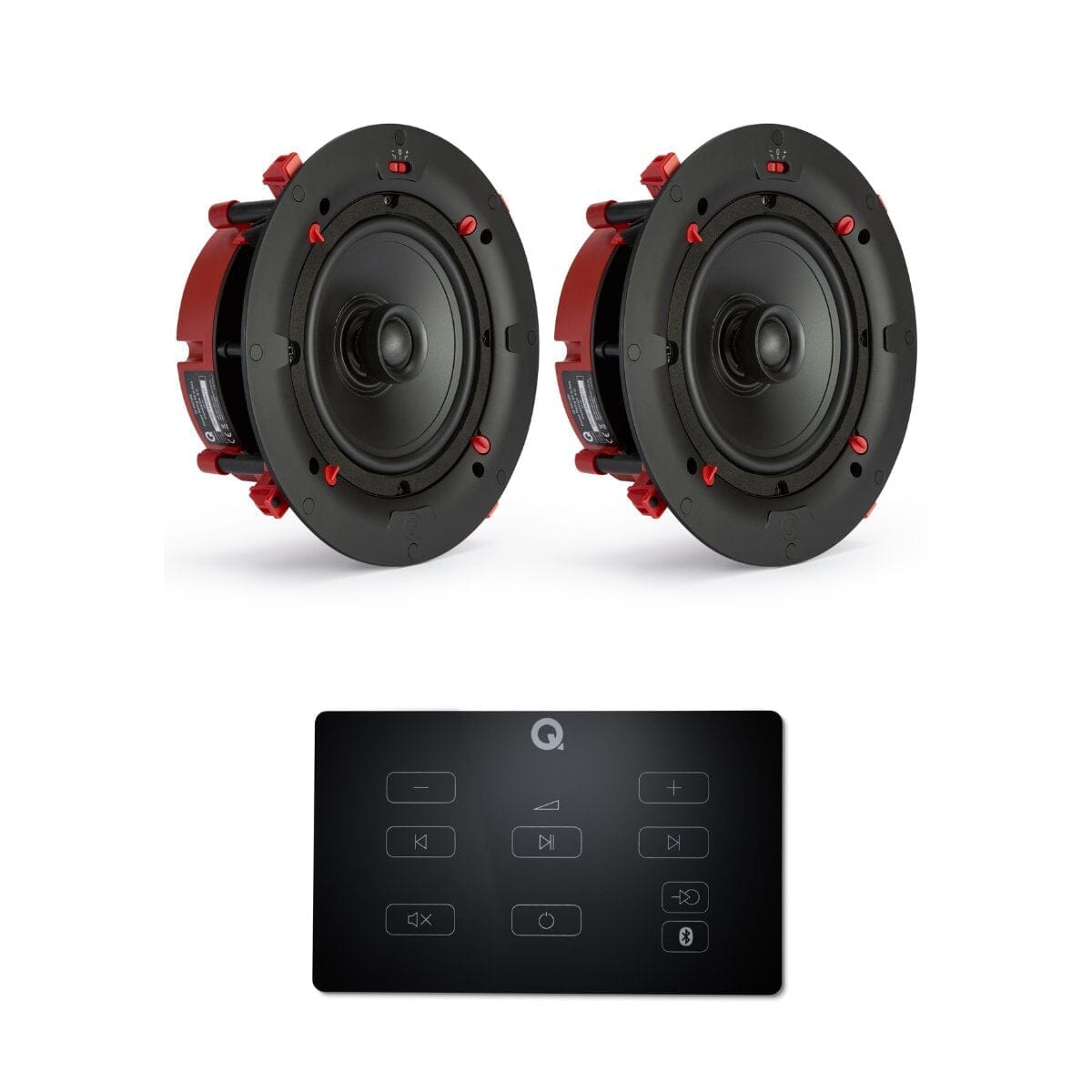

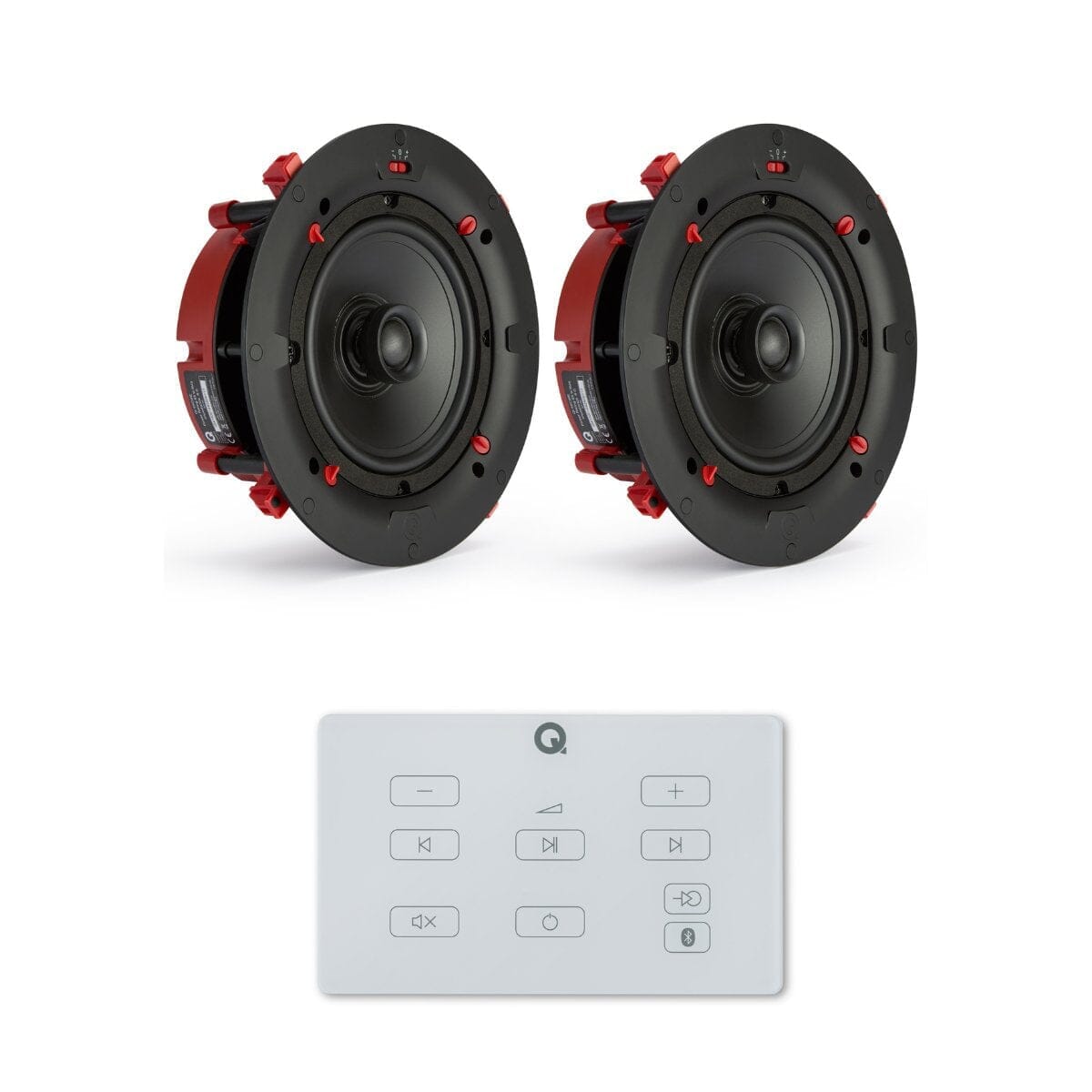

SPEAKERS (ONE PAIR)

• Terminal: 2 × 4mm spring loaded
• Power rating: 65 W RMS
• Frequency response (-6 dB): 73 Hz – 34 kHz
• Nominal impedance: 8 Ω
• Minimum impedance: 6.3 Ω
• Sensitivity (1 m, 2.83 Vrms @ 1 kHz): 88 dB
• Crossover frequency: 2.9 kHz
• Weight (per speaker): 1.85 kg
• Dimensions (H × W × D): 242 × 242 × 106mm
• Driver: 165mm (6.5 in)
• Tweeter: 19mm (0.75 in)
• Cut-out size: 212mm (8.35 in)
• Maximum wall thickness: 30mm (1.18 in)

AMPLIFER

• 1 x Amplifier Wall Panel
• 1 x Mounting Frame
• 1 x 5M DC Extension Cable
• 1 x Power Supply
• 2 x 7.5m Speaker Cables

SPEAKERS (SINGLE STEREO)

• 1 x Speaker
• 1 x Grille
• 1 x Cut Out Template
• 1 x User Manual

SPEAKERS (ONE PAIR)

• 2 x Speakers
• 2 x Grilles
• 1 x Cut Out Template
• 1 x User Manual
