Monitor Audio IWA-250 Subwoofer Amplifier

The Monitor Audio IWA-250 delivers up to 250 watts into 4 ohms, a single IWA-250 will power single or dual IWS-10's to provide higher power levels for larger rooms or to meet customer demands.

FEATURES

• Rigid, high quality steel case
• Switch mode power supply
• Class D power amplifier delivering up to 250 watts into 4 ohms (dual IWS-10 drivers)
• High efficiency design resulting in cool running – low thermal output
• DSP controlled with advanced limiters
• <0.5watt standby power consumption (ErP certified)
• DC short circuit protection, over-current and thermal protection

• System Format: Active subwoofer amplifier
• Lower Frequency Limit: 25 Hz
• Upper Frequency Limit: Variable 40 – 120 Hz @ 24 dB/Octave
• Amplifier Output: 250 W @ < 1% THD+N
• Drive Unit Complement: 4 – 8 ohms
• Amplifier Classification: Class D amplifier with Switch Mode Power Supply (SMPSU)
• Cabinet Support: For use with the dedicated back box
• EQ: Music, Movie, Impact
• Phase Control: 0° & 180°
• Auto Sensing: Line level > 3.5 mV
• Input Level Requirements: Standby after approximately 15 minutes of no signal
• Input Impedance: > 20K ohms
• Mains Input Voltage: AC 110 – 120 V ~ 50/60 Hz, AC 220 – 240 V ~ 50/60 Hz (Factory Region Preset)
• Dimensions (H x W x D): 43.7 x 432 x 263mm

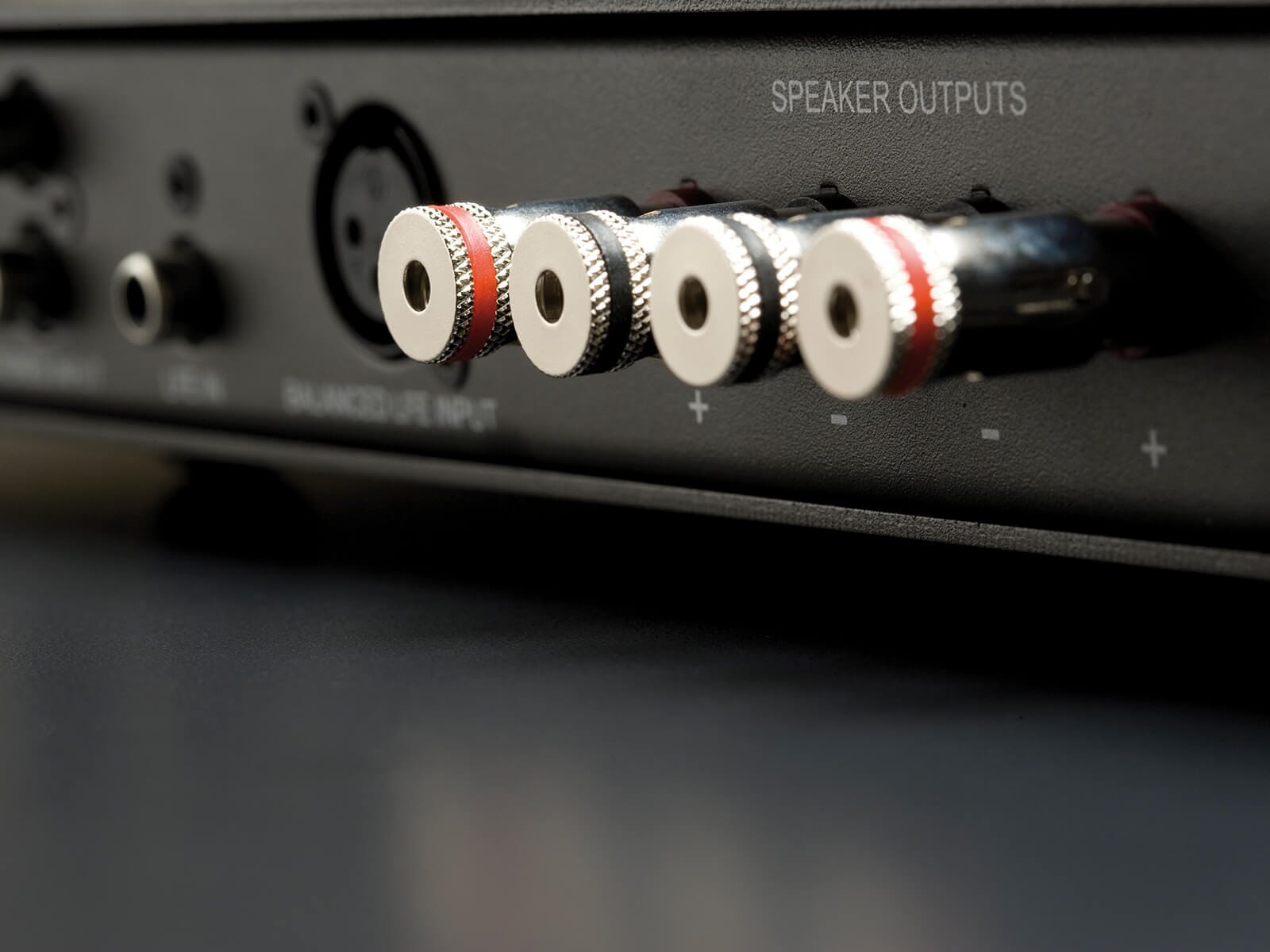

• Connection: LFE in (Stereo RCA and Balanced), 12V Trigger in (3.5mm mono mini-jack), left and right speaker output
• Trigger Input: 5 – 12V via 3.5mm mono mini-jack socket
• Power Consumption: Standby < 0.5 W (ErP approved), Typical Idle < 10 W, Max Rated 200 W
• Weight (Unpacked): 4 kg
• Sold As: Single unit

• 1 x IWA-250 Amplifier
• 1 x Power Supply
