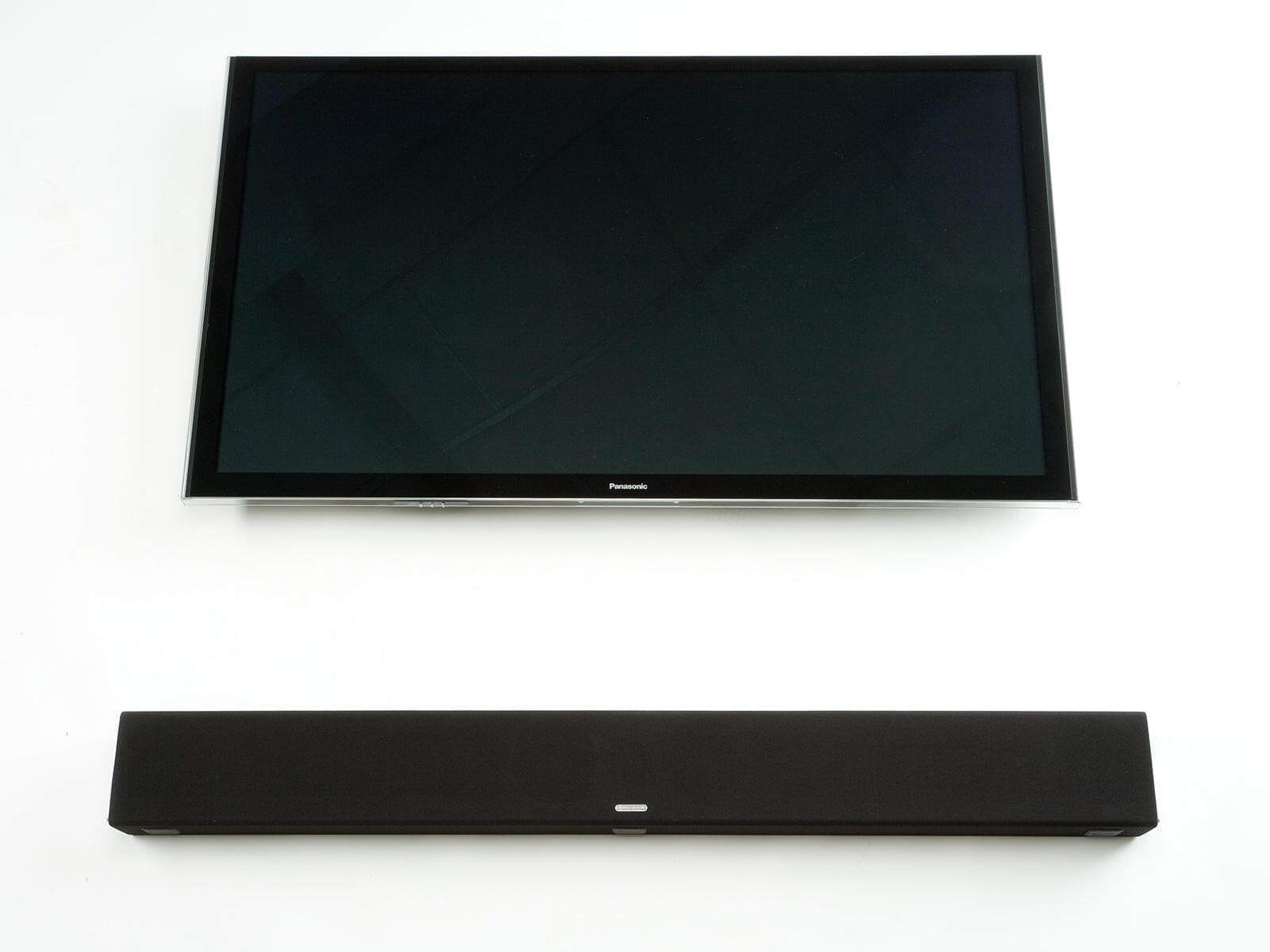

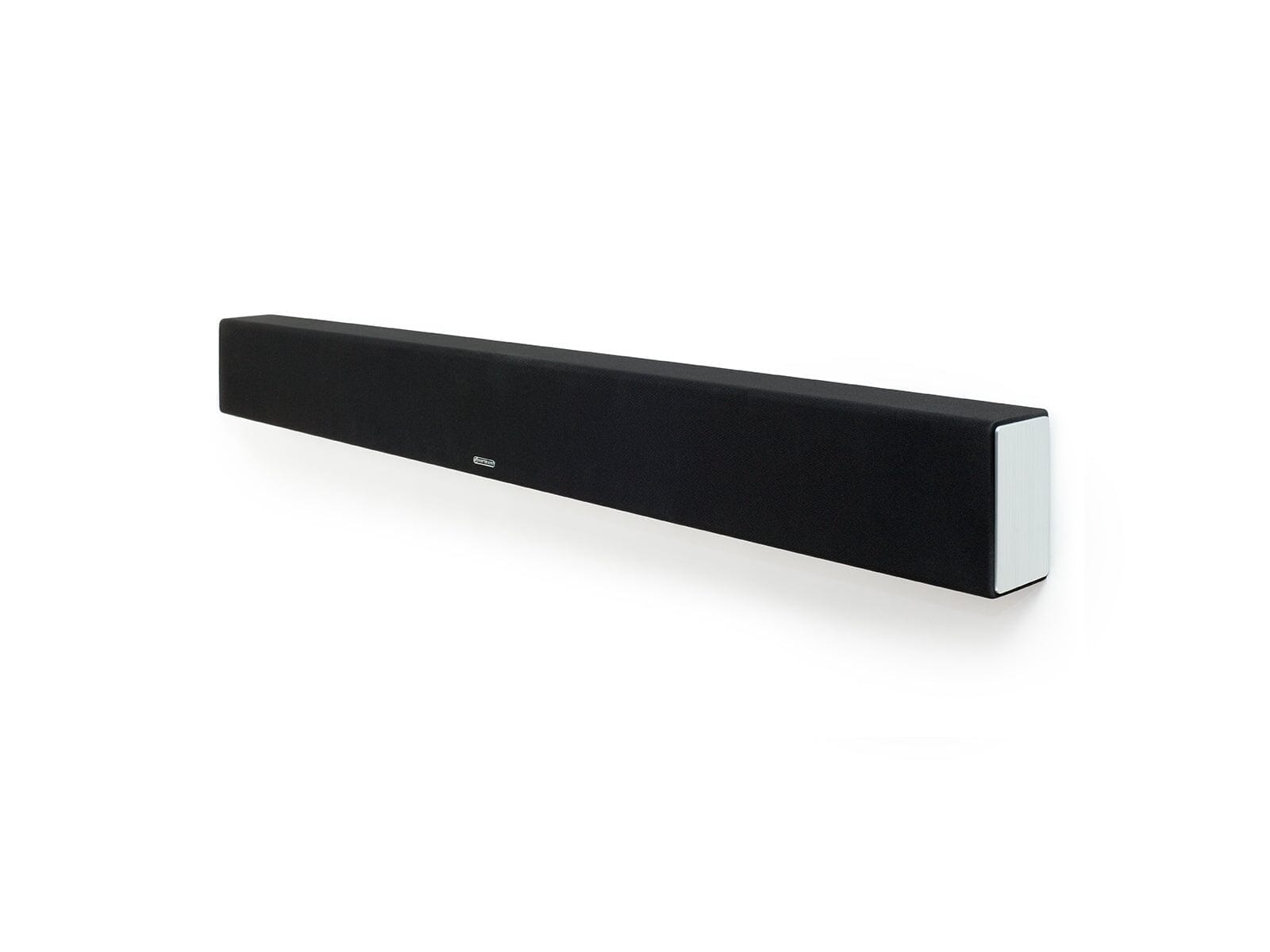

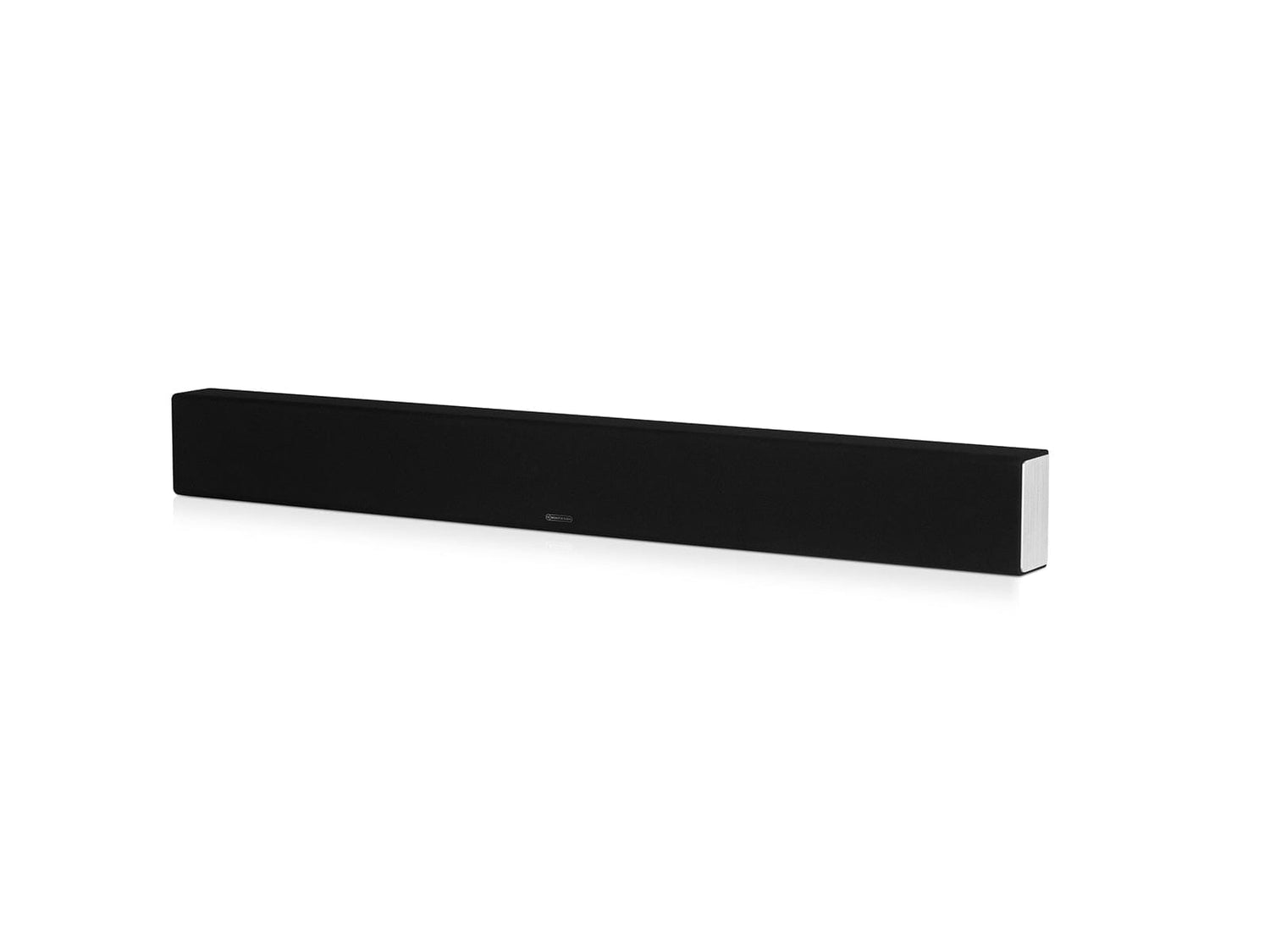

Monitor Audio SB-3 Passive Soundbar

The Monitor Audio SB-3 passive soundbar features twinC-CAMbass drivers, twinABRs (Auxiliary Bass Radiators) and a single C-CAM tweeter in the centre section to provide the SB-3 with higher acoustic output and power handling for critical centre channel reproduction.

This is combined with individual mid-bass, tweeter and sealed ABR drivers for both left and right channels.

In larger rooms the SB-3 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience.

Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.

FEATURES

• IndividualC-CAM(Ceramic-Coated Aluminium/Magnesium) bass/mid driver for left and right channels, twin drivers for the centre channel
• C-CAM gold dome tweeters per channel
• Individual Auxiliary Bass Reflex (ABR) for left and right channels, twin ABRs for the centre channel
• Three separate driver arrays for left, centre, right channels in a single cabinet
• Optional dedicatedwall bracket
• Integrated Silicon feet provide a secure cabinet-top mounting alternative.

• Frequency Response (-3 dB): All Channels: 80 Hz – 30 kHz
• Sensitivity (1W@1M): Left and Right Channels: 84 dB, Centre Channel: 87 dB
• Nominal Impedance: 8 ohms
• Power Handling (RMS): Left and Right Channels: 40 W, Centre Channel: 80 W
• System Power Handling (RMS): All Channels: 100 W (High pass filter set to 100 Hz)
• Recommended Amplifier Requirements: All Channels: 30 – 100 W
• Crossover Frequency: All Channels: 80 – 120 Hz
• Maximum SPL: 104 dB (108.8 dB all channels driven)
• Bass Alignment: Left and Right Channels: 2 x Auxiliary Bass Reflex (ABR) Loading, Centre Channel: 2 x Auxiliary Bass Reflex (ABR) Loading
• Drive Unit Complement: Left and Right Channels: 2 x 4" (100mm) C-CAM cone bass/mid drivers, 2 x 1" (25mm) C-CAM Gold Dome tweeters, Centre Channel: 2 x 4" (100mm) C-CAM cone bass/mid drivers, 1 x 1" (25mm) C-CAM Gold Dome tweeter
• Cabinet Dimensions (H x W x D, Including Feet): 147 x 1307 x 93mm
• External Dimensions (Including Bracket, H x W x D): 145 x 1307 x 100mm
• Bracket: BSB
• Weight: 9.1 kg
• Sold As: Single unit

• 1 x SB-3 Passive Soundbar

Note: Requires AV Receiver to power (Sold separately) and BSB Wall bracket for wall mounting (sold separately)
