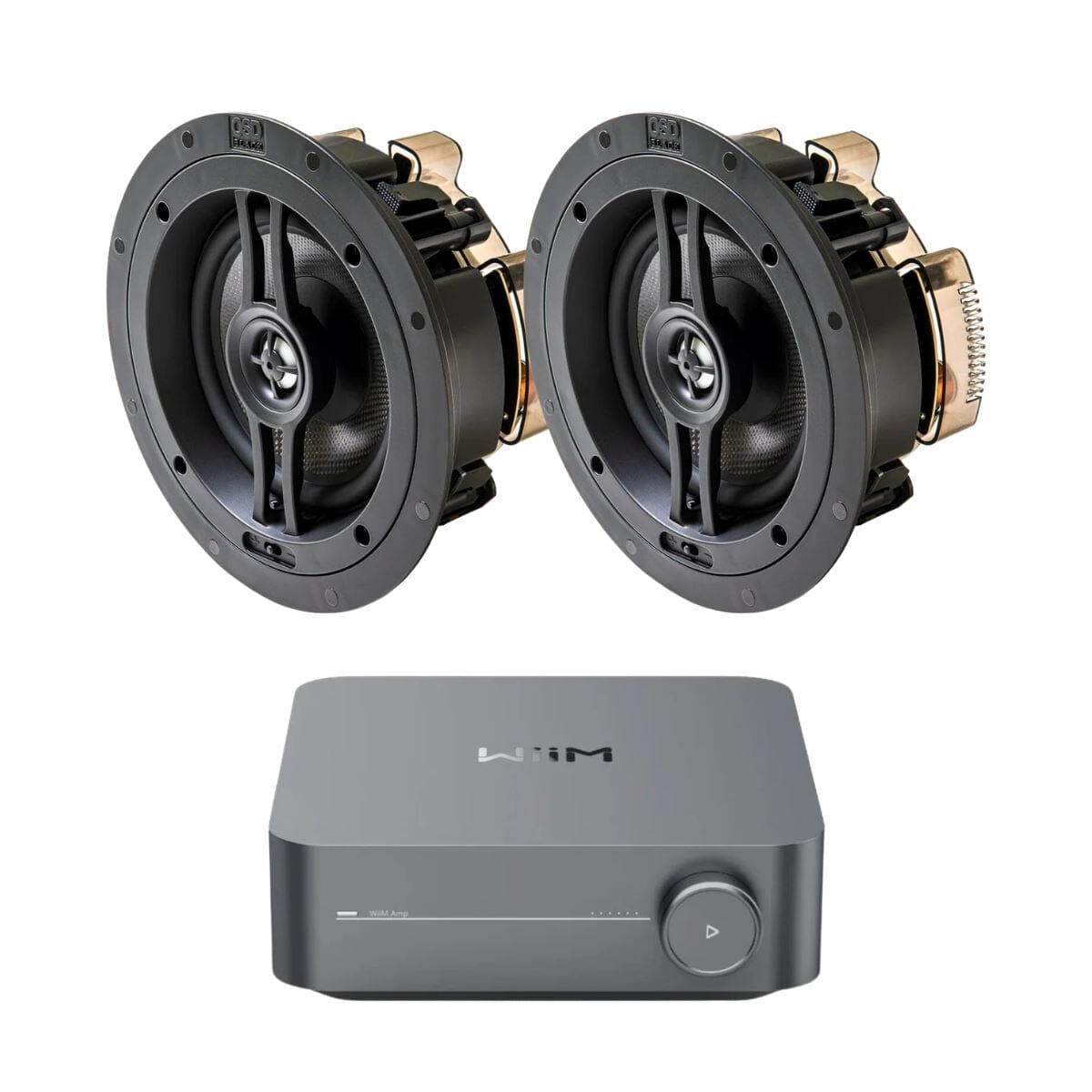

WiiM AMP Streaming Amplifier + OSD Audio Black Series R63 6.5" Ceiling Speakers

Transform your home audio experience with the WiiM AMP & OSD Audio R63 Ceiling Speaker Bundle, the perfect pairing for immersive sound in any room.

Whether you're streaming your favourite playlist in the kitchen or setting the mood in the lounge, this bundle delivers high-resolution audio, sleek integration, and effortless control via your phone or voice.

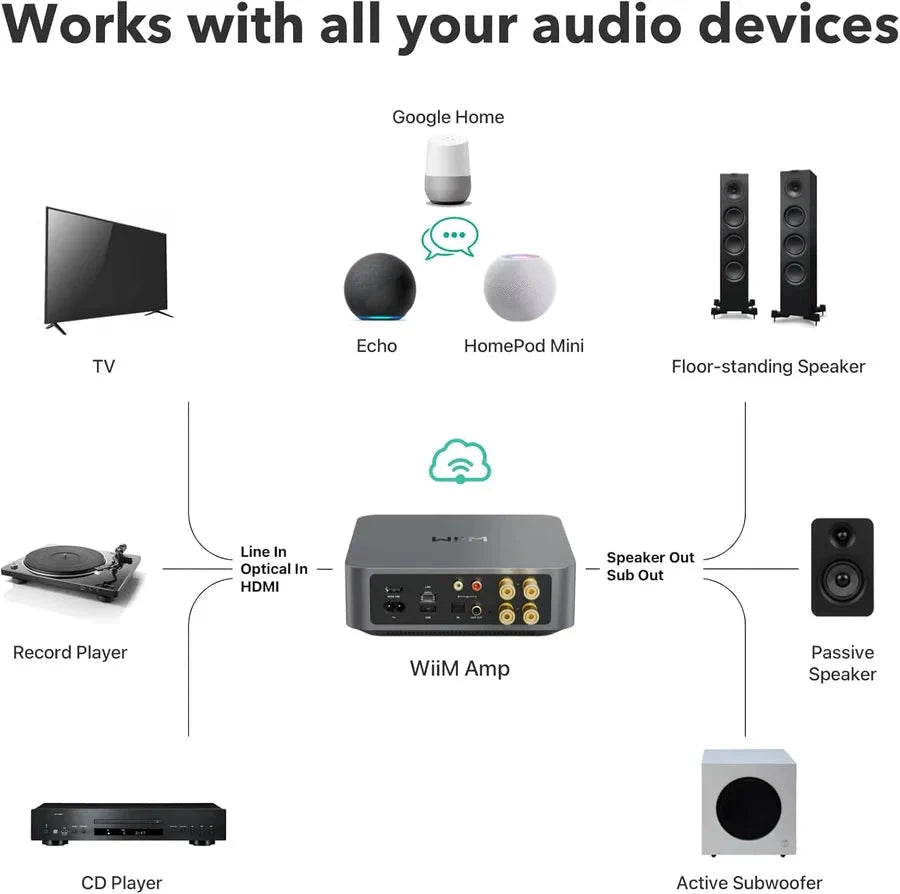

The WiiM AMP offers a powerful yet compact amplifier solution with built-in Wi-Fi and Bluetooth, supporting AirPlay 2, Chromecast, and Alexa for seamless multiroom streaming.

Coupled with the premium OSD Audio R63 ceiling speakers, you’ll enjoy detailed, room-filling audio with discreet in-ceiling installation. Ideal for modern homes, media rooms, and open-plan living spaces.

FEATURES

• Wi-Fi & Multiroom Streaming: Enjoy wireless music throughout your home using built-in Wi-Fi and support for AirPlay 2, Chromecast, Spotify Connect, and more.
• Powerful Built-In Amplifier: The WiiM AMP delivers 60W per channel at 8 ohms, giving you enough power to drive your ceiling speakers with clarity and punch.
• Bluetooth Connectivity: Instantly pair and play music from your smartphone or tablet with Bluetooth 5.0, perfect for quick access and guests.
• Voice Control Compatible: Supports Alexa, Siri, and Google Assistant, enabling hands-free control of your audio system.

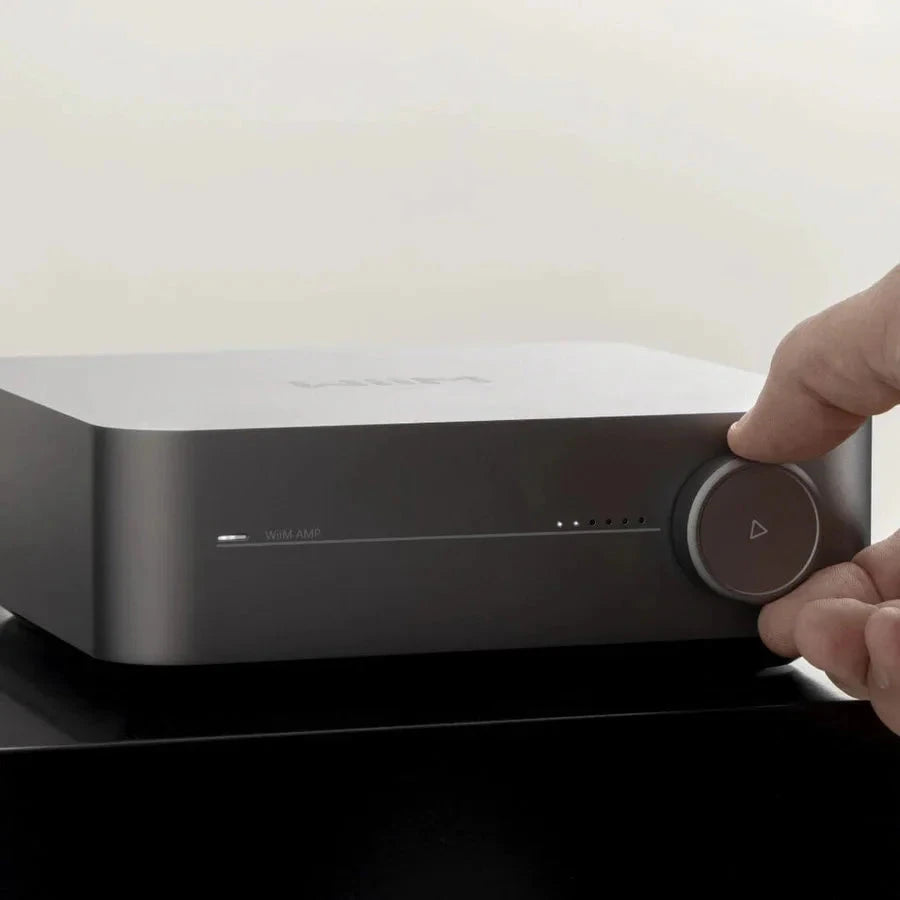

• Compact, Stylish Design: Sleek aluminium casing with intuitive touch controls looks great in any setting and fits effortlessly into modern home aesthetics.
• Premium In-Ceiling Speakers: The OSD Audio R63 speakers feature a 6.5" polypropylene woofer and 1" pivoting silk dome tweeter, delivering crisp highs and deep, controlled bass.
• Paintable Grilles for Discreet Installation: Match your ceiling for a seamless look that blends in with your décor.
• Optimised Crossover Design: Precision crossover ensures smooth frequency response and accurate sound reproduction across all volume levels.
• Easy Installation: Spring-loaded mounting clips and a shallow depth make it simple to install in most ceiling spaces, even with limited clearance.
• Perfect for Any Room: Suitable for kitchens, bedrooms, lounges, or offices – this bundle brings high-quality sound without taking up floor or shelf space.

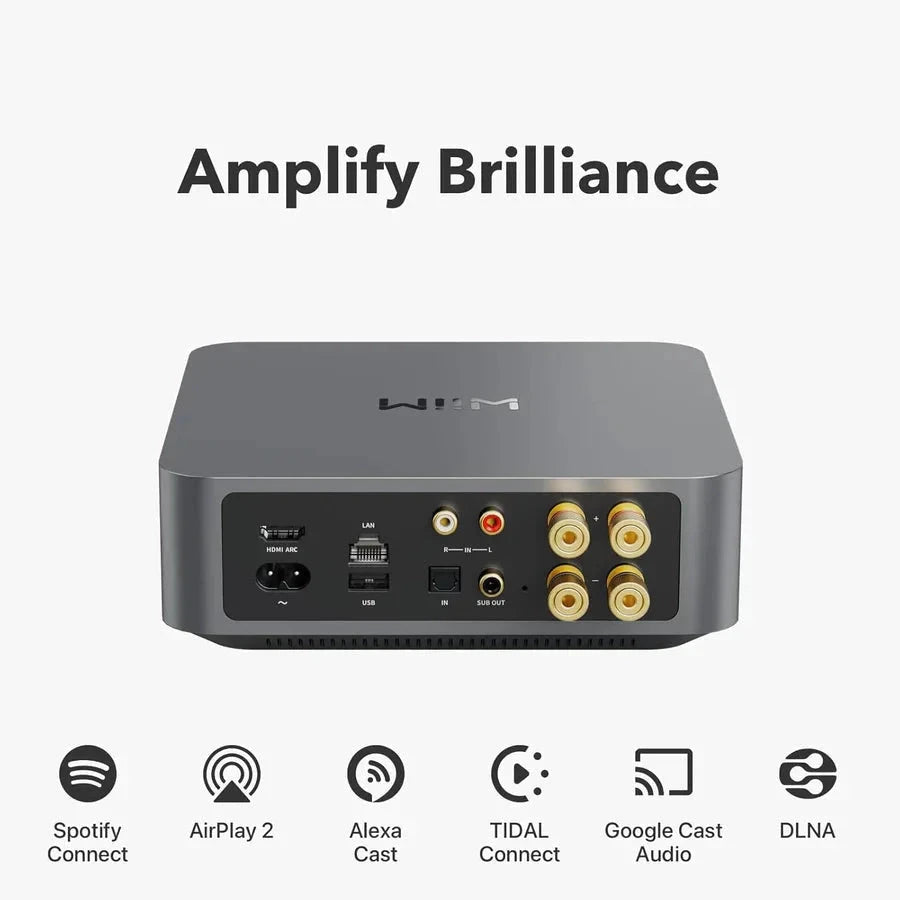

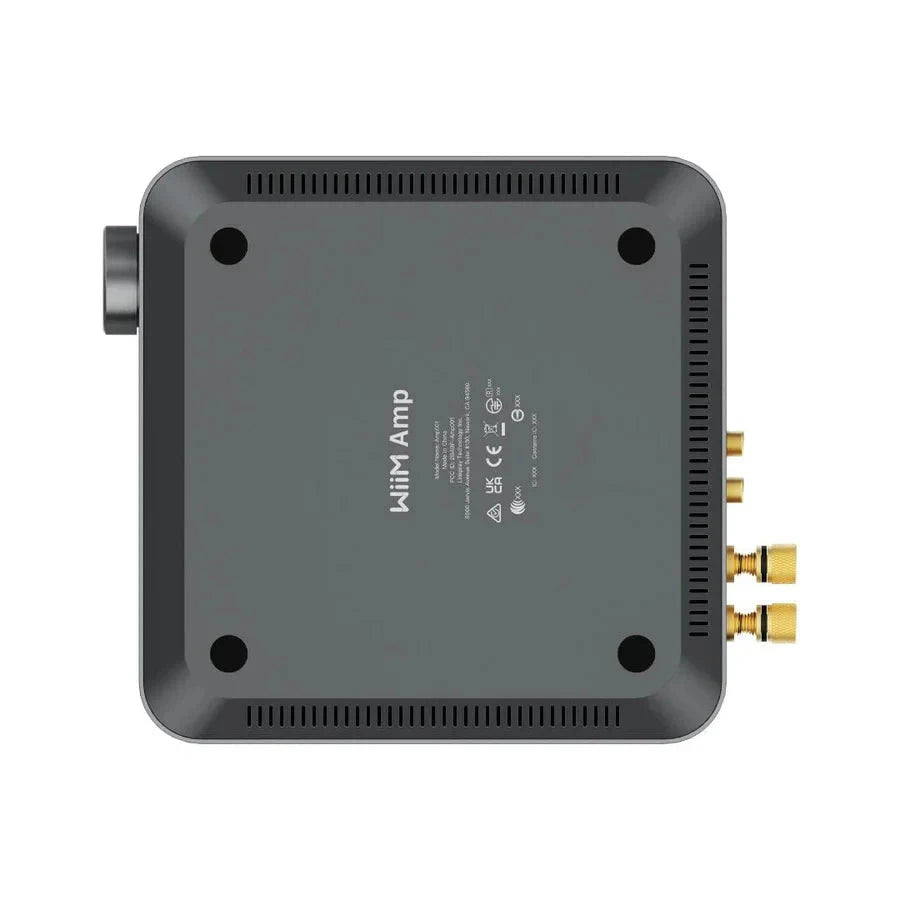

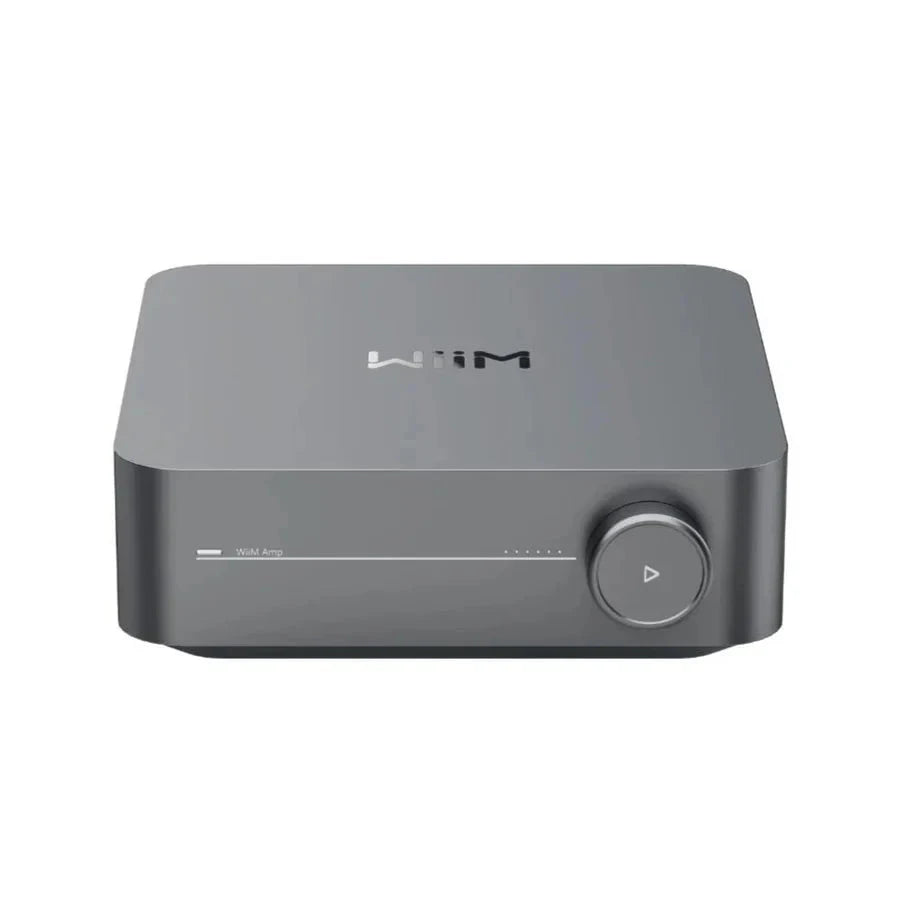

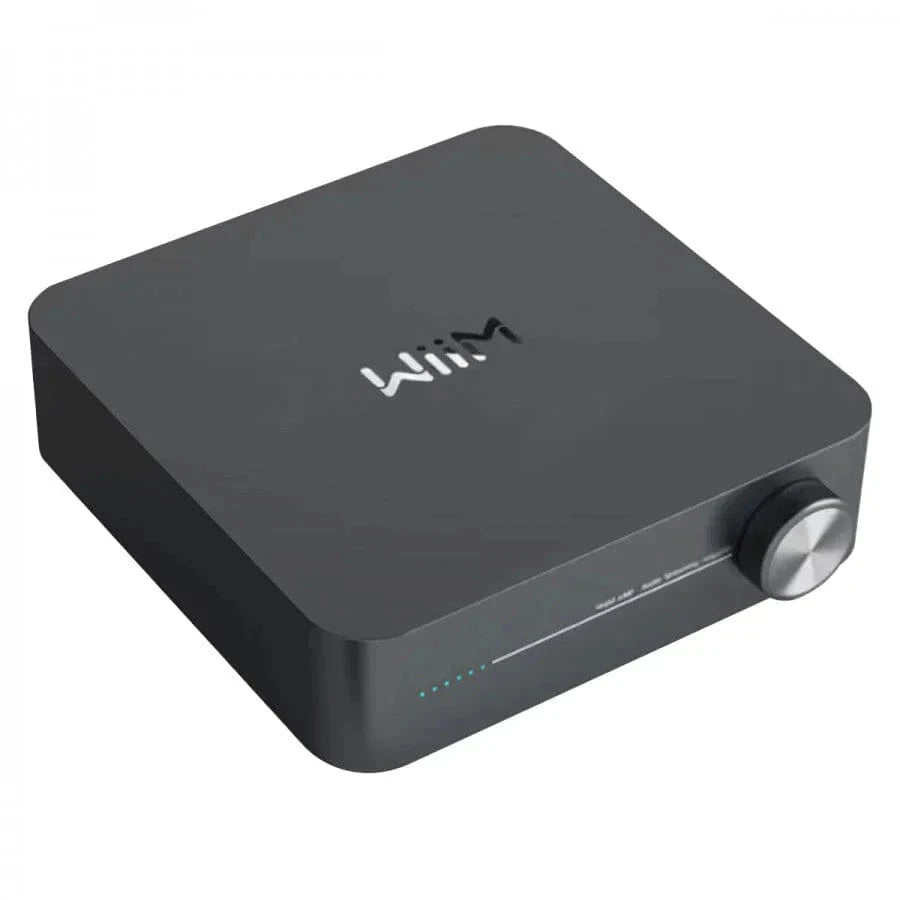

AMPLIFIER

• Supported Streaming Services: Spotify Connect, Tidal, Qobuz, Amazon Music, Deezer, and SoundCloud
• Apple AirPlay Support: AirPlay 2
• Roon Support: Roon Ready + Roon Tested
• Network Connectivity: Wi-Fi & Ethernet
• Amplifier Class: D
• Power Output (4Ω): 120 W
• Power Output (8Ω): 60 W
• Tone Control: Adaptive EQ and Graphic Equaliser built-in
• Signal To Noise Ratio: 108 dB
• THD + N: (-92dB) 0.0025 %
• RCA Input(s): Yes
• Bluetooth Input: Yes
• Bluetooth Version: 5.1
• HDMI Input(s): ARC Input
• Optical Input(s): 1
• DAC Chip: ESS 9018K2M
• File Limit Support (PCM): 24-bit, 192kHz
• Subwoofer Output(s): Yes

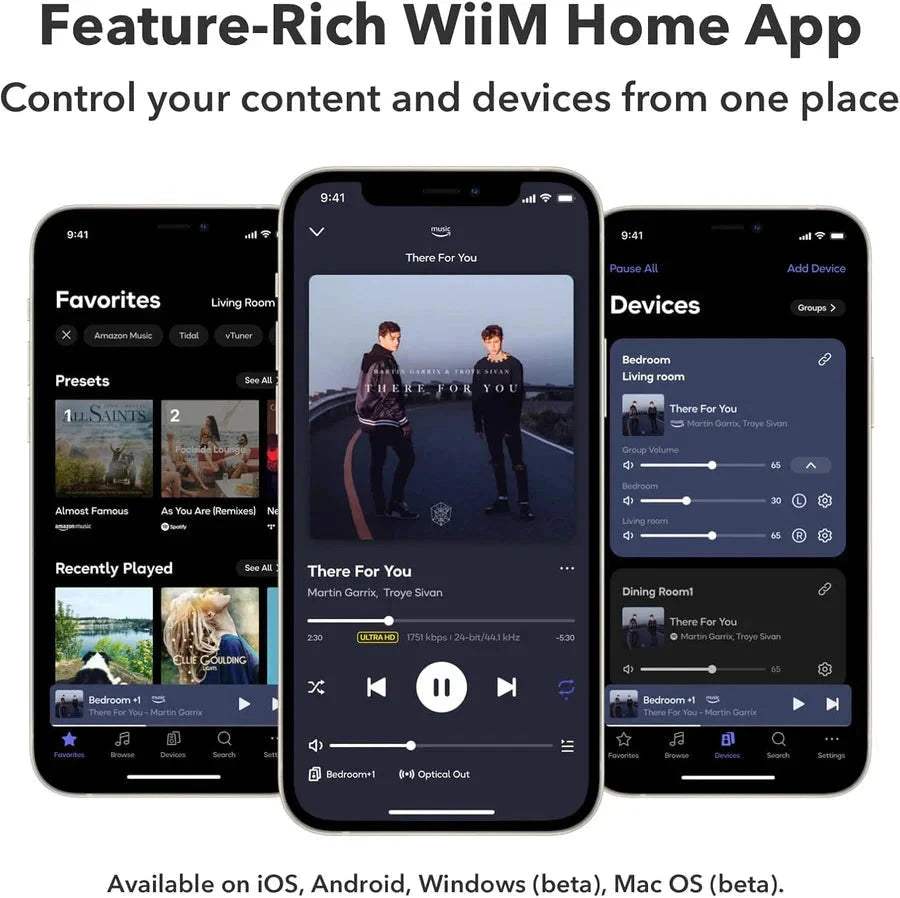

• App Control: WiiM Home
• Dimensions (W x H x D): 190 x 190 x 63mm
• Weight: 1.84 kg

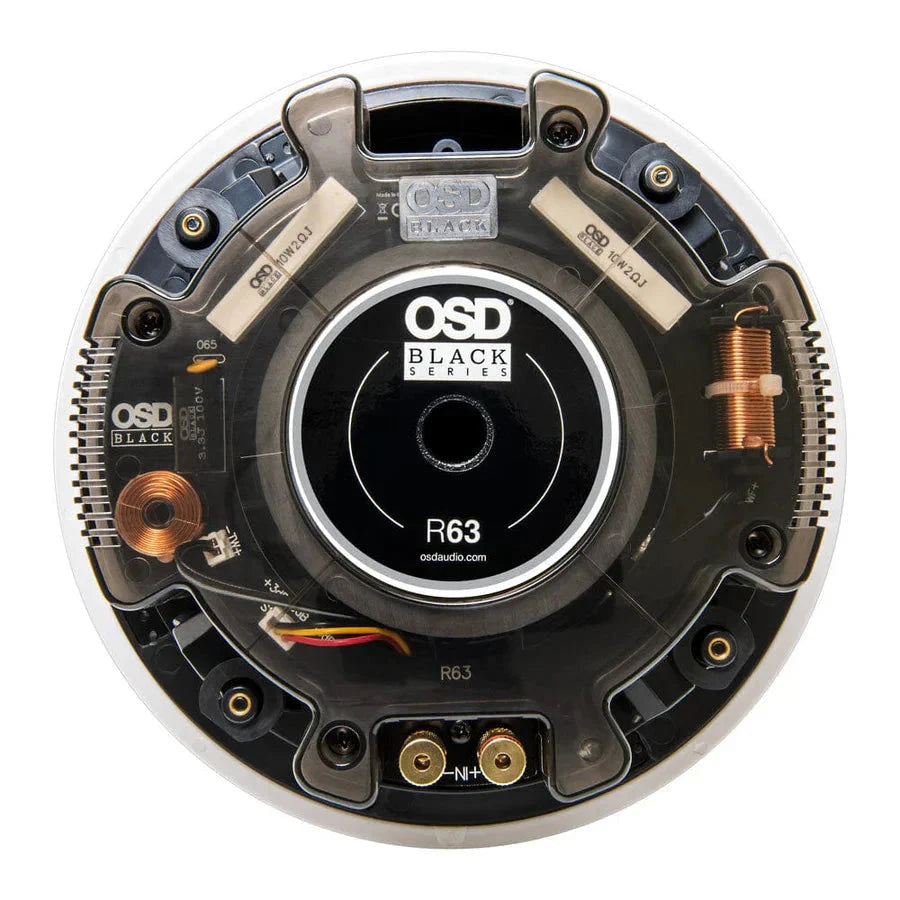

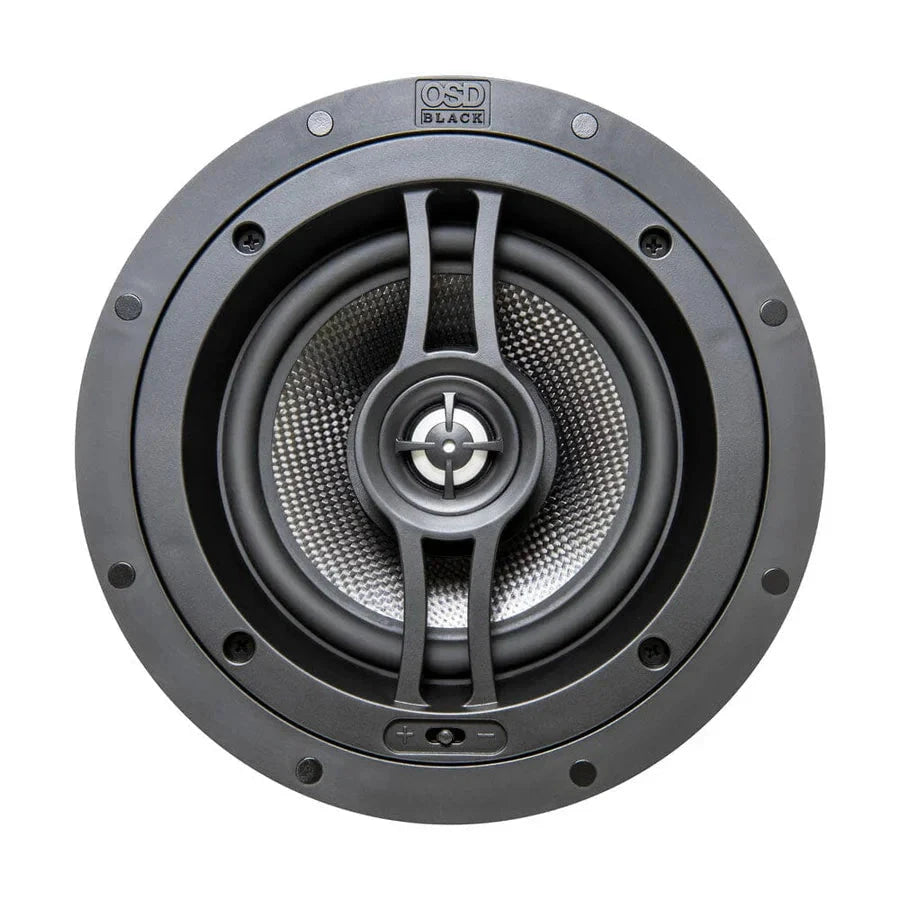

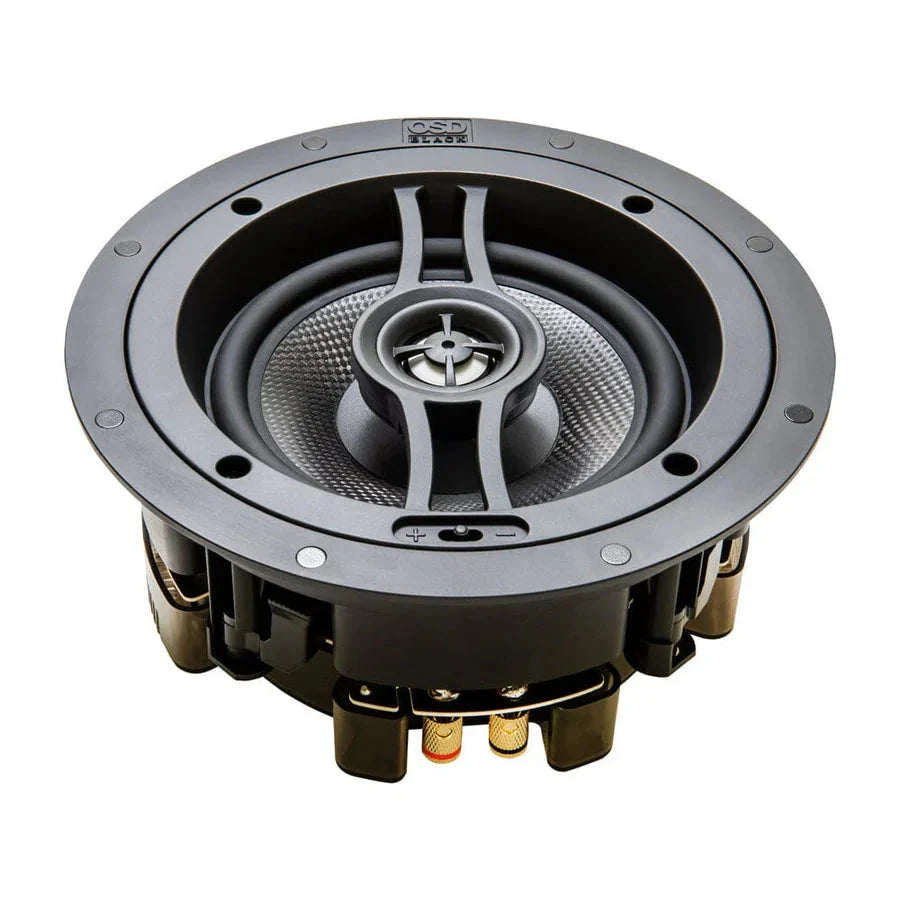

SPEAKERS

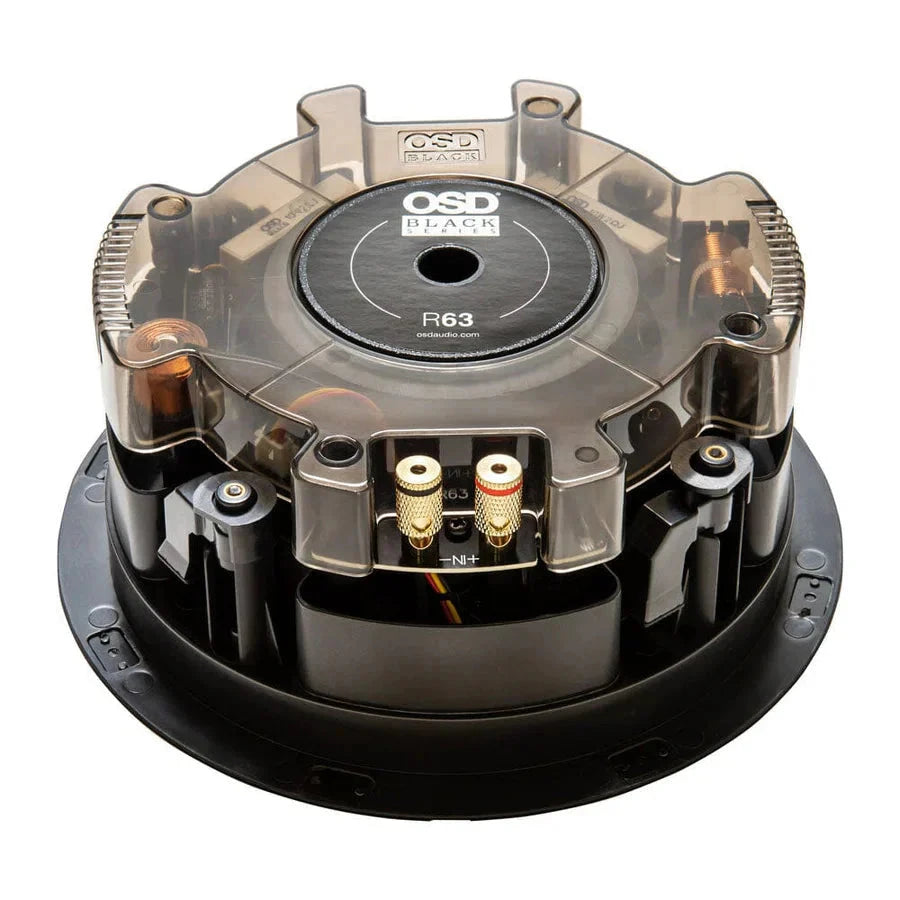

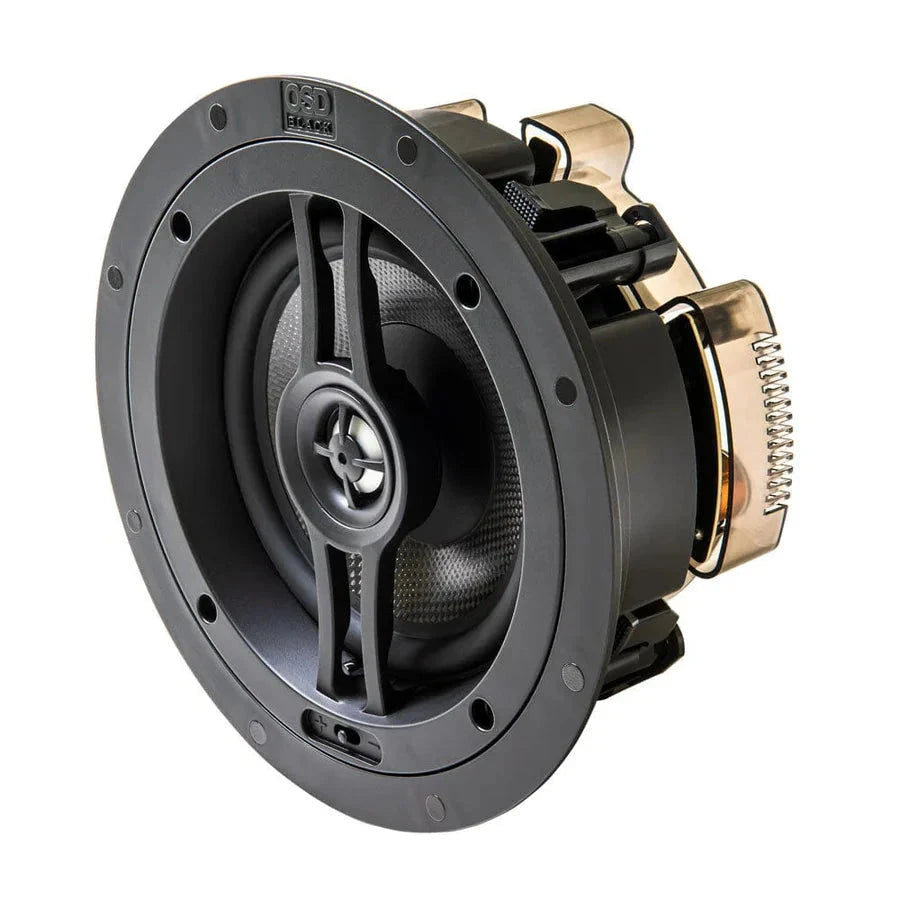

• Speaker Type: 6.5" In-Ceiling Speaker
• Woofer: 6.5" Carbon Fiber w/TPR Thermal Surround
• Tweeter: 1" Ceramic Coated Aluminum Pivoting Dome Tweeter w/12dB Crossover and Contour Switch
• Frequency Response: 38Hz - 20kHz
• Power: 150W
• Sensitivity: 89dB
• Impedance: 8 Ohm
• Diameter & Depth: 8.76" x 3.62"
• Cutout Diameter: 7.8"
• Selling Unit: Pair
• Optional Square-Grille Kit: Sold Separately
• Warranty: Limited Lifetime

AMPLIFIER

• 1 x WiiM Amp
• 1 x RCA Audio Cable
• 1 x Optical Audio Cable
• 1 x HDMI Cable
• 1 x Remote Control
• 1 x Power Cable
• 1 x Quick Start Guide

SPEAKERS (ONE PAIR OPTION)

• 2 x R63 6.5" Ceiling Speakers
• 2 x White Grilles
• 1 x Cut Out Template
• 1 x User Manual
• 20m x 2 Core Speaker Cable

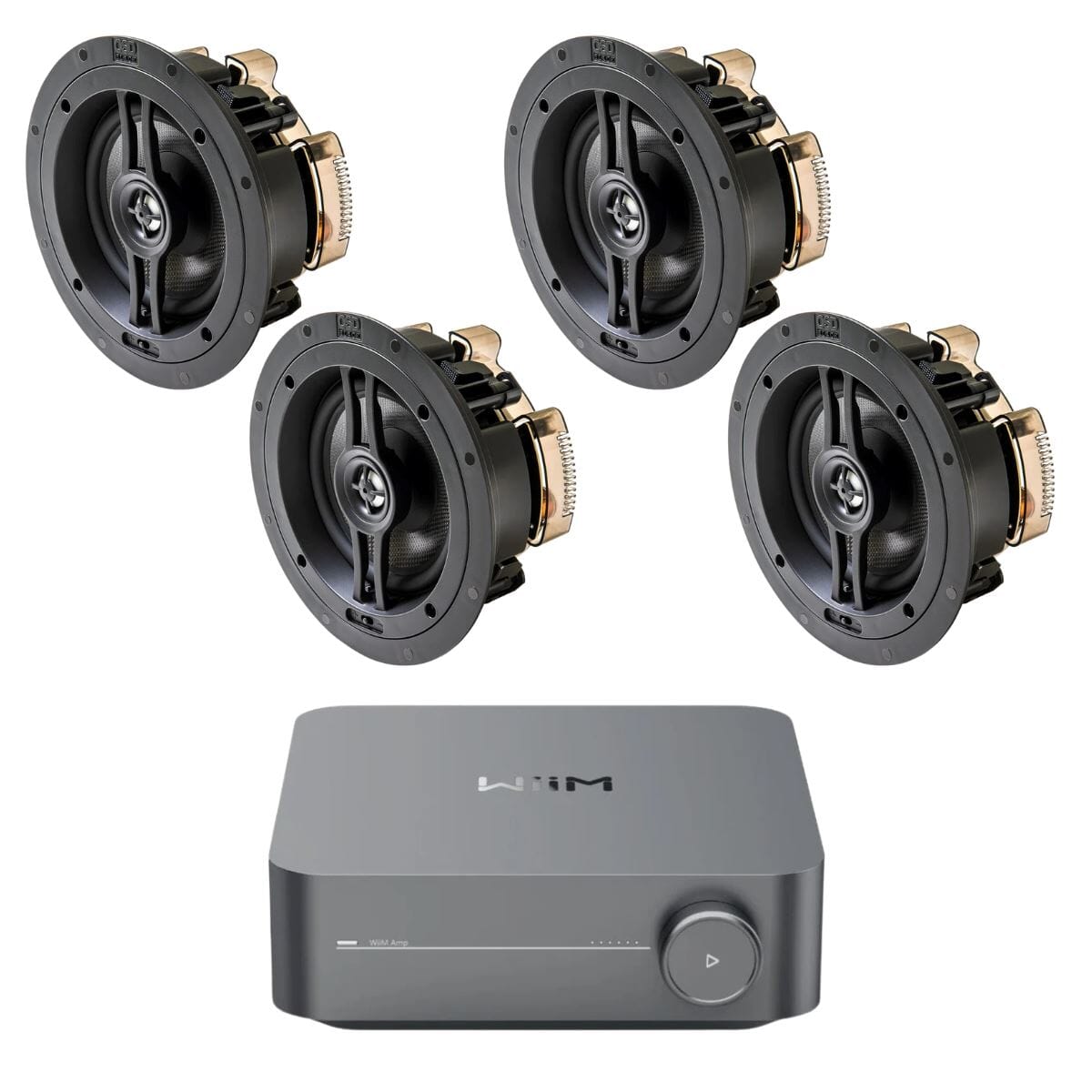

SPEAKERS (TWO PAIRS OPTION)

• 4 x OSD Audio R63 6.5" Ceiling Speakers
• 4 x White Grilles
• 1 x Cut Out Template
• 1 x User Manual
• 30m x 2 Core Speaker Cable
