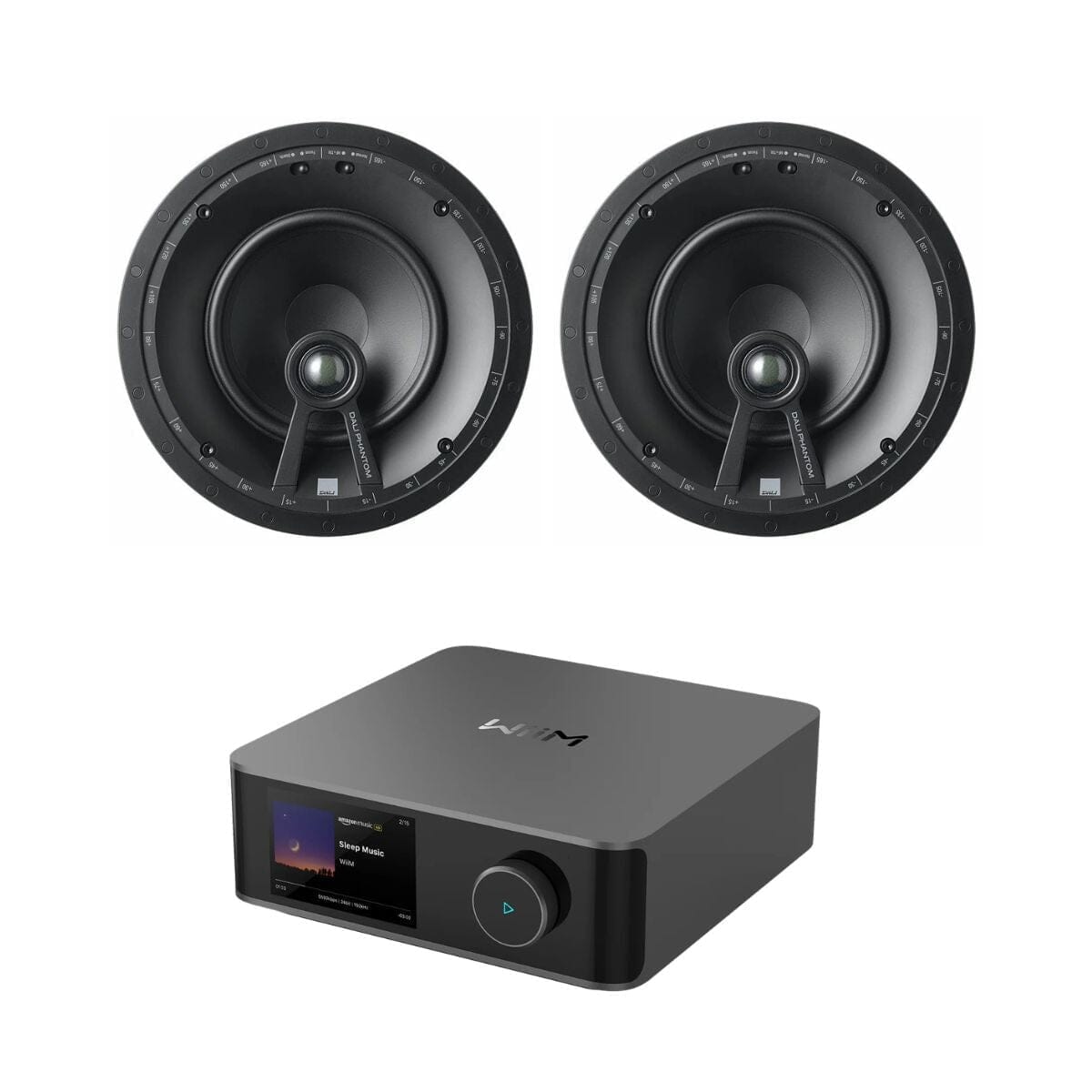

WiiM AMP Ultra 100W Streaming Amplifier + DALI Phantom E-60 6.5" Ceiling Speakers
WiiM AMP Ultra 100W Streaming Amplifier + DALI Phantom E-60 6.5" Ceiling Speakers is backordered and will ship as soon as it is back in stock.
WiiM AMP Ultra 100W Streaming Amplifier + DALI Phantom E-60 6.5&quo...
WiiM AMP Ultra 100W Streaming Amplifier + DALI Phantom E-60 6.5" Ceiling Speakers is backordered and will ship as soon as it is back in stock.
Description
Description
Enjoy powerful, discreet audio throughout your home with the WiiM AMP Ultra and DALI Phantom E-60 ceiling speaker system.
This bundle combines advanced wireless streaming with high-quality in-ceiling speakers, creating a clean and modern music solution for living rooms, kitchens, bedrooms, and open-plan spaces.
With the speakers installed flush in the ceiling, you get impressive sound performance without visible speakers or clutter.

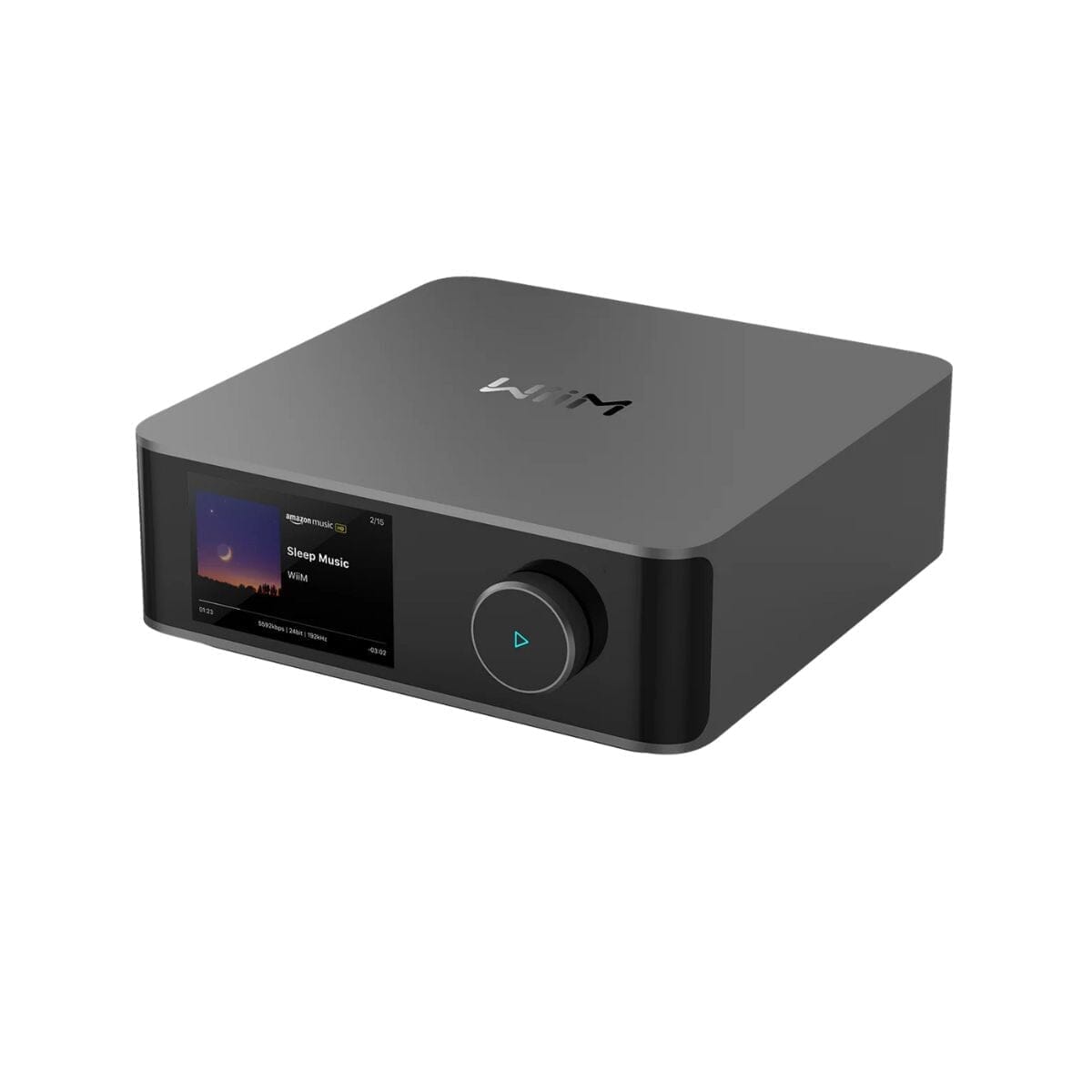

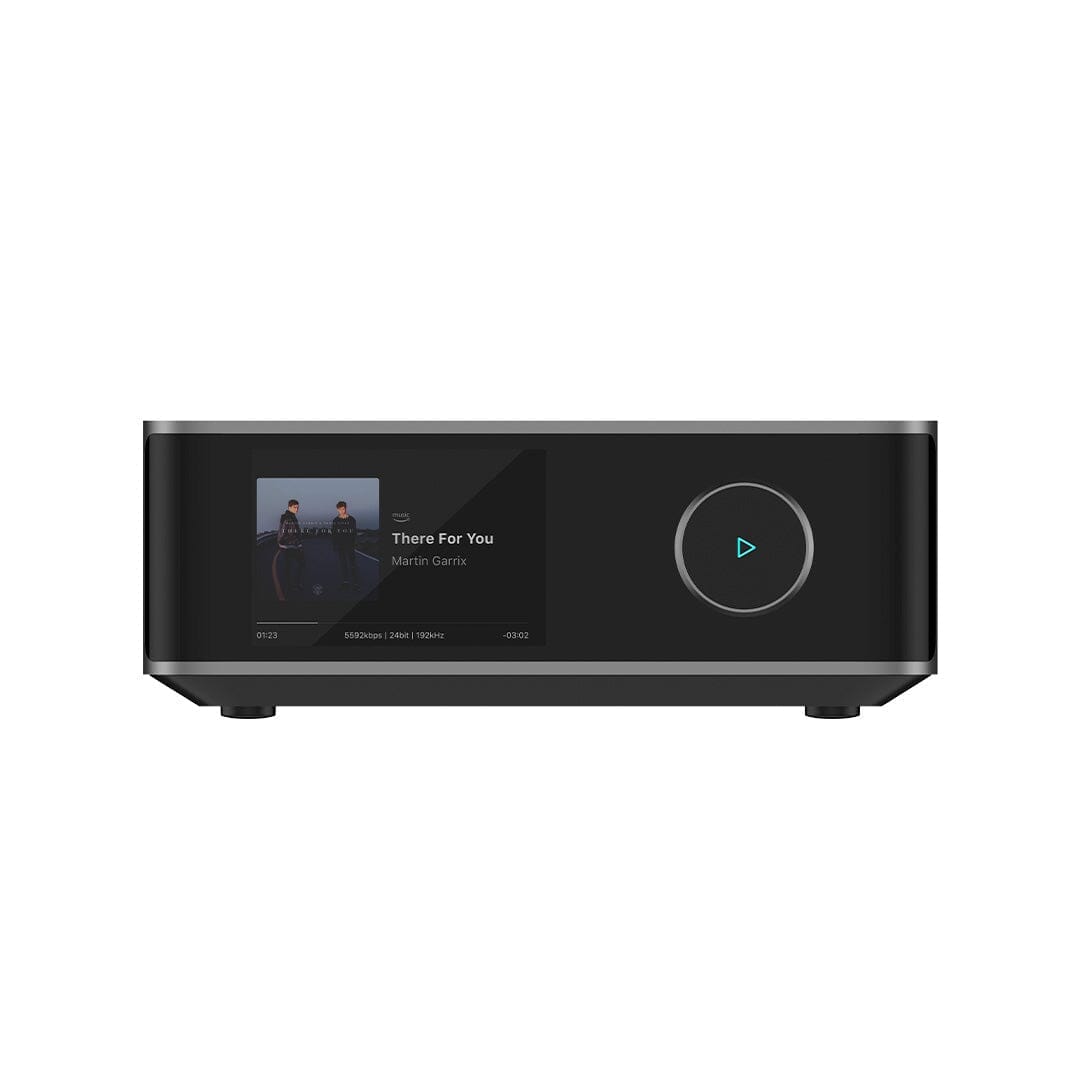

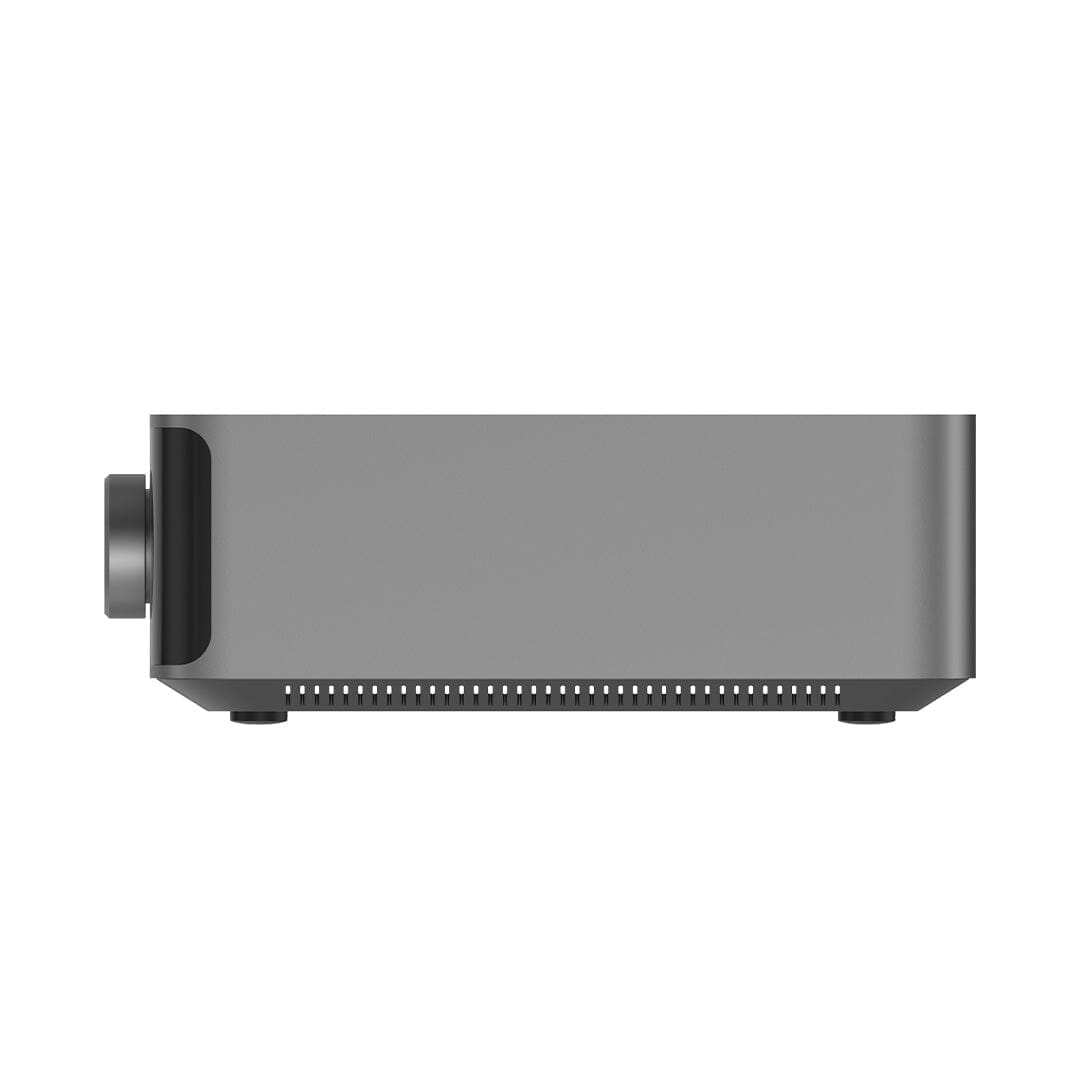

The WiiM AMP Ultra provides strong amplification along with modern connectivity including Wi-Fi streaming, Bluetooth, and HDMI ARC for TV audio.
Paired with the DALI Phantom E-60 ceiling speakers, the system delivers balanced, room-filling sound with clear highs and controlled bass, making it ideal for both background music and immersive everyday listening.
FEATURES
- Wi-Fi Music Streaming: Stream music directly from services such as Spotify, TIDAL, Amazon Music, and more using the WiiM Home app or compatible streaming platforms.
- Bluetooth Connectivity: Quickly connect smartphones, tablets, or laptops using Bluetooth for easy wireless music playback.
- HDMI ARC Input For TV: Connect your television via HDMI ARC to play TV audio through the ceiling speakers for a cleaner living room setup.
- Powerful Amplifier Performance: The WiiM AMP Ultra delivers strong, efficient amplification that drives the ceiling speakers with clarity and detail.

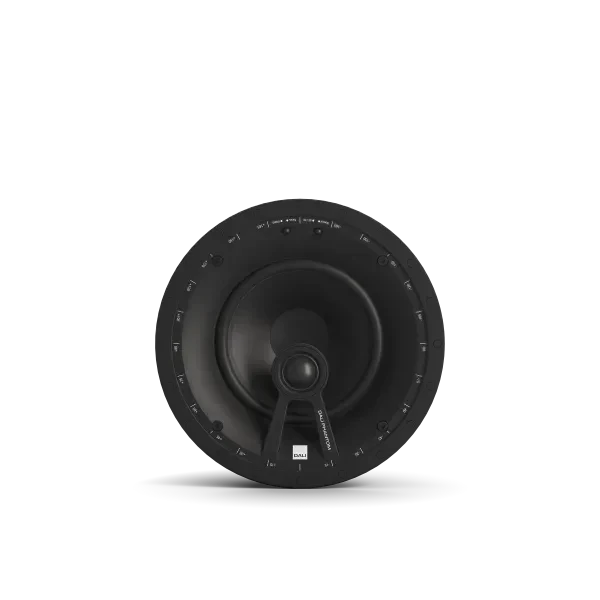

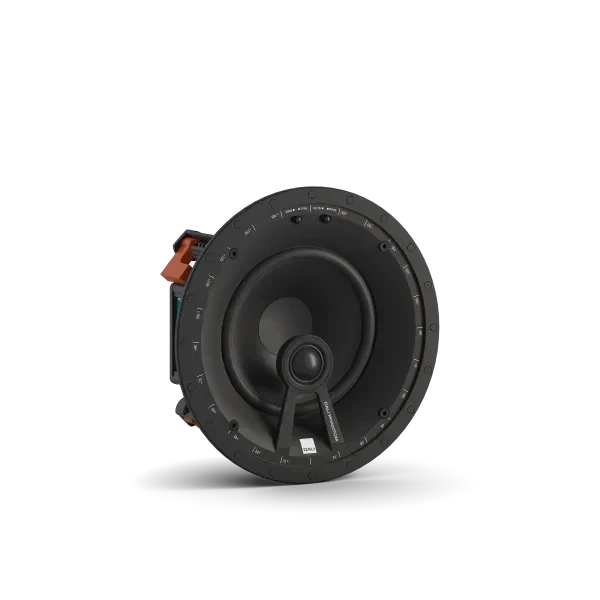

- 6.5-Inch Hi-Fi Ceiling Speakers: The DALI Phantom E-60 speakers feature 6.5-inch woofers and soft dome tweeters for balanced sound with natural midrange and controlled bass.
- Wide Dispersion Sound: DALI’s wide dispersion technology spreads sound evenly throughout the room, providing consistent audio coverage.

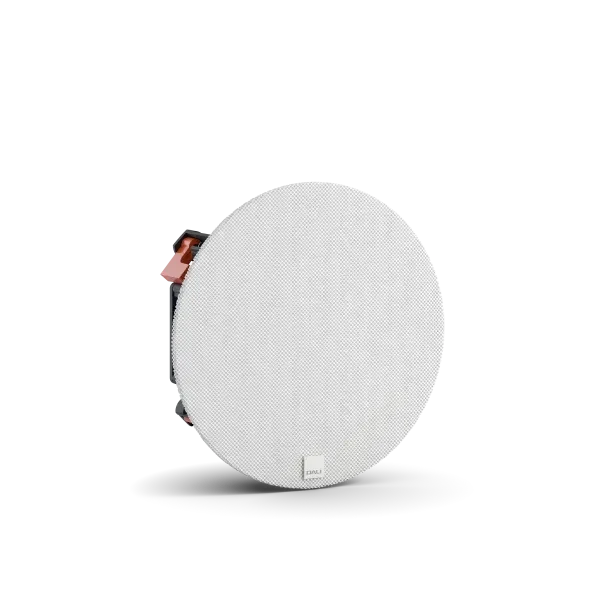

- Discreet Flush Ceiling Installation: The low-profile magnetic grilles sit flush with the ceiling and can be painted to match your décor for a nearly invisible finish.
- App Control And Multi-Room Ready: Control playback, volume, and inputs using the WiiM Home app, with the option to expand into a multi-room audio system.
Specifications
Specifications

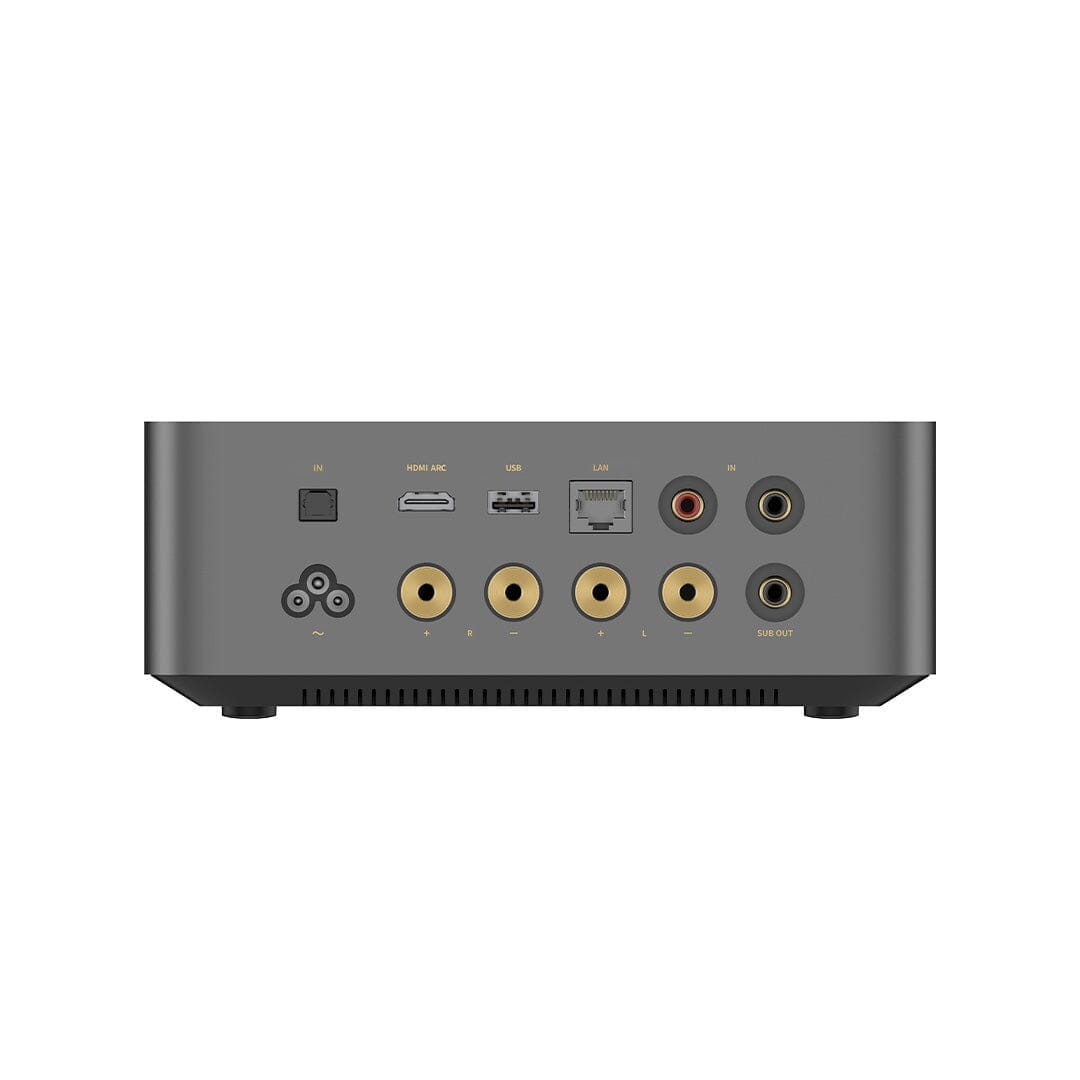

AMPLIFIER
- Supported Streaming Services: Spotify Connect, Tidal, Qobuz, Amazon Music, Deezer, and SoundCloud
- Apple AirPlay Support: AirPlay 2
- Roon Support: Roon Ready + Roon Tested
- Network Connectivity: Wi-Fi & Ethernet
- Amplifier Class: D
- Power Output (4Ω): 120 W
- Power Output (8Ω): 60 W
- Tone Control: Adaptive EQ and Graphic Equaliser built-in
- Signal To Noise Ratio: 108 dB
- THD + N: (-92dB) 0.0025 %
- RCA Input(s): Yes
- Bluetooth Input: Yes
- Bluetooth Version: 5.1
- HDMI Input(s): ARC Input
- Optical Input(s): 1
- DAC Chip: ESS 9018K2M
- File Limit Support (PCM): 24-bit, 192kHz
- Subwoofer Output(s): Yes
- App Control: WiiM Home
- Dimensions (W x H x D): 190 x 190 x 63mm
- Weight: 1.84 kg

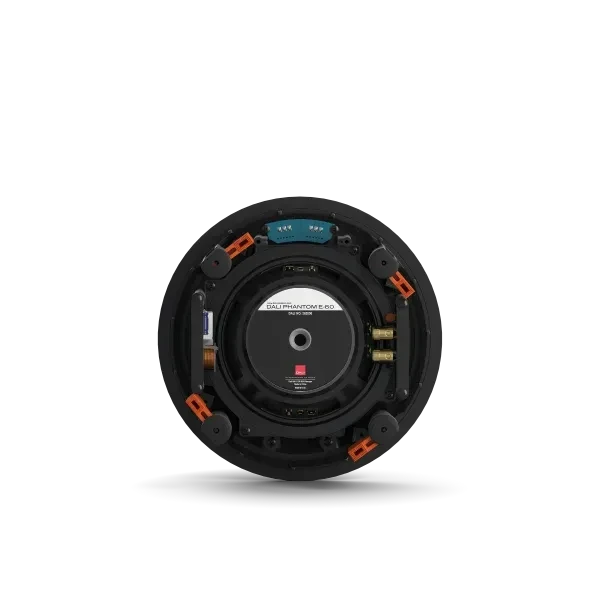

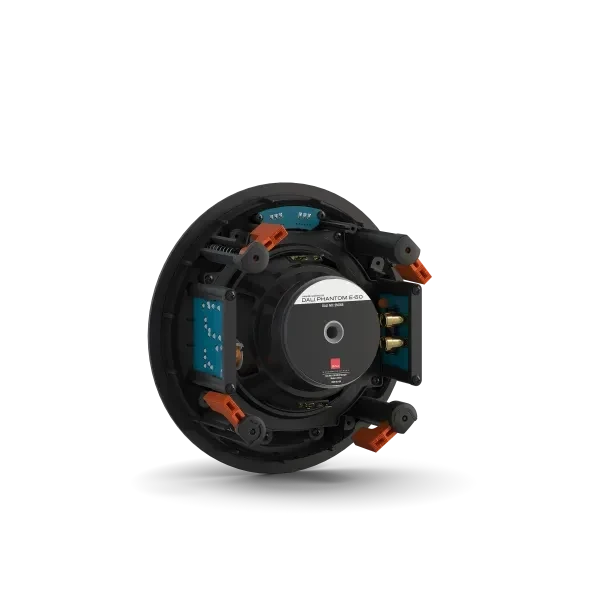

SPEAKERS
- Frequency Range: 52–25,000 Hz ±3 dB
- Sensitivity: 88 dB @ 1m (2.83V)
- Nominal Impedance: 8 ohm
- Maximum SPL: 105 dB
- Crossover Frequency: 3,300 Hz
- Crossover Principle: 2-way
- Recommended Amplifier Power: 30–120 W
- High Frequency Driver: 1 × 25mm soft dome
- High Frequency Diaphragm: Soft woven fabric
- Low/Mid Frequency Driver: 1 × 6.5"
- Low/Mid Frequency Diaphragm: Polypropylene
- Connection Input: Single wire
- Enclosure Type: Open back
- Other Features: Normal/High+, Normal/Mid+
- Installation Location: In-ceiling / In-wall
- Recommended Placement: Ceiling / Front / Centre / Surround
- IP Rating: N/A
- Outer Dimensions (Incl. Grille): Ø258 × 104mm
- Outer Dimensions (Excl. Grille): Ø242 × 100mm
- Cut-out Dimensions: Ø225mm
- Mounting Depth: 96mm
- Recommended Rear Volume (Backbox): 5–50 litres
- Optimum Rear Volume: 15 litres
- Ceiling/Wall Thickness (Dog-leg Span): 10–70mm
- Weight (Incl. Grille): 2 kg
- Shipping Weight: 3 kg
- Finish: White
- Accessories: Manual, Cut-out template, Front grille, Logo badge
- Optional Accessories: Classic, Square and Design grilles, Pre-construction kit, PHANTOM UNIVERSAL 25 backbox
What You Get
What You Get
AMPLIFIER
- 1 x WiiM Amp
- 1 x RCA Audio Cable
- 1 x Optical Audio Cable
- 1 x HDMI Cable
- 1 x Remote Control
- 1 x Power Cable
- 1 x Quick Start Guide
SPEAKERS
- 2 x Ceiling Speakers
- 2 x Grilles
- 2 x Cut Out Template
- 1 x User Manual
- 20m x Speaker Cable
