WiiM AMP Ultra 100W Streaming Amplifier + DALI Phantom E-60 S 6.5" Stereo Ceiling Speaker
WiiM AMP Ultra 100W Streaming Amplifier + DALI Phantom E-60 S 6.5" Stereo Ceiling Speaker is backordered and will ship as soon as it is back in stock.
WiiM AMP Ultra 100W Streaming Amplifier + DALI Phantom E-60 S 6.5&q...
WiiM AMP Ultra 100W Streaming Amplifier + DALI Phantom E-60 S 6.5" Stereo Ceiling Speaker is backordered and will ship as soon as it is back in stock.
Description
Description

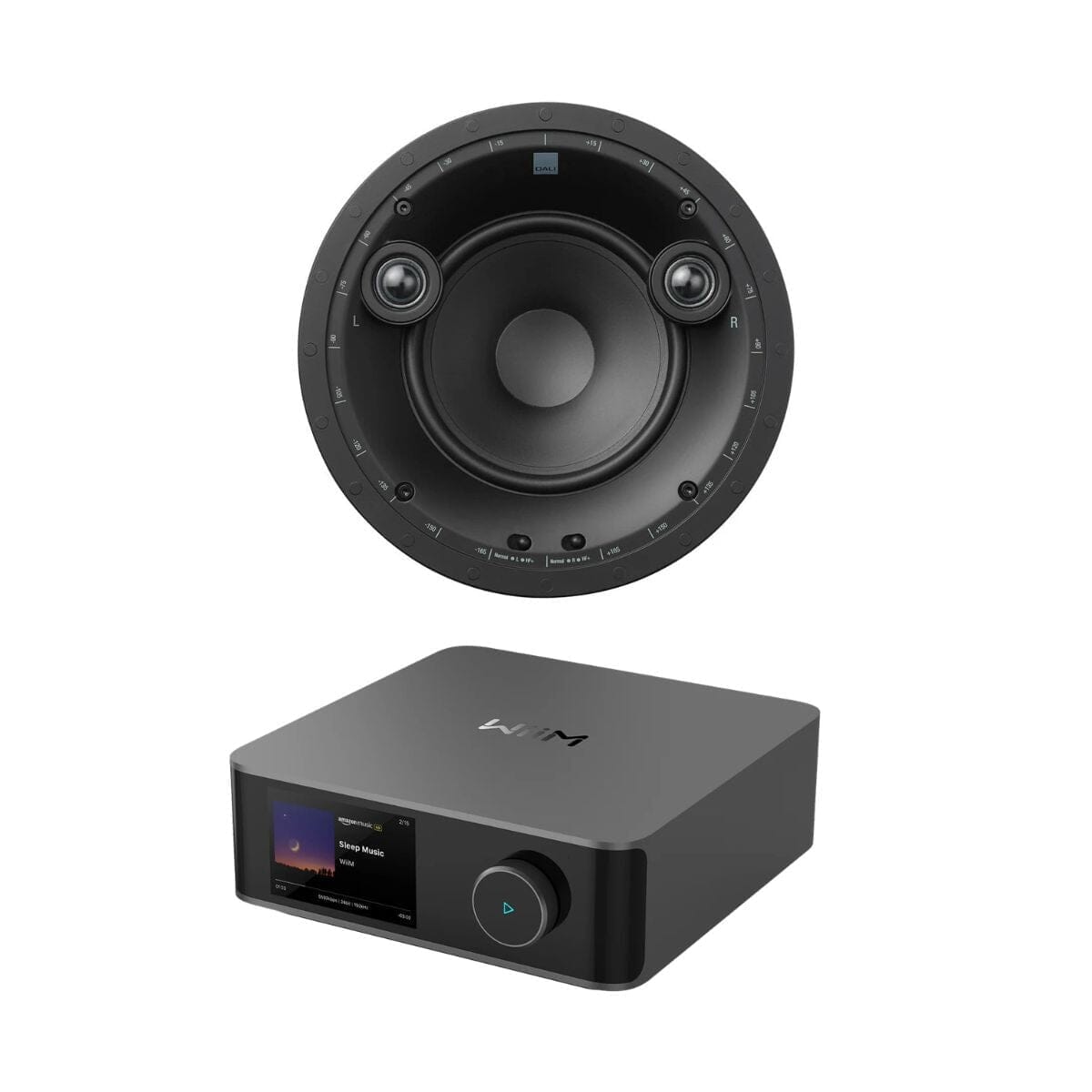

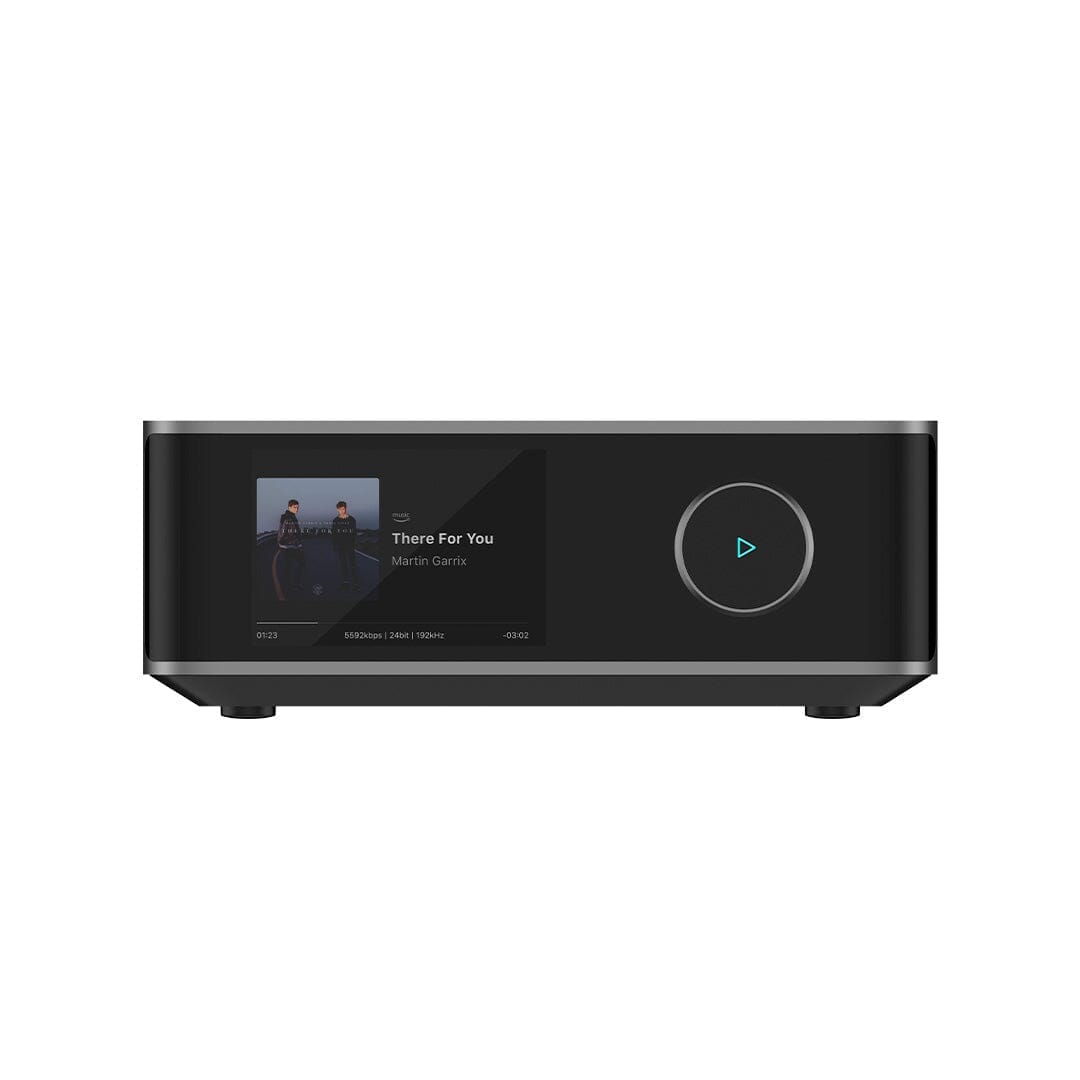

The WiiM AMP Ultra paired with the DALI Phantom E-60 S stereo ceiling speaker creates a discreet, high-quality music system that delivers true stereo sound from a single ceiling speaker.
Ideal for kitchens, bathrooms, bedrooms, and offices, this system provides powerful amplification, modern wireless streaming, and a clean in-ceiling installation that blends seamlessly with your décor.

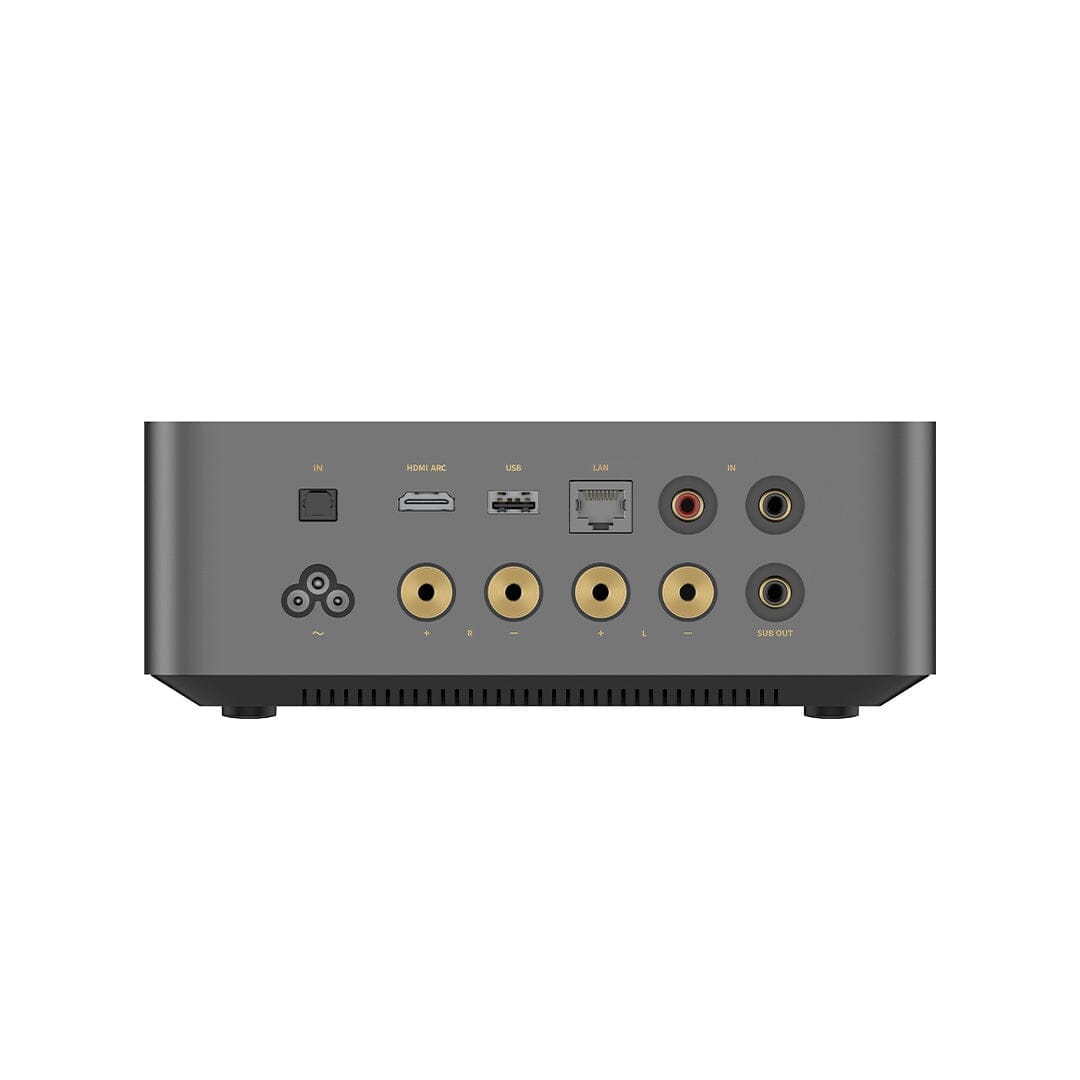

The WiiM AMP Ultra offers flexible connectivity including Wi-Fi streaming, Bluetooth, HDMI ARC for TV audio, and app-based control.
Combined with the DALI Phantom E-60 S, which produces both left and right channels from one speaker, the system provides clear, balanced audio while keeping installation simple and unobtrusive.
FEATURES
- Wi-Fi Music Streaming: Stream music from popular services including Spotify, TIDAL, Amazon Music, and more using the WiiM Home app or compatible streaming platforms.
- Bluetooth Streaming: Quickly connect smartphones, tablets, or laptops via Bluetooth for easy wireless music playback.
- HDMI ARC Input For TV: Connect your television using HDMI ARC to enjoy improved sound for TV, films, and streaming content through your ceiling speaker system.

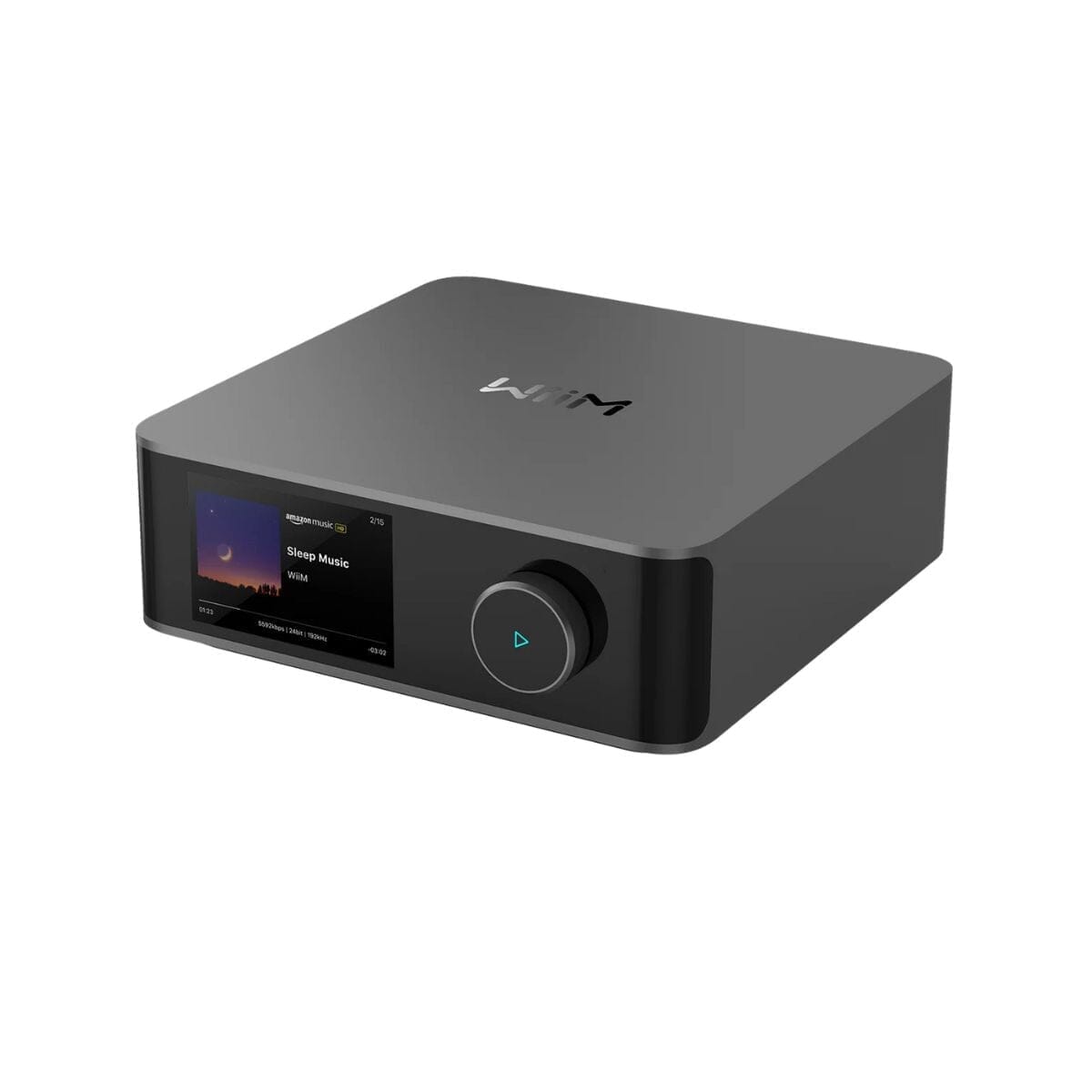

- Powerful Amplifier Performance: The WiiM AMP Ultra provides strong and efficient amplification to deliver clear, dynamic sound throughout the room.

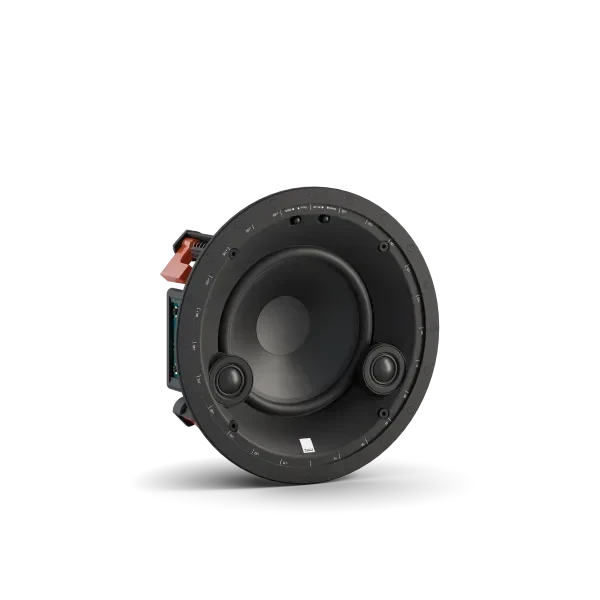

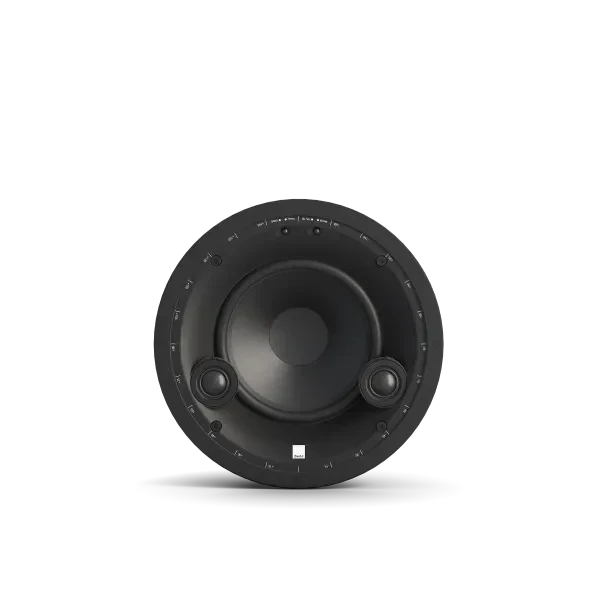

- Single Speaker Stereo Sound: The DALI Phantom E-60 S features dual tweeters that reproduce both left and right audio channels from one ceiling speaker, perfect for rooms where installing two speakers is not practical.
- 6.5-Inch Woofer For Full Sound: The dedicated bass driver delivers balanced midrange and controlled low frequencies, ensuring music sounds rich and natural.

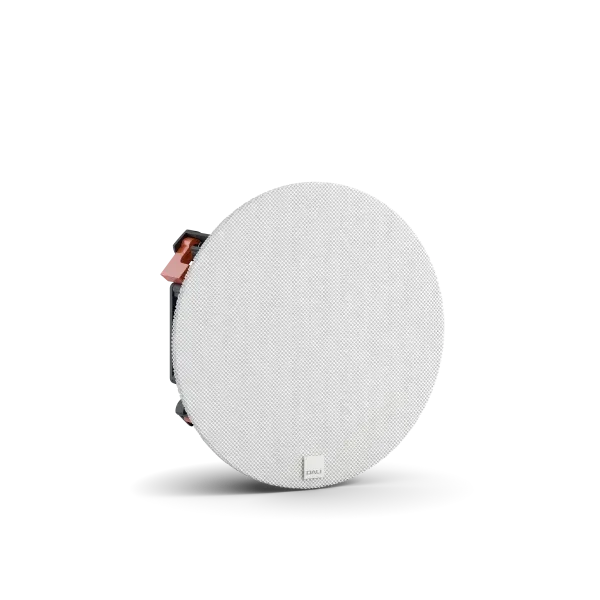

- Discreet Ceiling Installation: The low-profile magnetic grille sits flush with the ceiling and can be painted to match your décor for a clean, minimalist appearance.
- App Control And Smart Integration: Control volume, inputs, and streaming services directly from the WiiM Home app, with the option to integrate into multi-room audio systems.
Specifications
Specifications
AMPLIFIER
- Supported Streaming Services: Spotify Connect, Tidal, Qobuz, Amazon Music, Deezer, and SoundCloud
- Apple AirPlay Support: AirPlay 2
- Roon Support: Roon Ready + Roon Tested
- Network Connectivity: Wi-Fi & Ethernet
- Amplifier Class: D
- Power Output (4Ω): 120 W
- Power Output (8Ω): 60 W
- Tone Control: Adaptive EQ and Graphic Equaliser built-in
- Signal To Noise Ratio: 108 dB
- THD + N: (-92dB) 0.0025 %
- RCA Input(s): Yes
- Bluetooth Input: Yes
- Bluetooth Version: 5.1
- HDMI Input(s): ARC Input
- Optical Input(s): 1
- DAC Chip: ESS 9018K2M
- File Limit Support (PCM): 24-bit, 192kHz
- Subwoofer Output(s): Yes
- App Control: WiiM Home

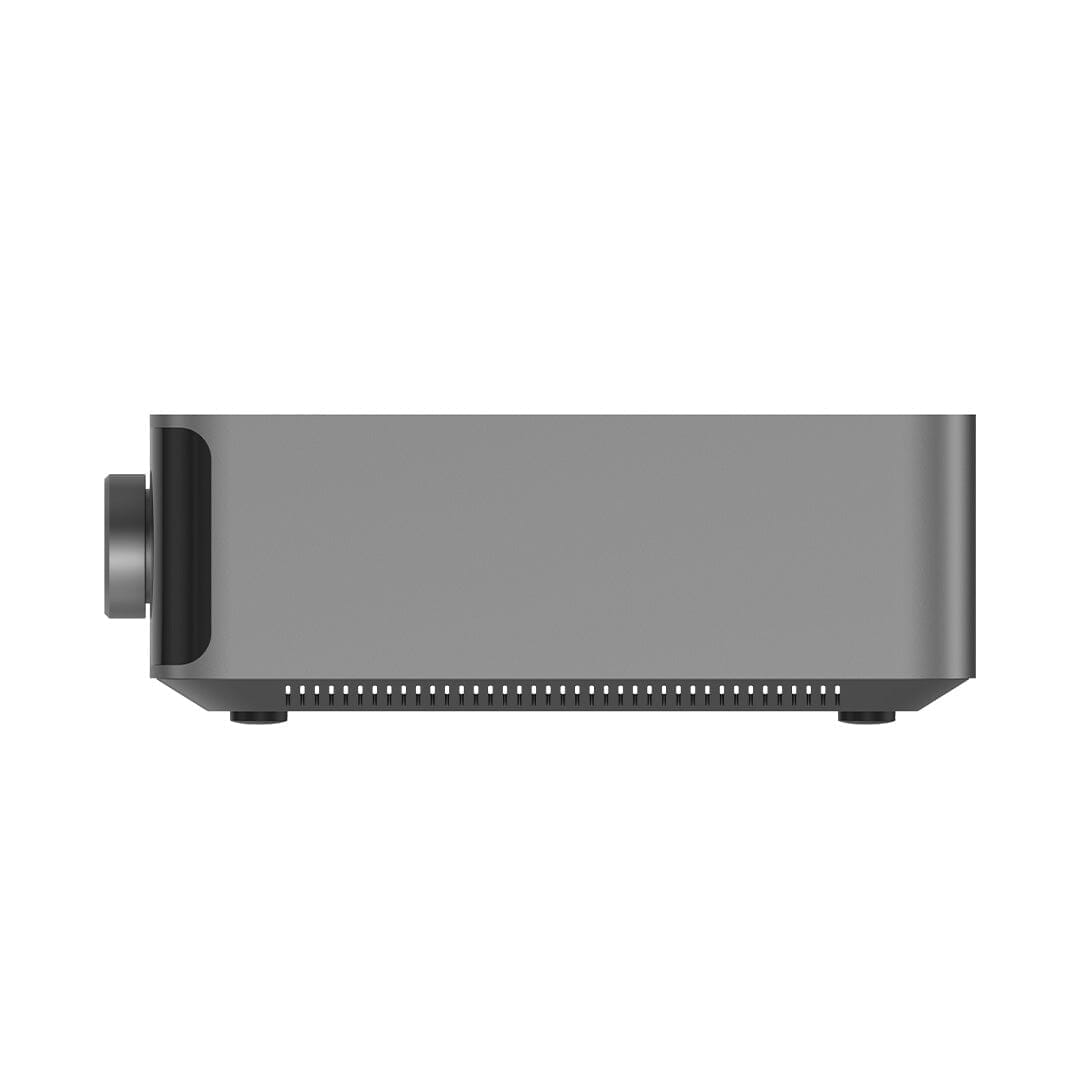

- Dimensions (W x H x D): 190 x 190 x 63mm
- Weight: 1.84 kg
SPEAKERS
- Frequency Range: 57–25,000 Hz ±3 dB
- Sensitivity: 90 dB @ 1m (2.83V, both channels)
- Nominal Impedance: 8 + 8 ohm
- Maximum SPL: 105 dB
- Crossover Frequency: 2,600 Hz
- Crossover Principle: 2+2-way
- Recommended Amplifier Power: 2 × 20–80 W
- High Frequency Driver: 2 × 20mm soft dome
- High Frequency Diaphragm: Soft woven fabric
- Low/Mid Frequency Driver: 1 × 6.5" dual voice coil
- Low/Mid Frequency Diaphragm: Polypropylene

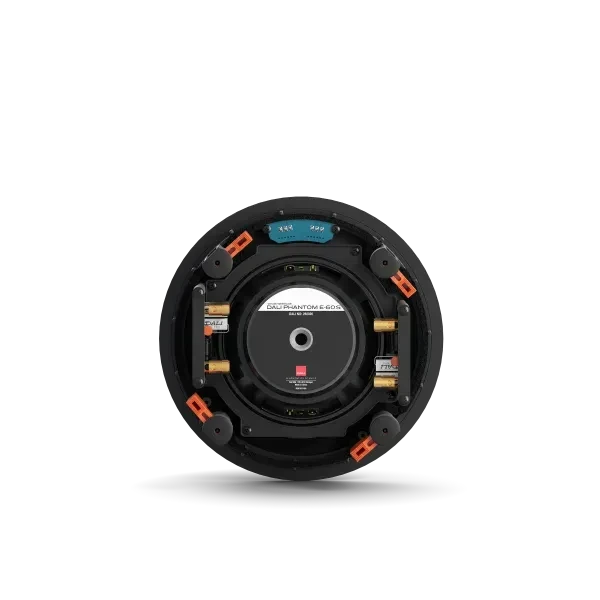

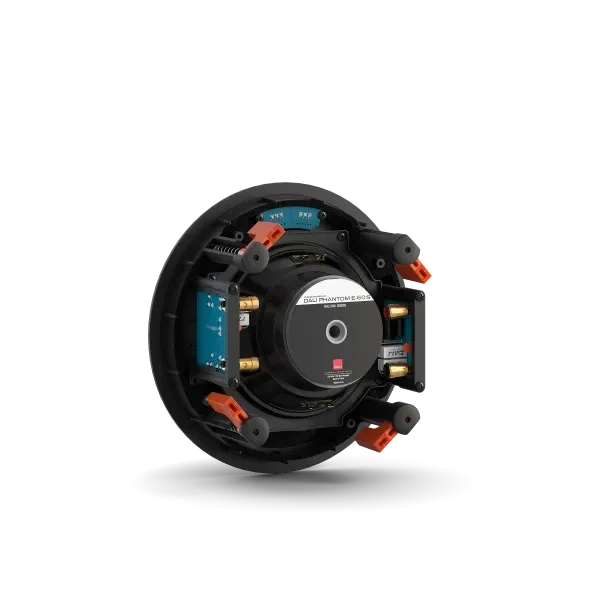

- Connection Input: 2 × Single wire
- Enclosure Type: Open back
- Other Features: Normal L High+, Normal R High+
- Installation Location: In-ceiling / In-wall
- Recommended Placement: Ceiling / Front / Centre / Surround
- IP Rating: N/A
- Outer Dimensions (Incl. Grille): Ø258 × 109mm
- Outer Dimensions (Excl. Grille): Ø242 × 105mm
- Cut-out Dimensions: Ø225mm
- Mounting Depth: 101mm
- Recommended Rear Volume (Backbox): 5–35 litres
- Optimum Rear Volume: 15 litres
- Ceiling/Wall Thickness (Dog-leg Span): 10–70mm
- Weight (Incl. Grille): 2 kg
- Shipping Weight: 3 kg
- Finish: White
- Accessories: Manual, Cut-out template, Front grille, Logo badge
- Optional Accessories: Classic, Square and Design grilles, Pre-construction kit, PHANTOM UNIVERSAL 25 backbox
What You Get
What You Get
AMPLIFIER
- 1 x WiiM Amp
- 1 x RCA Audio Cable
- 1 x Optical Audio Cable
- 1 x HDMI Cable
- 1 x Remote Control
- 1 x Power Cable
- 1 x Quick Start Guide
SPEAKERS
- 2 x Ceiling Speakers
- 2 x Grilles
- 2 x Cut Out Template
- 1 x User Manual
- 20m x Speaker Cable
